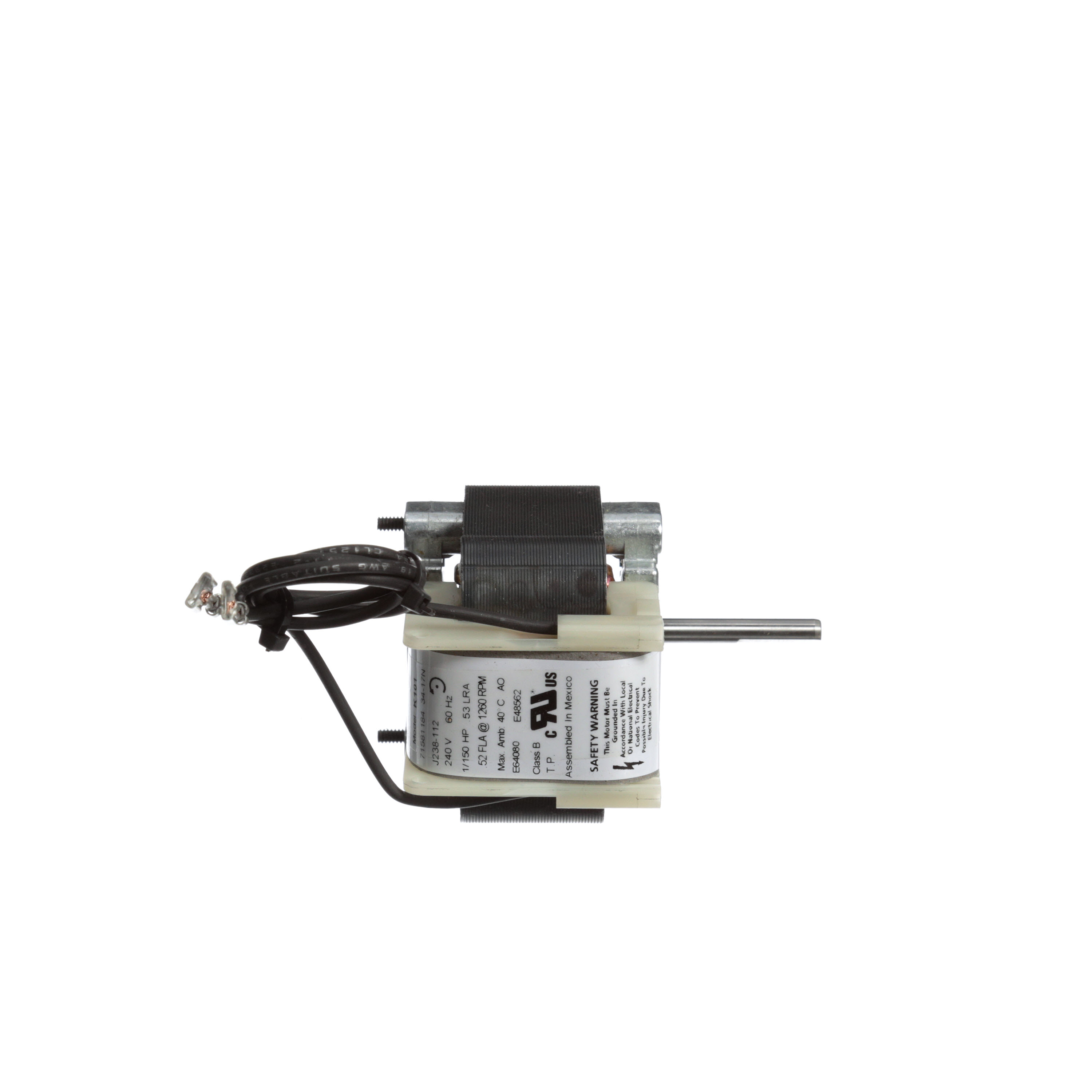

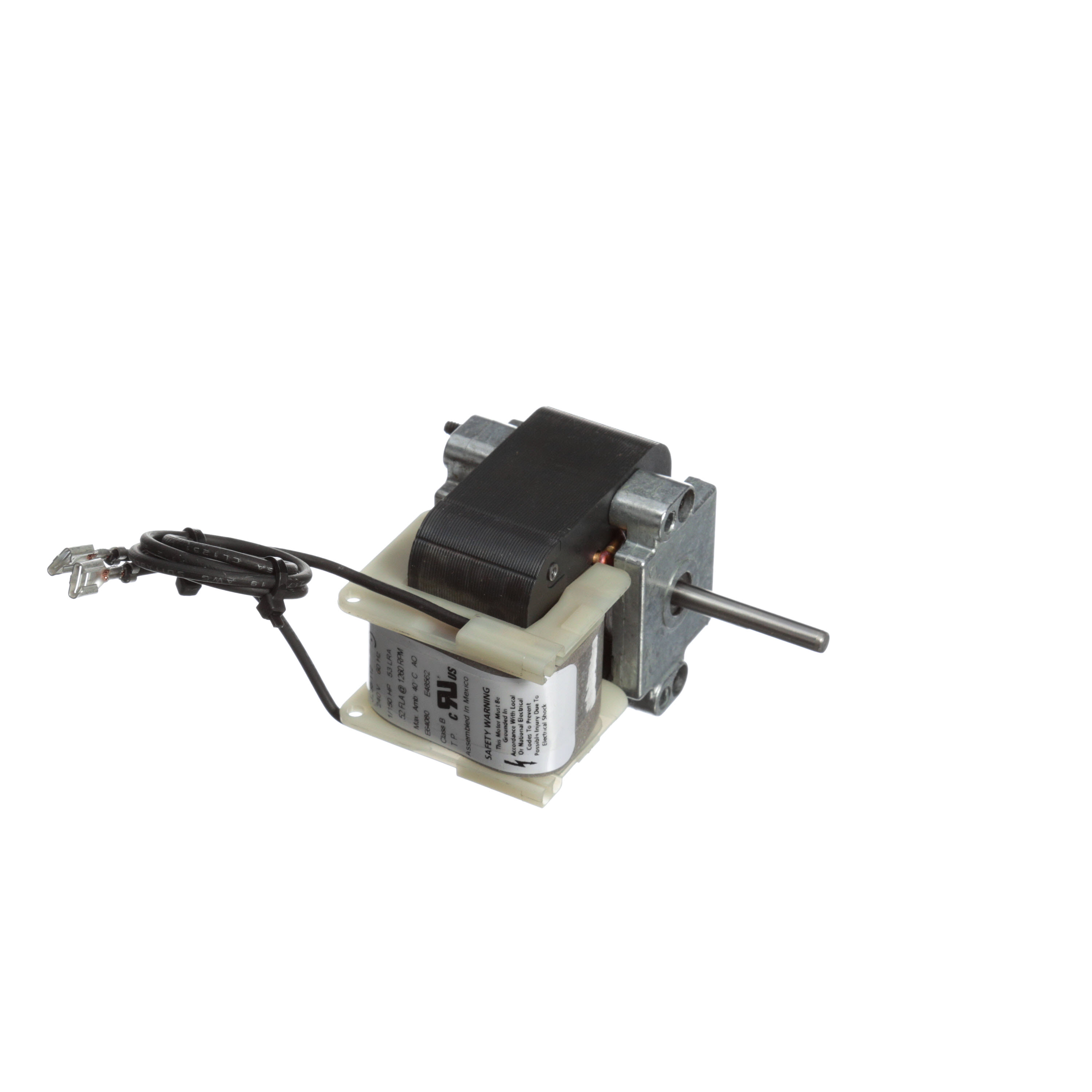

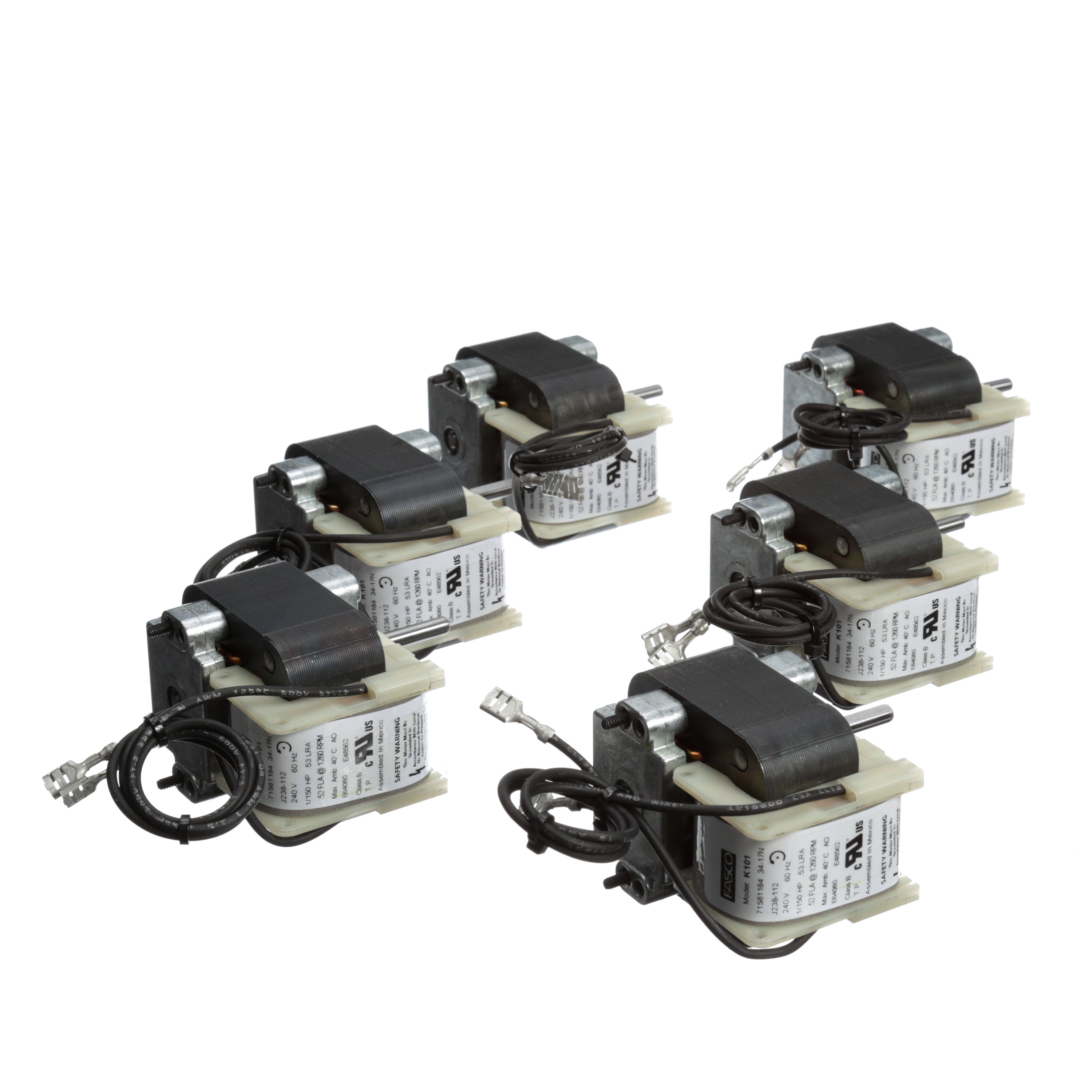

Fasco K101 1/150 HP 1260 RPM 240 Volts C-Frame Motor

Dreisilker SKU: FA-RBC-K101 | UPC: 818508021492

(No reviews yet) Write a Review
Fasco K101 1/150 HP 1260 RPM 240 Volts C-Frame Motor
$133.67
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco K101 Product Description

The Fasco K101 is a C-Frame Motor. Some of the specifications of the Fasco K101 C-Frame Motor include: Fasco K101 1/150 HP 1260 RPM 240 Volts C-Frame Motor. The warranty information for the Fasco K101 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco K101 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco K101 include the following: K101, 1/150 HP, 1260 RPM, 240 Volts, 1/150 HP 1260 RPM 240 Volts, 1/150 1260 240,FA#K101

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco K101 Technical specifications

Brand

Fasco

Catalog Number

K101

Product Category

HVAC/R Motors > C-Frame / Skeleton Motors

HP

1/150

Volts

240

Frequency

60

Amps

.52

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1260

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

C-Frame

Frame Material

-

Shaft Diameter

0.218 (in.)

Shaft Extension

1.34 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

3.86 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

FA#K101
