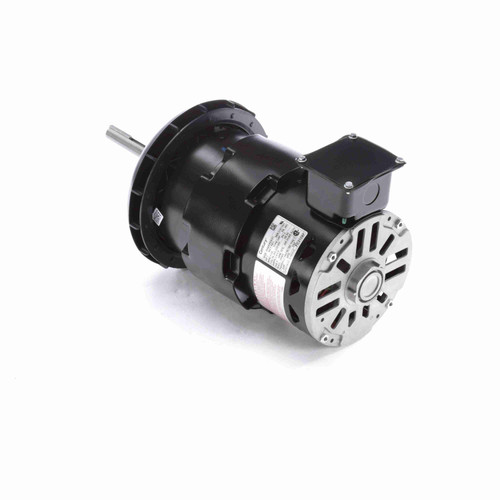

Century FC3106F 1 HP 1140 RPM 200-230/460 Volts Condenser Fan Motor

Dreisilker SKU: CE-RBC-FC3106F | UPC: 786674020420

(No reviews yet) Write a Review
Century FC3106F 1 HP 1140 RPM 200-230/460 Volts Condenser Fan Motor
$1,055.02
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Century FC3106F Product Description

The Century FC3106F is a condenser fan motor rated at 1 HP and 1140 RPM for 200-230/460 volts 3 phase supply. The FC3106F has a 48 frame with a 5/8 shaft diameter. It's an open (shaft up) enclosure motor and has ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Recommended Additional Products

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Century FC3106F Technical specifications

Brand

Century

Catalog Number

FC3106F

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1

Volts

200-230/460

Frequency

60

Amps

5.6/2.8

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1140

Speeds

1

Phase

3

Enclosure

Open Enclosed

Rotation

Reversible

Mounting Type

Round Belly Band

Frame

48Y

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

4.07 (in.)

Shaft Type

Keyed

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimemsion

15.44 (in.)

Electrical Type

Three Phase

Duty

Air Over

Motor Orientation

Vertical Shaft Up

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

F

Max Ambient

70°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#FC3106
