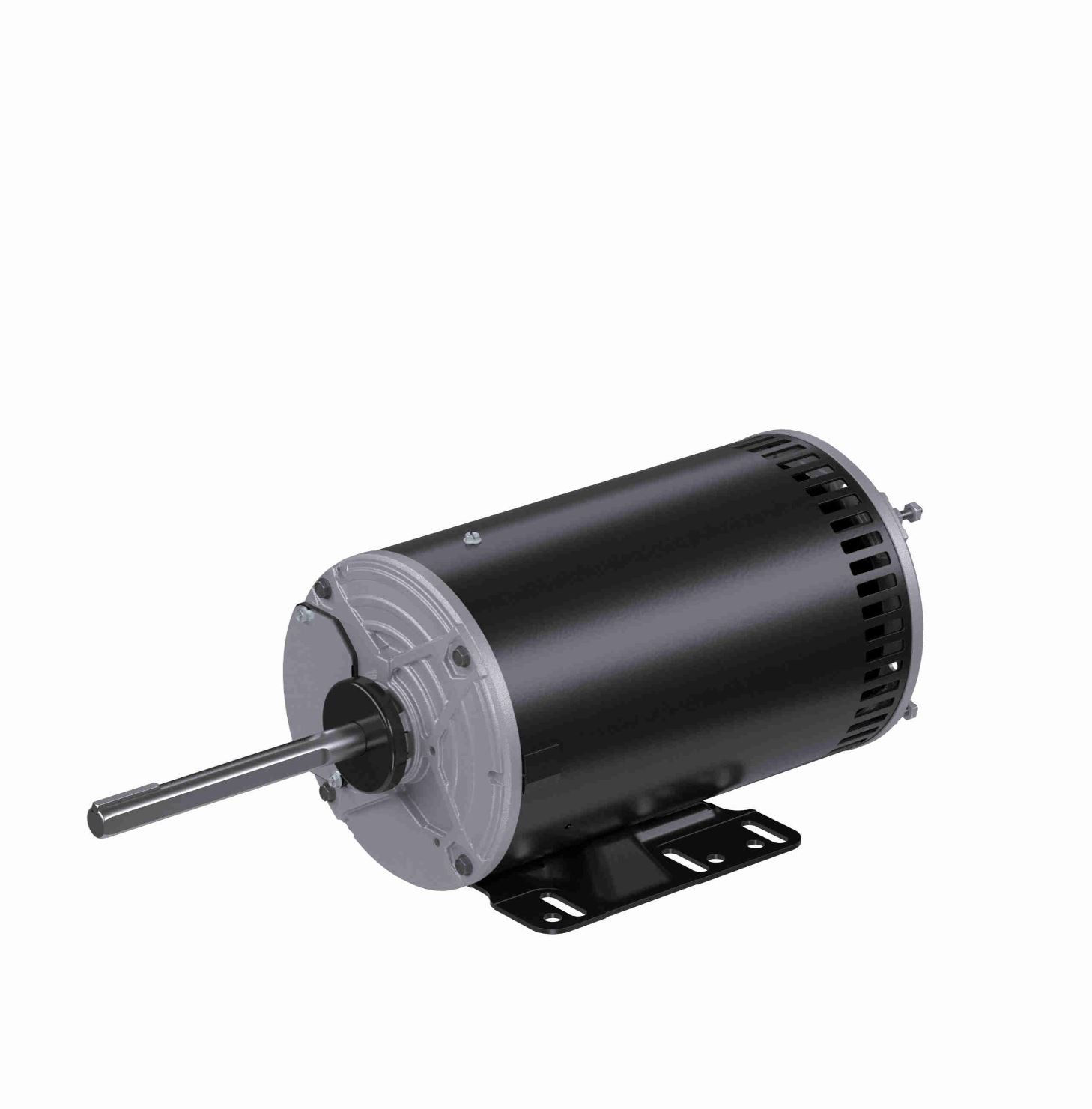

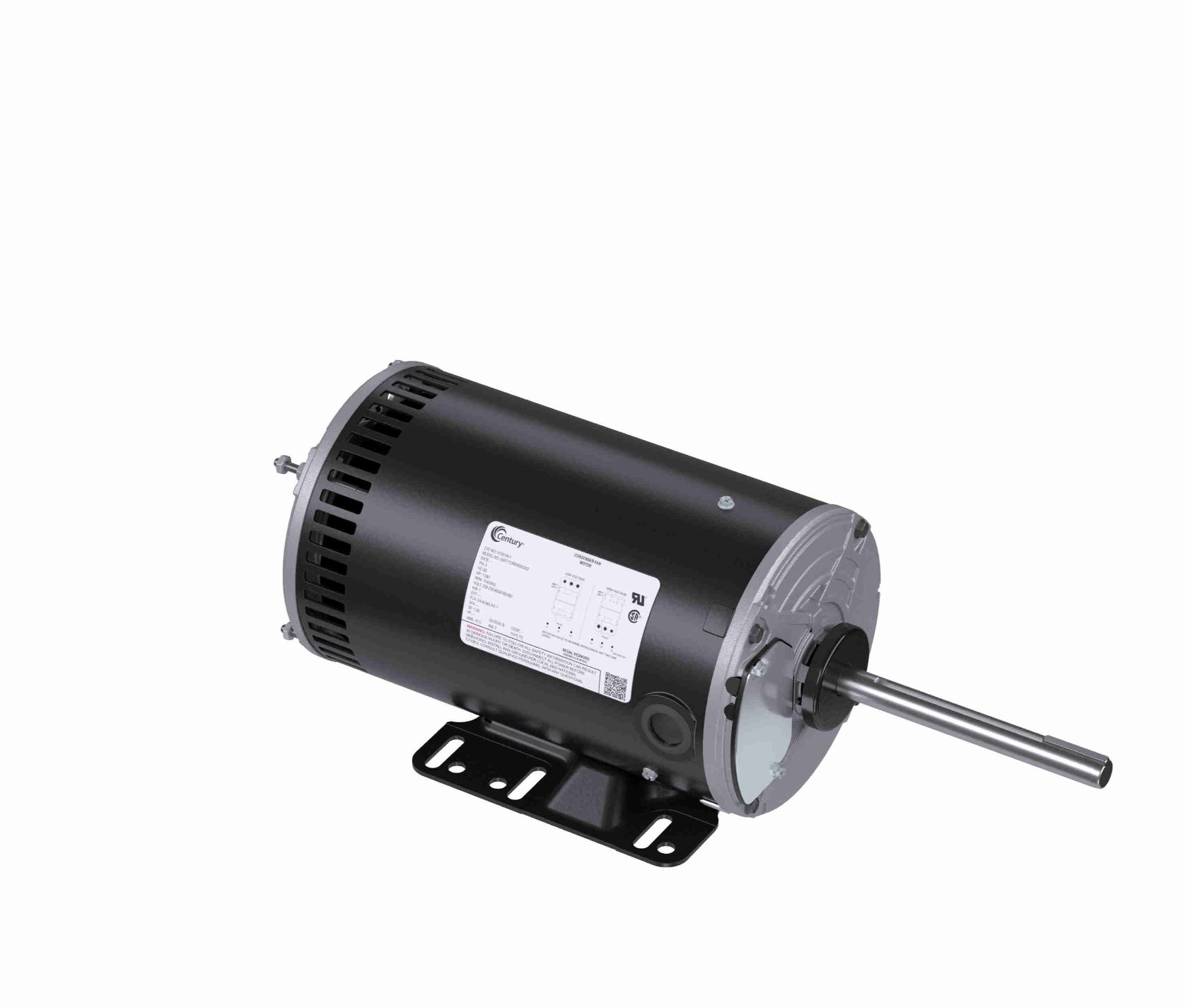

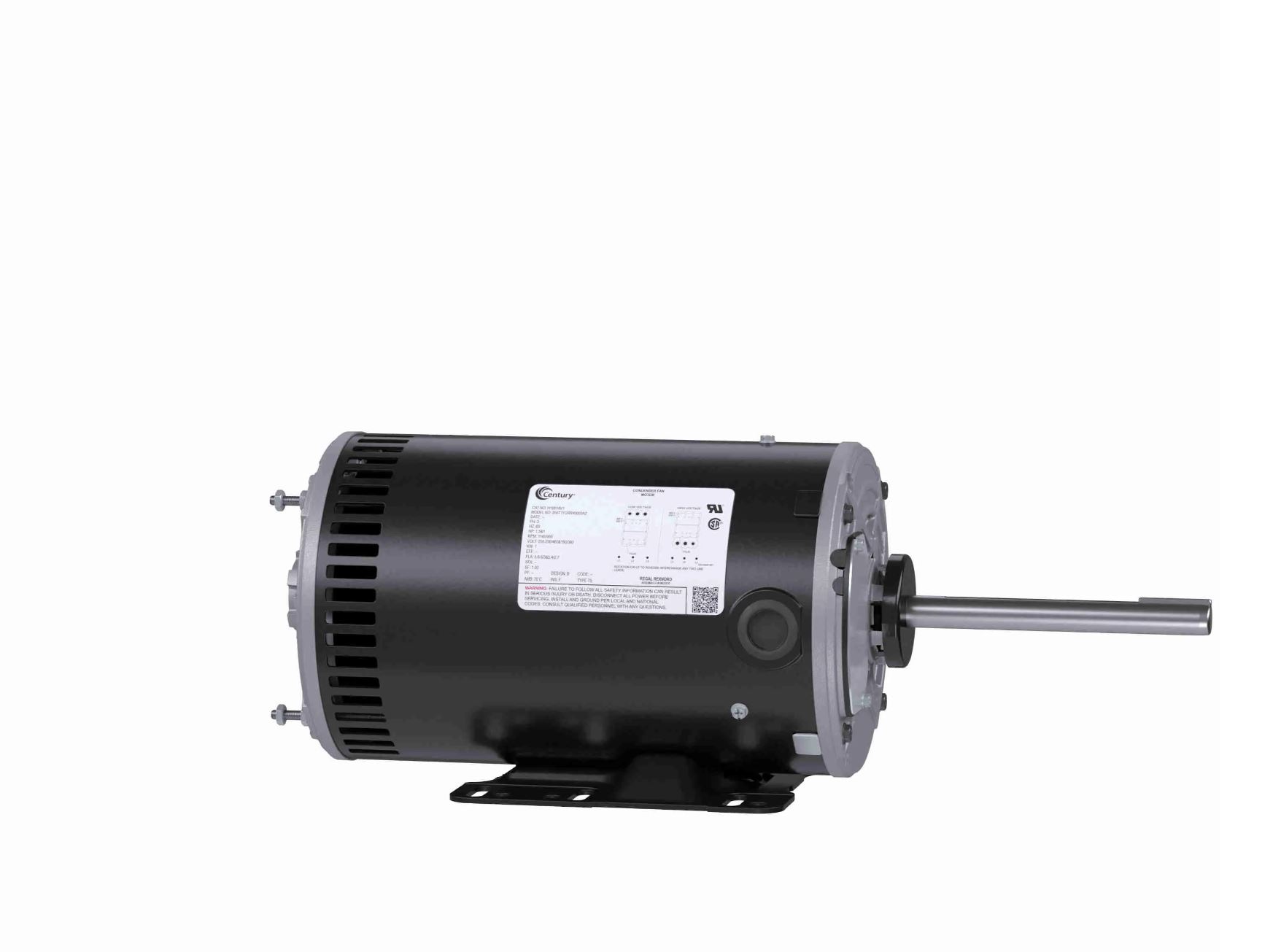

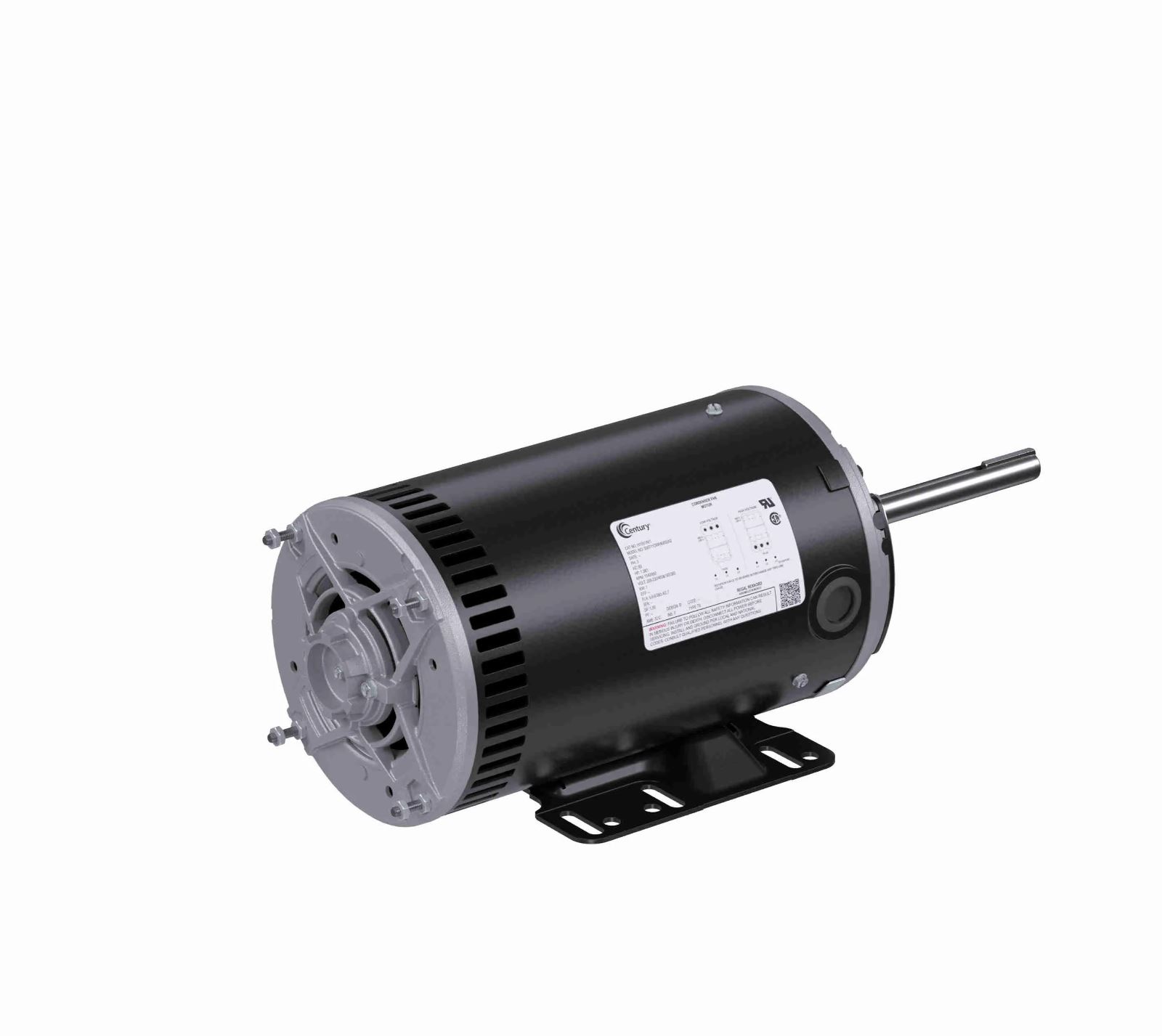

Century H1051AV1 1.5 1140/950 RPM 230/460&190/380 Volts Condenser Fan Motor

Dreisilker SKU: CE-RBC-H1051AV1-1 | UPC: 786674074041

(No reviews yet) Write a Review
$500.05
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Century H1051AV1 Product Description

The Century H1051AV1 is a condenser fan motor rated at 1.5 and 1 HP and 1140/950 RPM for 230/460&190/380 volts 3 phase supply and is part of Century's JuggerNaut Condenser Fan Motors series of commercial condenser fan motors. The H1051AV1 has a 56HZ frame with a 5/8 shaft diameter. It's an open air over motor and has ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Century H1051AV1 Product Features:
  • 70°C max ambient temperature
  • Inverter duty
  • Quick-connect design
  • Automatic reset thermal protector
  • Non-conductive grease bearing
  • Double sealed ball bearings
  • Shaft slinger
  • VCD™ Voltage Change Device
  • Class F insulation
Century H1051AV1 Product Benefits:
  • 70°C ambient temperature for high temperature operating conditions.
  • Inverter duty wire for use with variable frequency drives.
  • Quick-connect design.
  • Automatic reset thermal protector protects against motor overload and automatically resets.
  • Non-conductive bearing grease to reduce conduction of bearing currents.
  • Double sealed ball bearings are pre-lubricated with a special formulation for moisture resistance and provides extra-long life.
  • Shaft slinger keeps water and dirt out of motor in vertical, shaft up installations.
  • VCD™ Voltage Change Device to quickly change voltage on the spot.
  • UL and CSA recognized Class F insulation for 70°C (158°F) max ambient conditions provides longer motor life.

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Century H1051AV1 Technical specifications

Brand

Century

Catalog Number

H1051AV1

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1

Volts

230/460&190/380

Frequency

60

RPM (Number of Poles)

6

RPM (Nameplate)

1140/950

Speeds

1

Phase

3

Enclosure

Open Air Over

Rotation

Reversible

Mounting Type

Bolt-on Base

Frame

56HZ

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

6 (in.)

DE Bearing Type

Ball

ODE Bearing Type

Ball

Electrical Type

Squirrel Cage Induction Run

Duty

Continuous

Service Factor

1

Insulation Class

F

Max Ambient

70°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#H1051AV1
