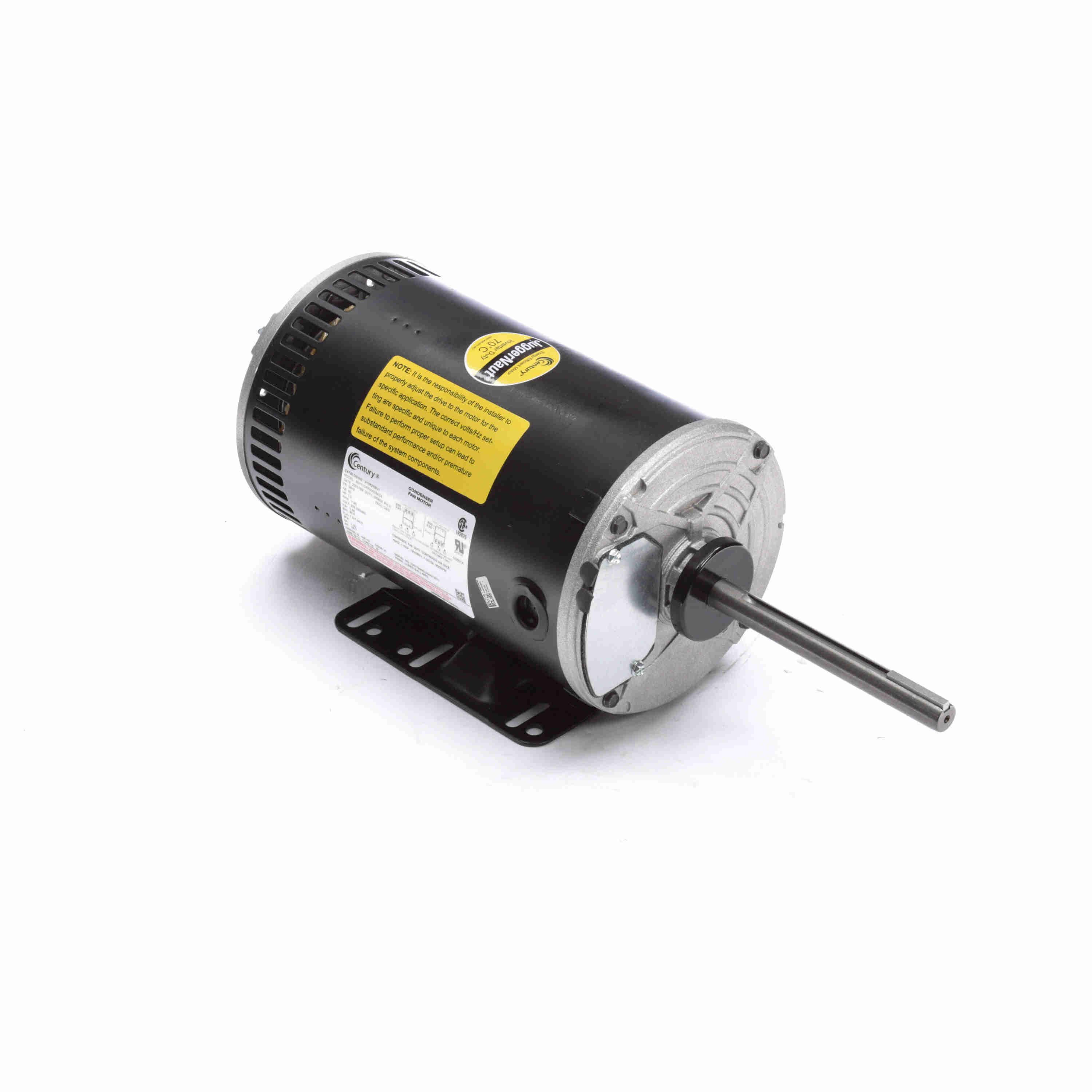

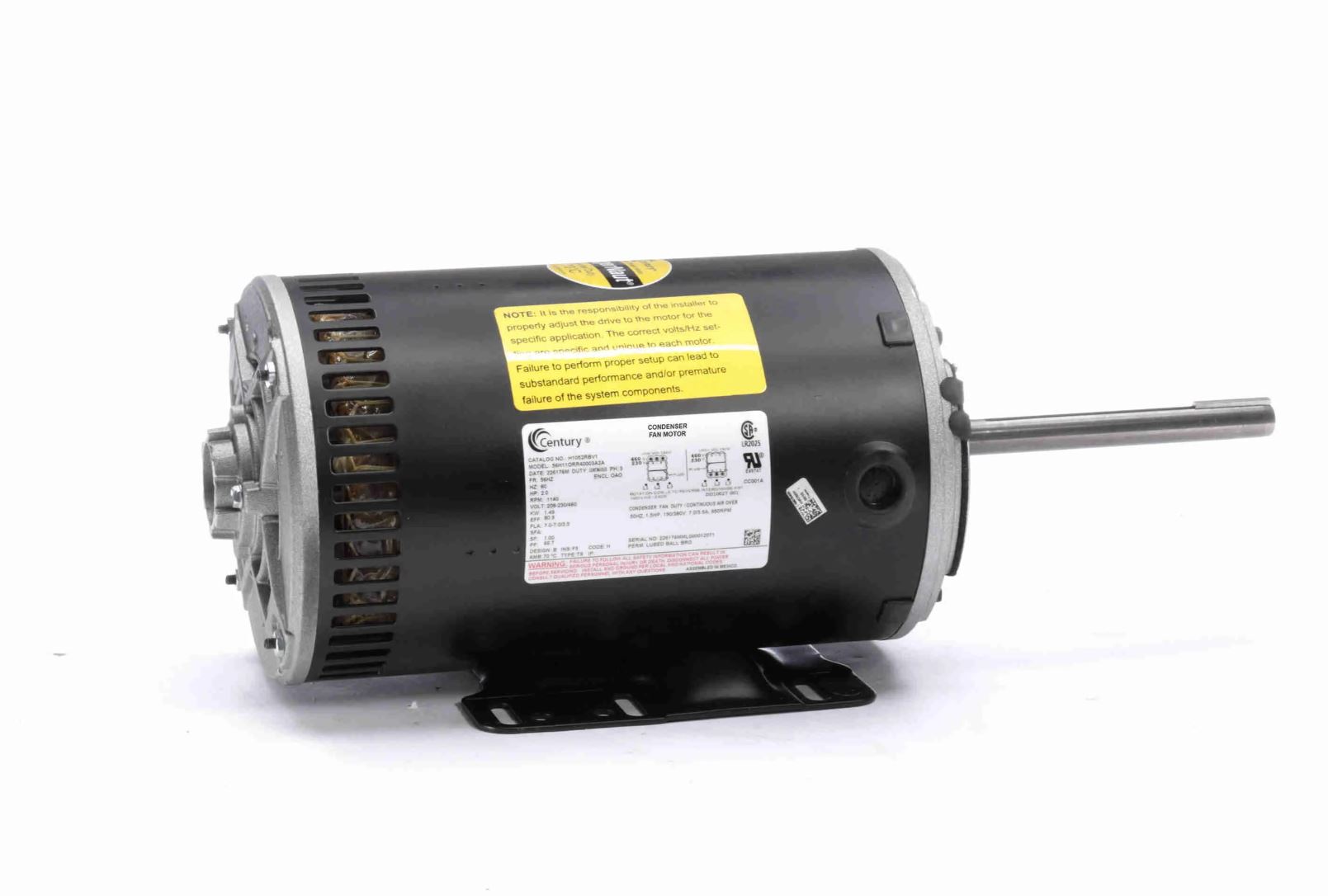

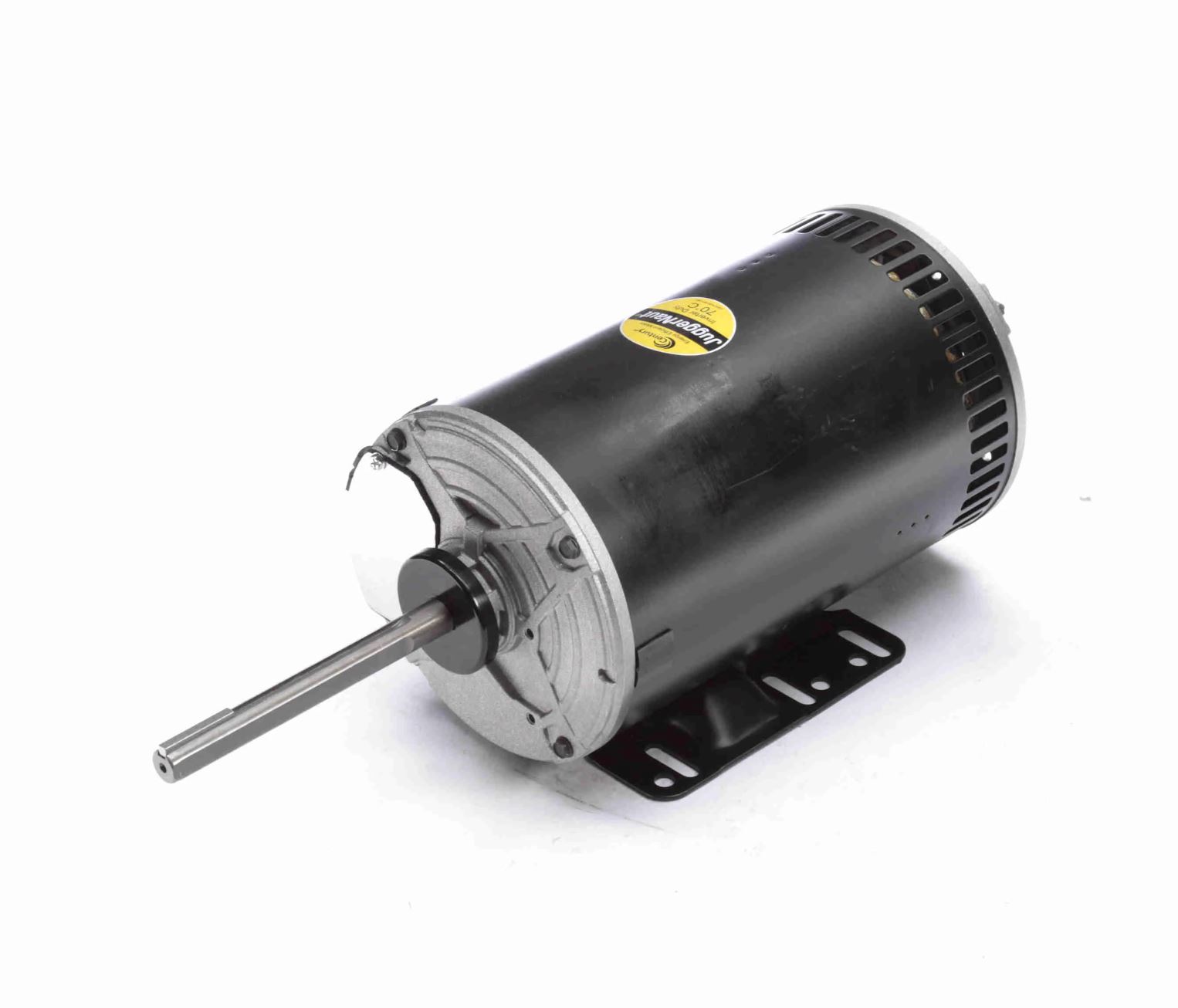

Century H1052RBV1 2 HP 1140 RPM 460/208-230 Volts Condenser Fan Motor

Dreisilker SKU: CE-RBC-H1052RBV1 | UPC: 786674074072

(No reviews yet) Write a Review
Century H1052RBV1 2 HP 1140 RPM 460/208-230 Volts Condenser Fan Motor
$732.94
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Century H1052RBV1 Product Description

The Century H1052RBV1 is a Condenser Fan Motor. Some of the specifications of the Century H1052RBV1 include: Century H1052RBV1 2 HP 1140 RPM 460/208-230 Volts Condenser Fan Motor. The warranty information for the Century H1052RBV1 Condenser Fan Motor is the following: Century offers a 1-year manufacturer's warranty on their electric motors and motor accessories. The Century H1052RBV1 Condenser Fan Motor Typically Ships Within 1 Business Day. Some additional keywords associated with the Century H1052RBV1 Condenser Fan Motor include the following: H1052RBV1.

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Century H1052RBV1 Technical specifications

Brand

Century

Catalog Number

H1052RBV1

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

2

Volts

208-230/460

Frequency

60

Amps

7.0-7.0/3.5

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1140

Speeds

1

Phase

3

Enclosure

Open Air Over

Rotation

Reversible

Mounting Type

Rigid base

Frame

56HZ

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

6 (in.)

Shaft Type

Keyed

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimemsion

18.01 (in.)

Electrical Type

Three Phase

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

F

Max Ambient

70°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

NOHP
