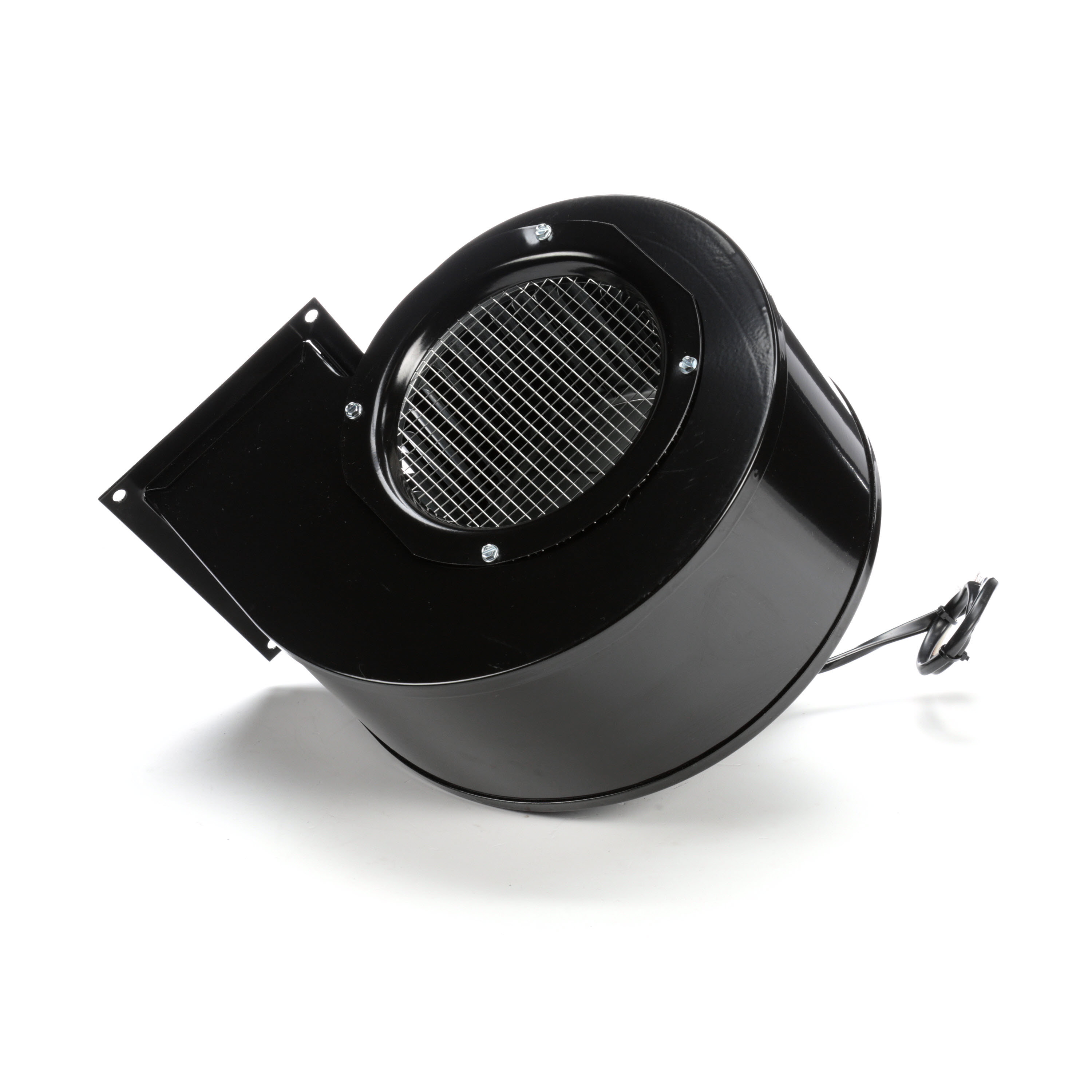

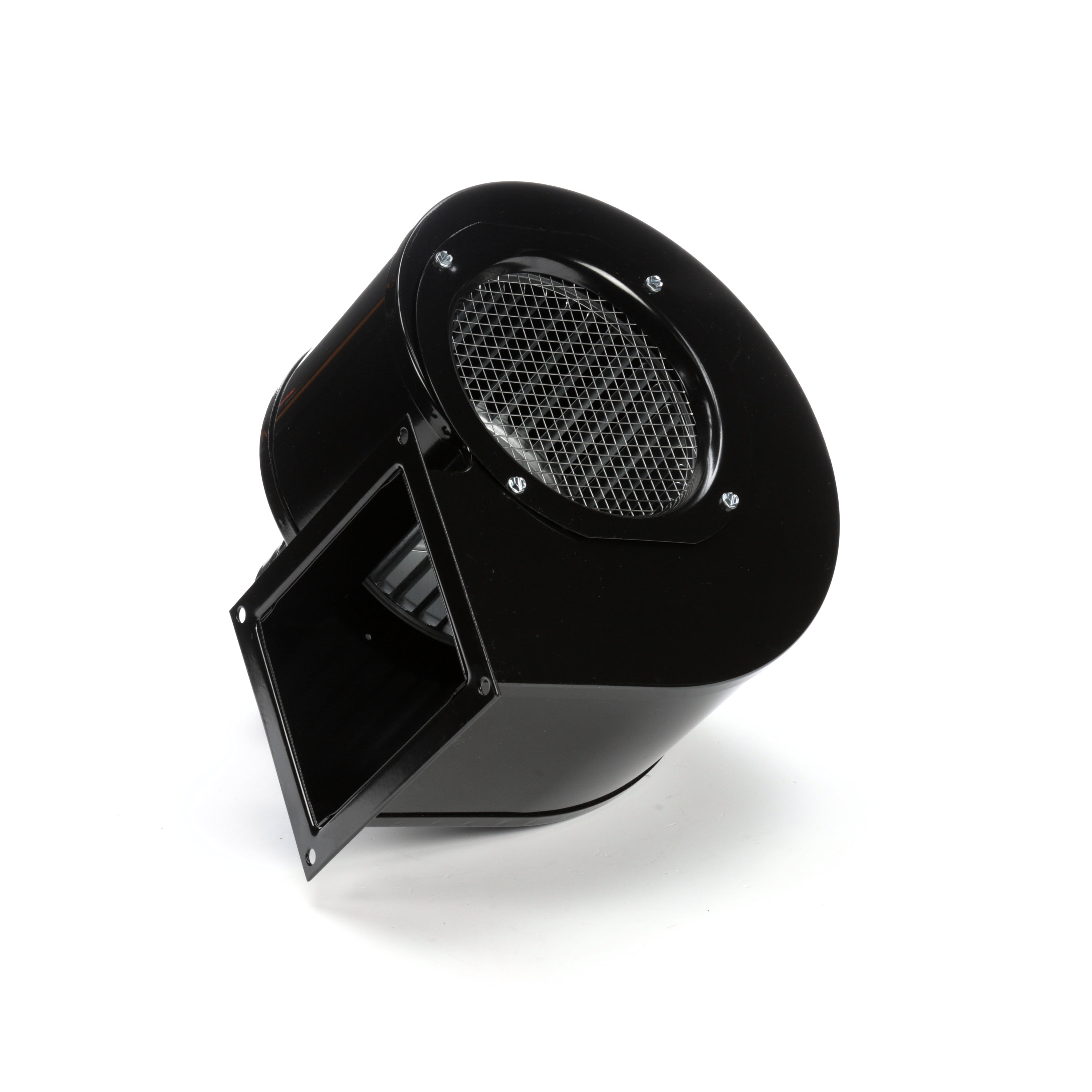

Fasco 50769-D230 480 CFM 1350 RPM 230 Volts Centrifugal Blower

Fasco

Dreisilker SKU: FA-RBC-50769-D230 | UPC: 815585024590

(No reviews yet) Write a Review

Fasco 50769-D230 Product Description

Introducing the Fasco 50769-D230 Centrifugal Blower, a powerful and reliable motor designed to meet your ventilation needs. With a nameplate specification of 480 CFM, 1350 RPM, and 230 Volts, this motor is capable of delivering high-performance airflow to your system. The Fasco 50769-D230 is a centrifugal blower, which means it uses a rotating impeller to create a flow of air perpendicular to the axis of rotation. This design makes it ideal for applications that require high-pressure airflow, such as HVAC systems, furnaces, and boilers. To ensure a secure and leak-free installation, we recommend using Permatex Gasket Maker when installing the Fasco 50769-D230. This high-quality gasket maker creates a strong and durable seal that can withstand the rigors of daily use. Draft Inducer Motors like the Fasco 50769-D230 are commonly used in a variety of applications, including commercial and residential HVAC systems, industrial ventilation systems, and more. They are designed to improve the efficiency and performance of your system by increasing airflow and reducing energy consumption. In summary, if you're looking for a powerful and reliable centrifugal blower motor, the Fasco 50769-D230 is an excellent choice. With its high-performance specifications and durable construction, it's sure to meet your ventilation needs for years to come. And with the use of Permatex Gasket Maker, you can be confident in a secure and leak-free installation.

Fasco 50769-D230 Technical specifications

CFM

480

RPM

1200/1400

Volts

208-230

Speeds

Amps

1.9

Bearings

Sleeve

DEM Reference

FA#50769-D230

Spec Sheet

50769-D230
