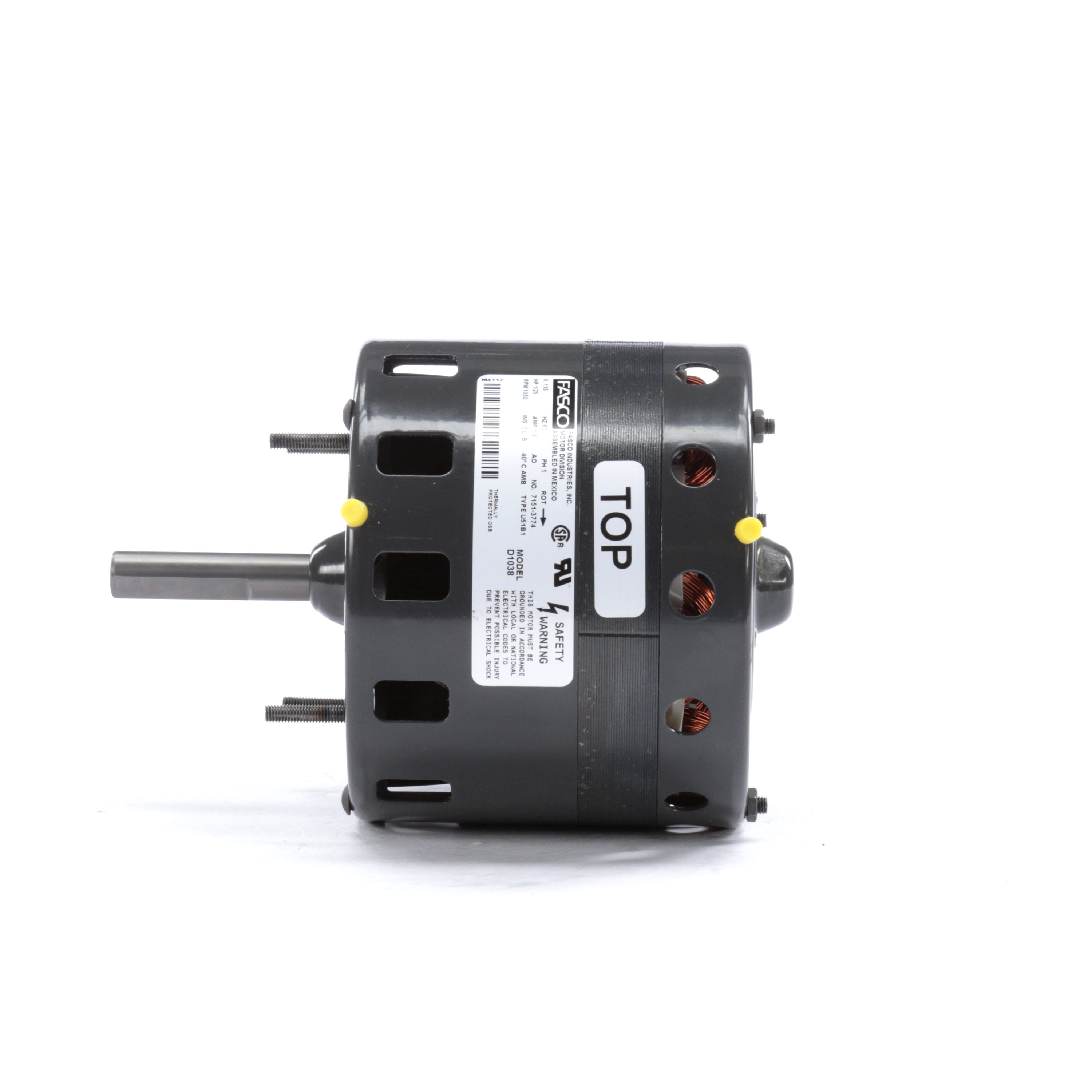

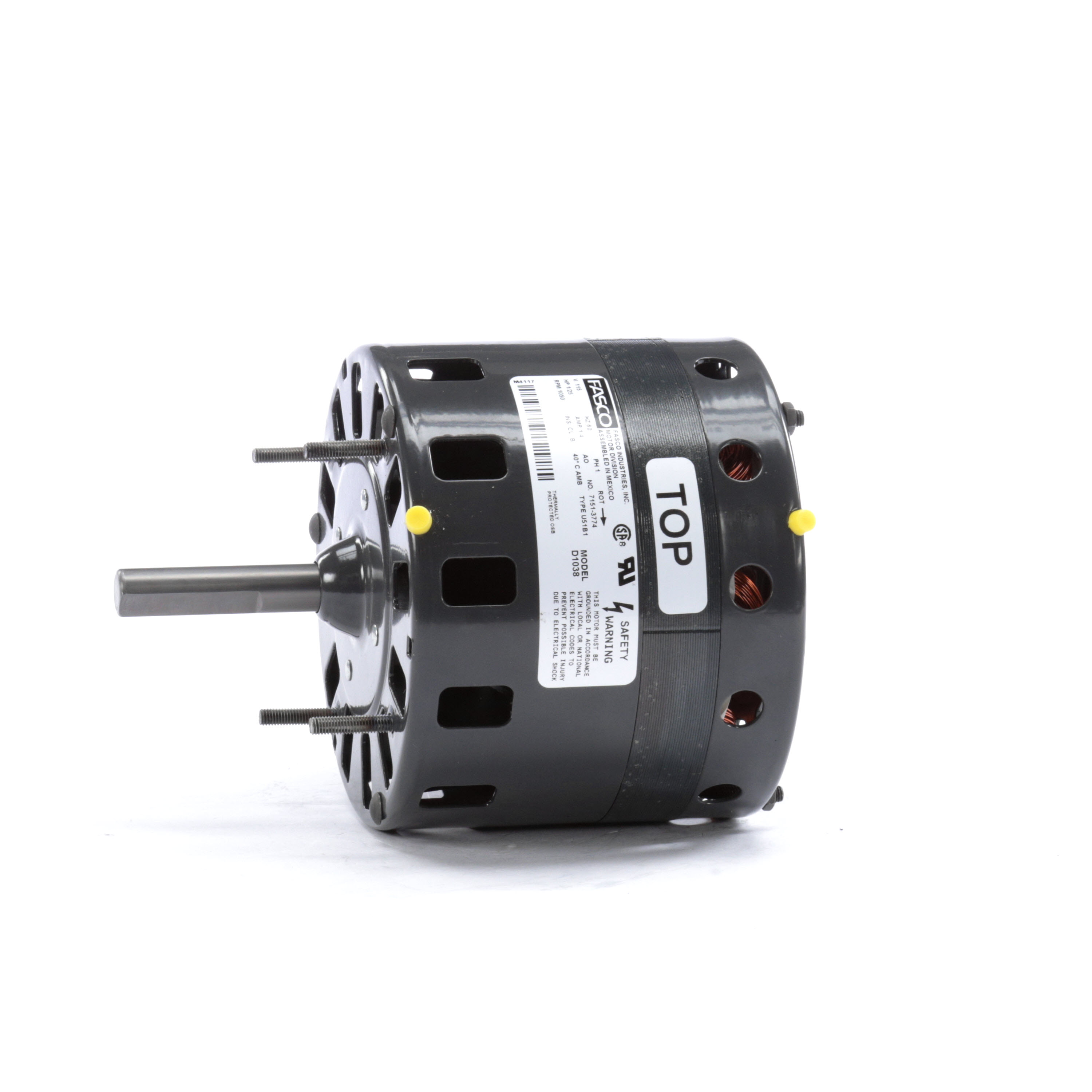

Fasco D1038A 1/25 HP 1050 RPM 115 Volts Unit Heater Motor

Dreisilker SKU: FA-RBC-D1038A | UPC: 8.15585E+11

(No reviews yet) Write a Review
$223.52

Replaces Fasco D1038, requires capacitor

Keep your buildings warm

Quality, reliable unit heater motor

  • Packard TOCF5 Run Capacitor
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D1038A Product Description

The Fasco D1038A is a Unit Heater Motor.

Fasco D1038A 1/25 HP 1050 RPM 115 Volts Unit Heater Motor.

Some cross references include: D1038, 7151-3122, 71513122, 1/25 HP, 1050 RPM, 115 Volts, 1/25 HP 1050 RPM 115 Volts, 1/25 1050 115,FA#D1038A

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1038A Technical specifications

Brand

Fasco

Catalog Number

D1038

Product Category

HVAC/R Motors > Ventilation Motors

HP

1/25

Volts

115

Frequency

60

Amps

1.4

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1050

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

2.50 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

7.07 (in.)

Electrical Type

PSC

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1038A
