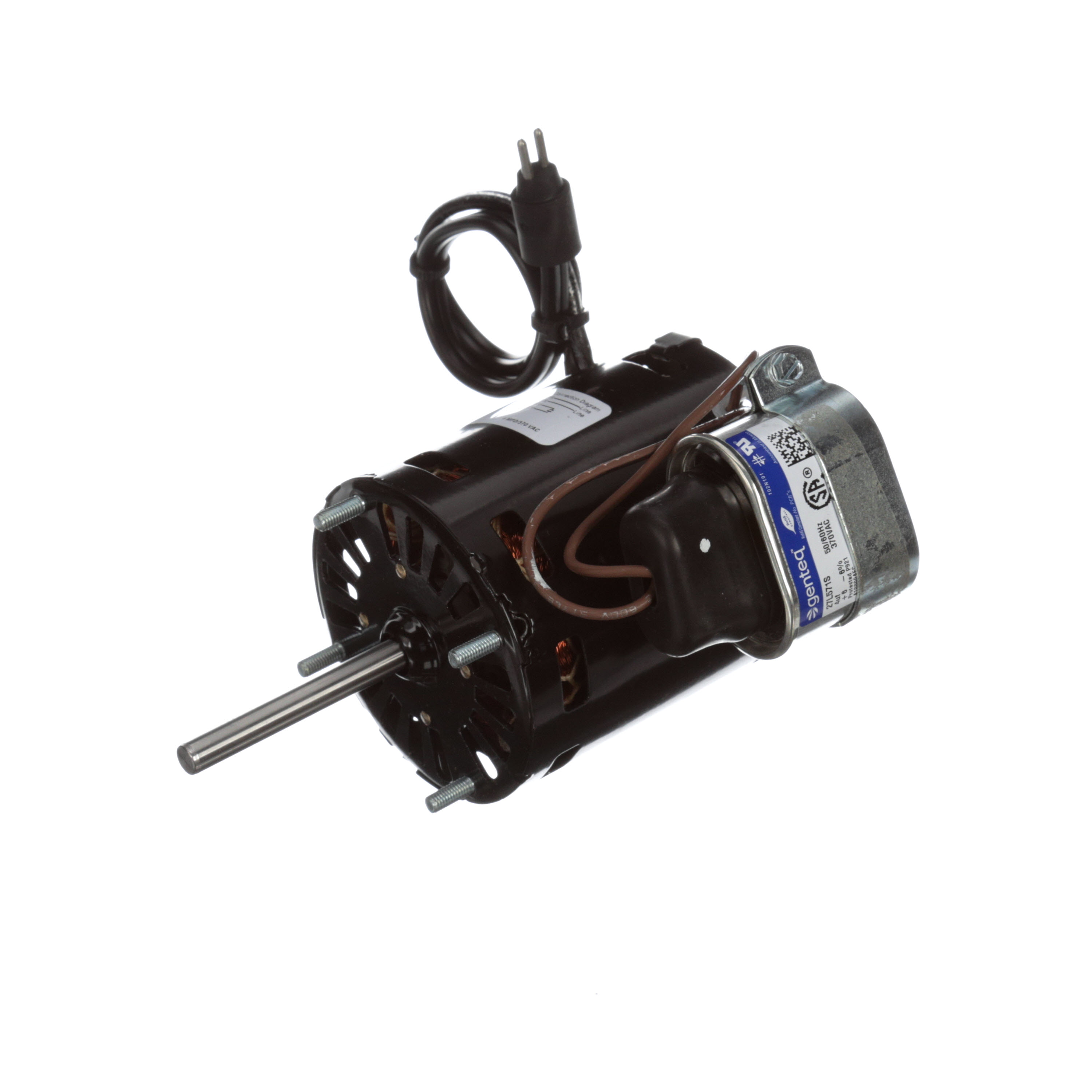

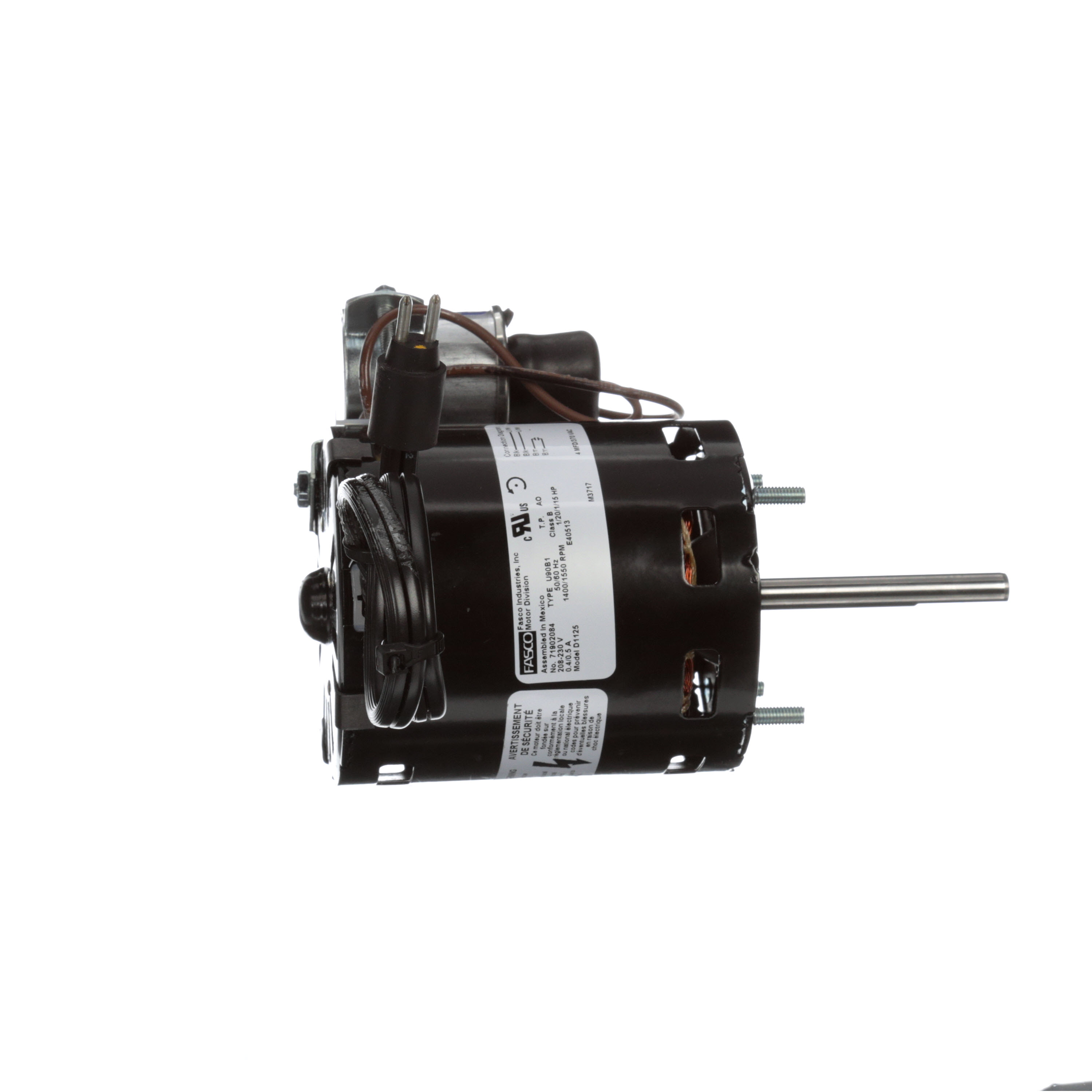

Fasco D1125 1/12 HP 1550 RPM 208-230 Volts Refrigeration Fan Motor

Dreisilker SKU: FA-RBC-D1125 | UPC: 818508021911

(No reviews yet) Write a Review
$133.06

In Stock

Popular Replacement Motor

Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D1125 Product Description

The Fasco D1125 is a Refrigeration Fan Motor that replaces the Bohn 7190-0442. Some of the specifications of the Fasco D1125 Refrigeration Fan Motor include:

HP 1/12 RPM 1550 Volts 208-230 Amps 0.5 Rotation CCW Shaft Diameter 5/16

The Fasco D1125 is a top seller for refrigeration fan motors. It is in stock and ready to ship. Fasco Motors are one of the most reliable brands on the market. The Fasco D1125 is a great replacement motor for your old, worn out motor. Fasco Motors are built to last and this one is no exception. Order your Fasco D1125 today! You won't be disappointed.

The warranty information for the Fasco D1125 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1125 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1125 include the following: D1125, 1/12 HP, 1550 RPM, 208-230 Volts, 1/12 HP 1550 RPM 208-230 Volts, 1/12 1550 208-230,FA#D1125

Looking for more information on what CCW rotation means for you? Check out our online dictionary of motor terminology here: Counter Clockwise Rotation Explained

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1125 Technical specifications

Brand

Fasco

Catalog Number

D1125

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/12

Volts

208-230

Frequency

50

Amps

0.40/0.50

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

2.64 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

6.75 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

FA#D1125
