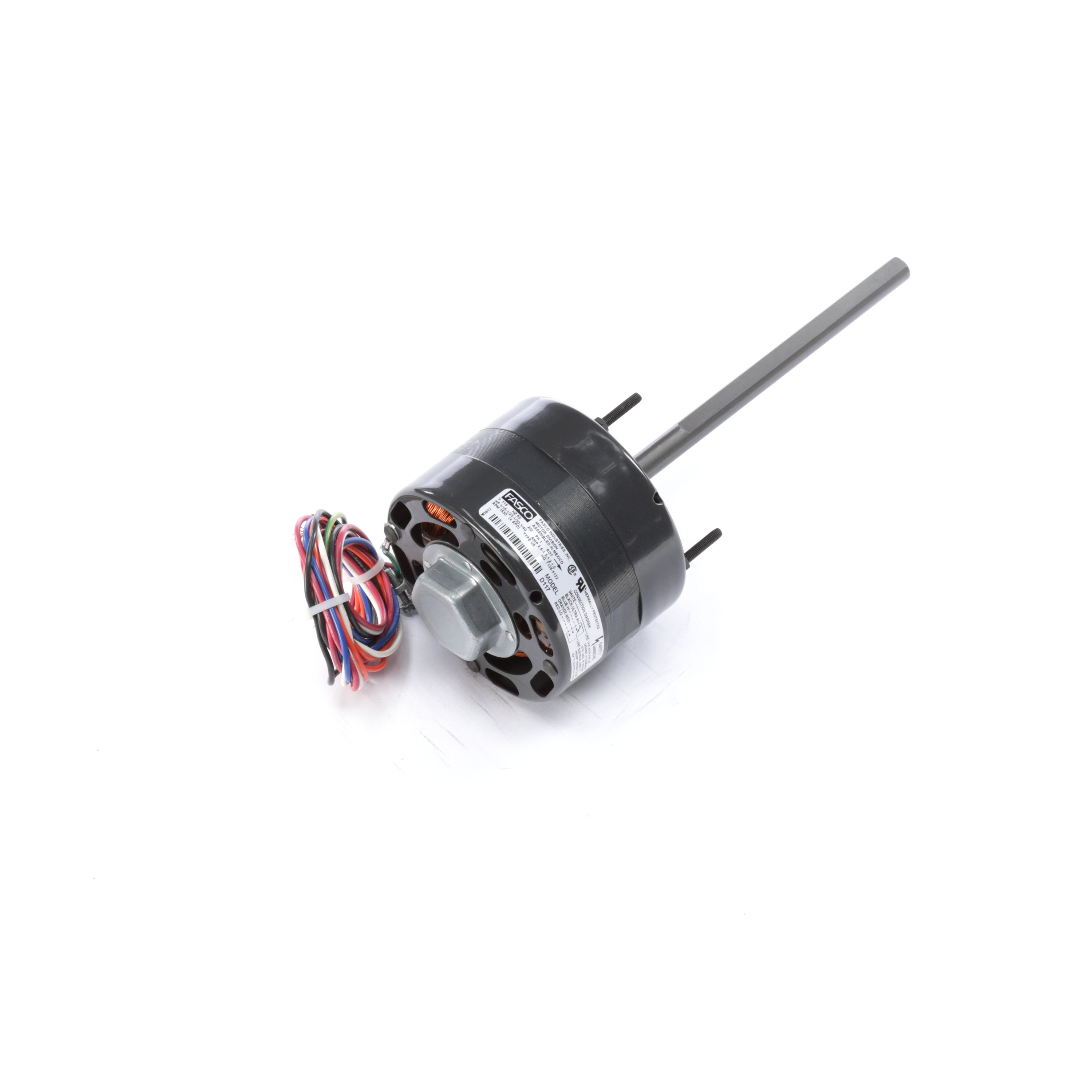

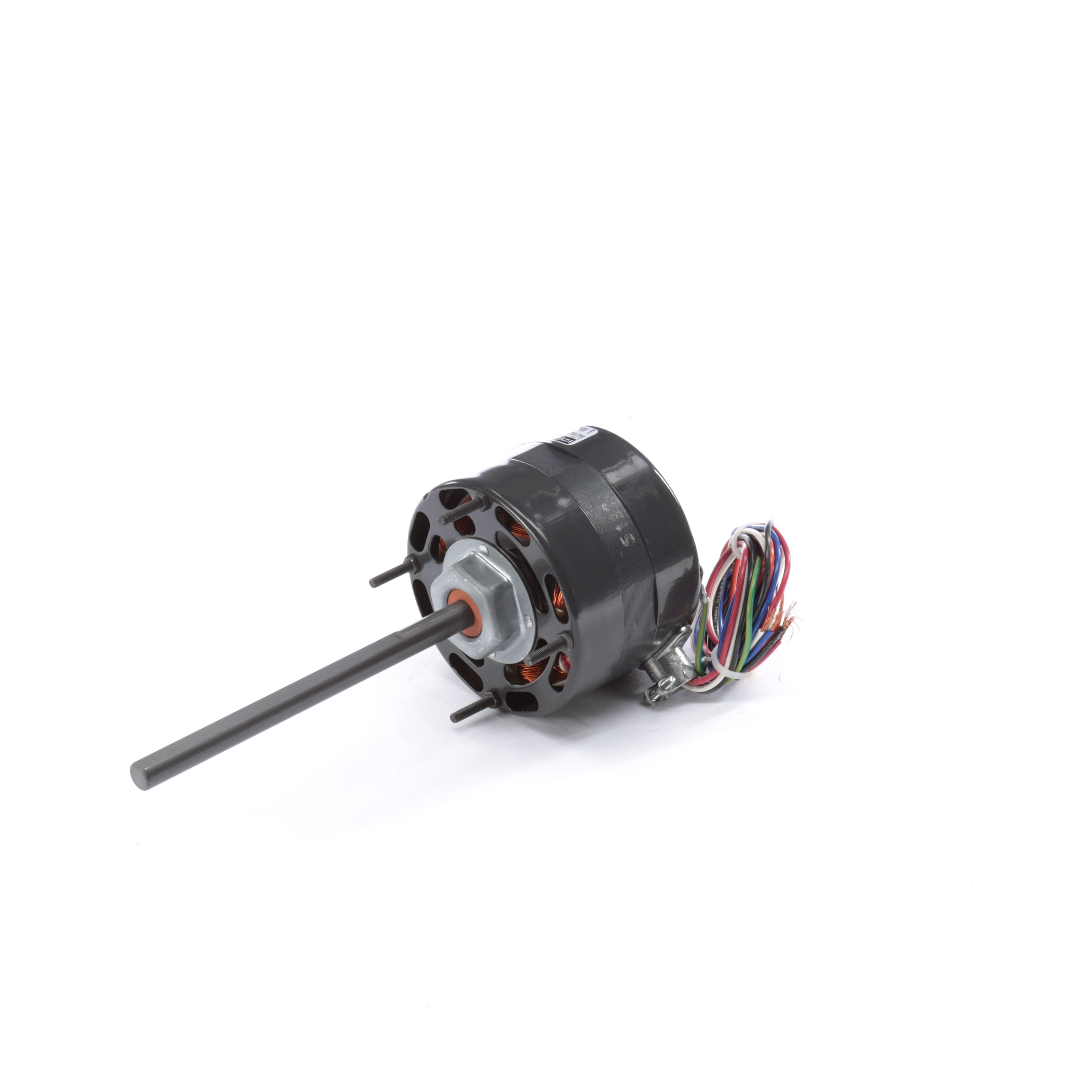

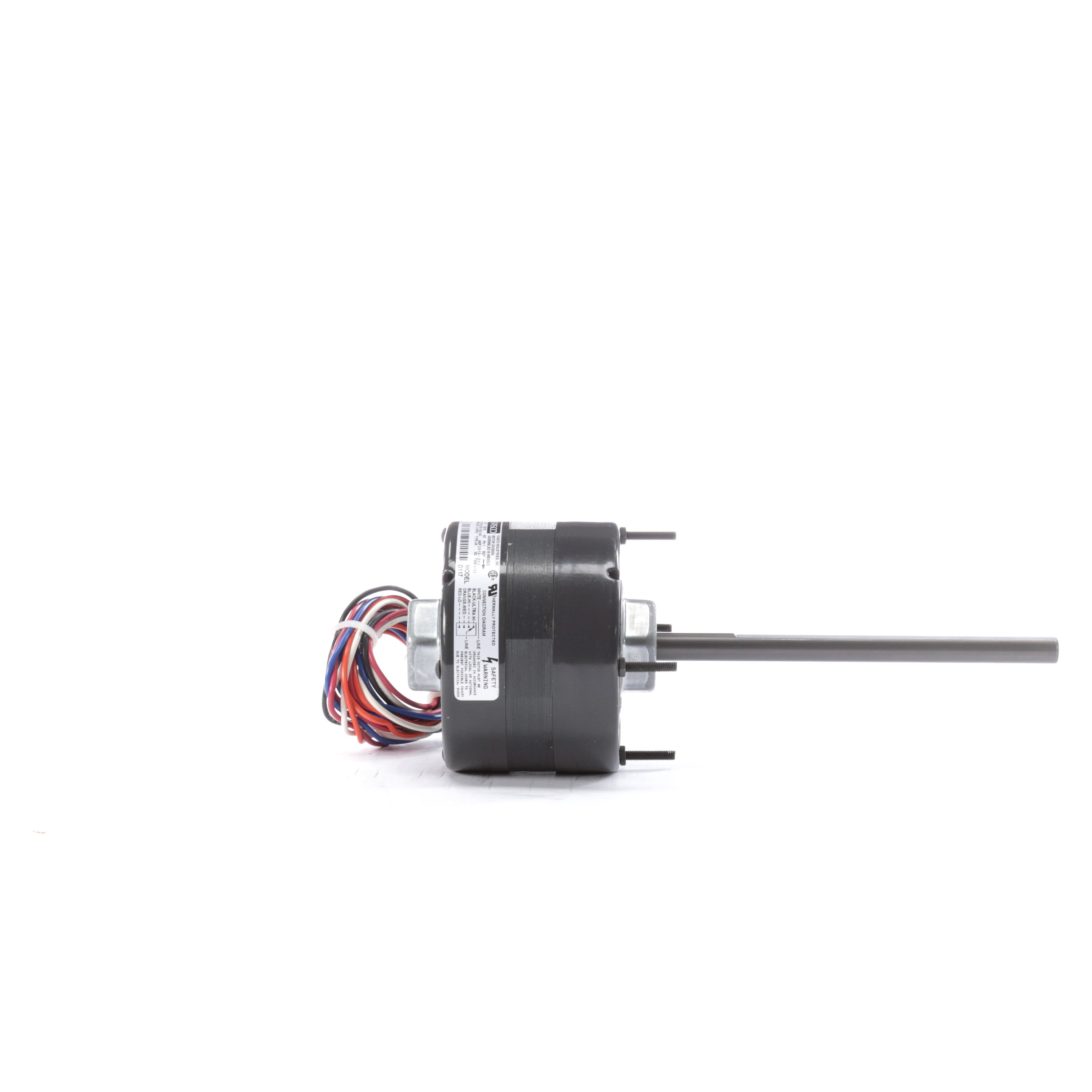

Fasco D117 1/15 HP 1550 RPM 115 Volts Fan Coil Unit Motor

Dreisilker SKU: FA-RBC-D117 | UPC: 818508022291

(No reviews yet) Write a Review
Fasco D117 1/15 HP 1550 RPM 115 Volts Fan Coil Unit Motor
$279.88
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D117 Product Description

The Fasco D117 is a Fan Coil Unit Motor. Some of the specifications of the Fasco D117 Fan Coil Unit Motor include: Fasco D117 1/15 HP 1550 RPM 115 Volts Fan Coil Unit Motor. The warranty information for the Fasco D117 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D117 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D117 include the following: D117, 1/15 HP, 1550 RPM, 115 Volts, 1/15 HP 1550 RPM 115 Volts, 1/15 1550 115,FA#D117

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D117 Technical specifications

Brand

Fasco

Catalog Number

D117

Product Category

HVAC/R Motors > Fan Coil / Room Air Conditioner Motors

HP

1/15

Volts

115

Frequency

60

Amps

2.5-1.5-1.2-1.0

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

4

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

4.4 (in. diameter)

Frame Material

Na

Shaft Diameter

1/2 (in.)

Shaft Extension

7.5 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

11.29 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

A

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D117
