Durable fan motor
Ships quickly
Best seller, trusted by many

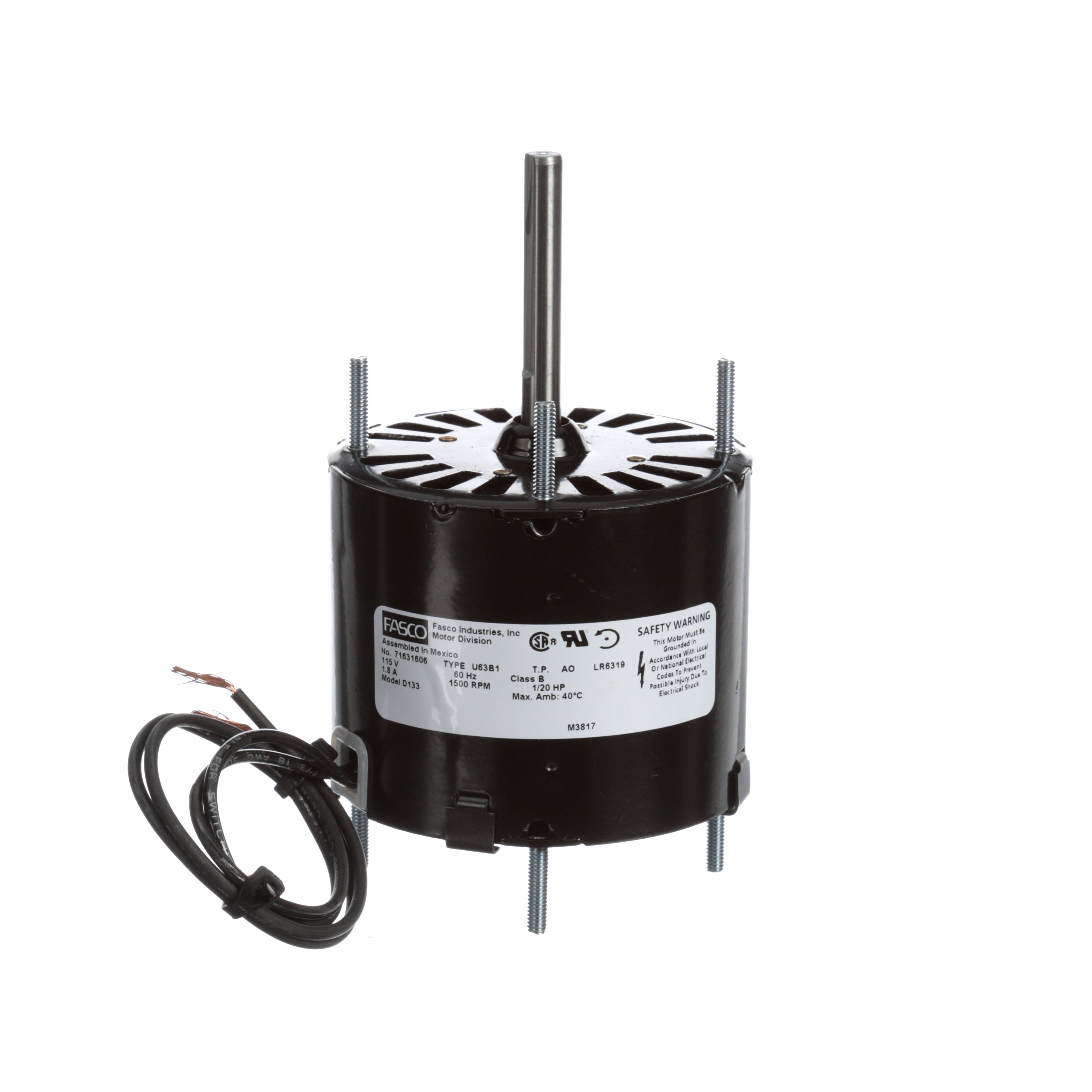

The Fasco D133 is a high-quality, general purpose fan motor that is perfect for a variety of applications. With 1/20 HP and 1500 RPM, this 115 volt motor is designed for durability and long-lasting use. Additionally, the Fasco D133 typically ships within one business day and comes with a one-year manufacturer's warranty, making it a great choice for both home and commercial use.
THE DREISILKER PROCESS
Order Today
Simply click the add to cart button and check out securely today to get your order in progress.
Ships Quickly
Fast movers ship same business day when ordered by 2:00 pm CST.
Back to Normal
Get your systems up and running so you can go back to relaxing.
Brand
Fasco
Catalog Number
D133
Product Category
HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors
HP
1/20
Volts
115
Frequency
60
Amps
1.80
RPM (Number of Poles)
4 (1201 RPM to 1800 RPM)
RPM (Nameplate)
1500
Speeds
1
Phase
1
Enclosure Type
Open Air Over
Rotation
Counterclockwise Shaft End
Mounting Type
Extended Studs
Frame Type
3.3 (in. diameter)
Frame Material
Steel
Shaft Diameter
5/16 (in.)
Shaft Extension
2.30 (in.)
Shaft Type
Flat
DE Bearing Type
Sleeve
ODE Bearing Type
Sleeve
C-Dimension
5.41 (in.)
Electrical Type
Shaded Pole
Duty
Air Over
Motor Orientation
-
Service Factor
1
Type of Overload Protector
Thermally Protected
Insulation Class
B
Max Ambient
40°C
UL
Recognized
CE
N
CSA
Y
IP Code
-
KVA Code
-
DEM Reference
FA#D133
