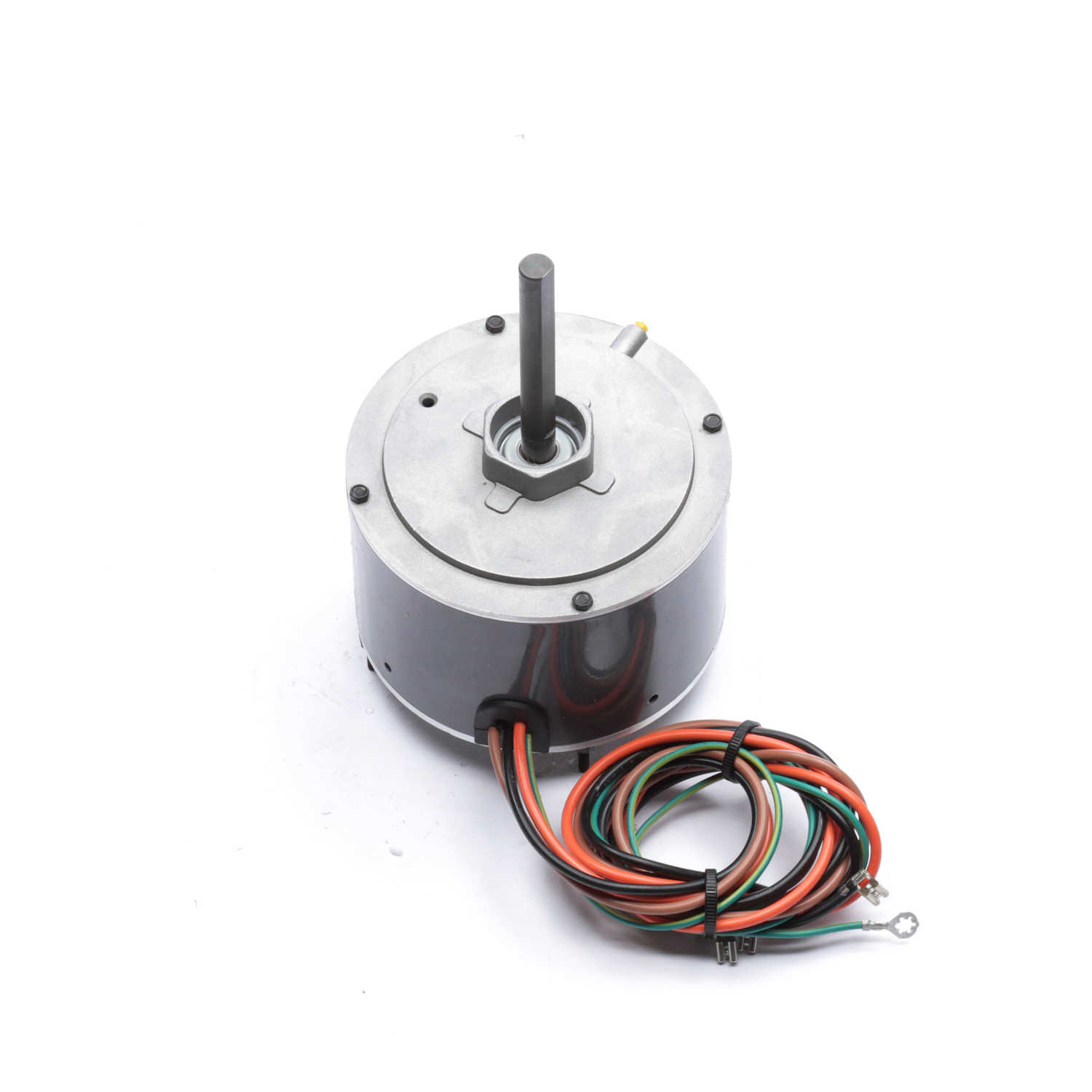

Fasco D2840 1/5 HP 1075 RPM 208/230 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D2840 | UPC: 818508022369

(No reviews yet) Write a Review
Fasco D2840 1/5 HP 1075 RPM 208/230 Volts OEM Direct Replacement Motor
$152.73
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D2840 Product Description

The Fasco D2840 is a Rheem-Ruud OEM Direct Replacement Motor. Some of the specifications of the Fasco D2840 Rheem-Ruud OEM Direct Replacement Motor include: Fasco D2840 1/5 HP 1075 RPM 208/230 Volts OEM Direct Replacement Motor. The warranty information for the Fasco D2840 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D2840 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D2840 include the following: D2840, 1/5 HP, 1075 RPM, 208/230 Volts, 1/5 HP 1075 RPM 208/230 Volts, 1/5 1075 208/230,FA#D2840

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D2840 Technical specifications

Brand

Fasco

Catalog Number

D2840

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/5

Volts

208-230

Frequency

60

Amps

1.16

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

4.15 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

-

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D2840
