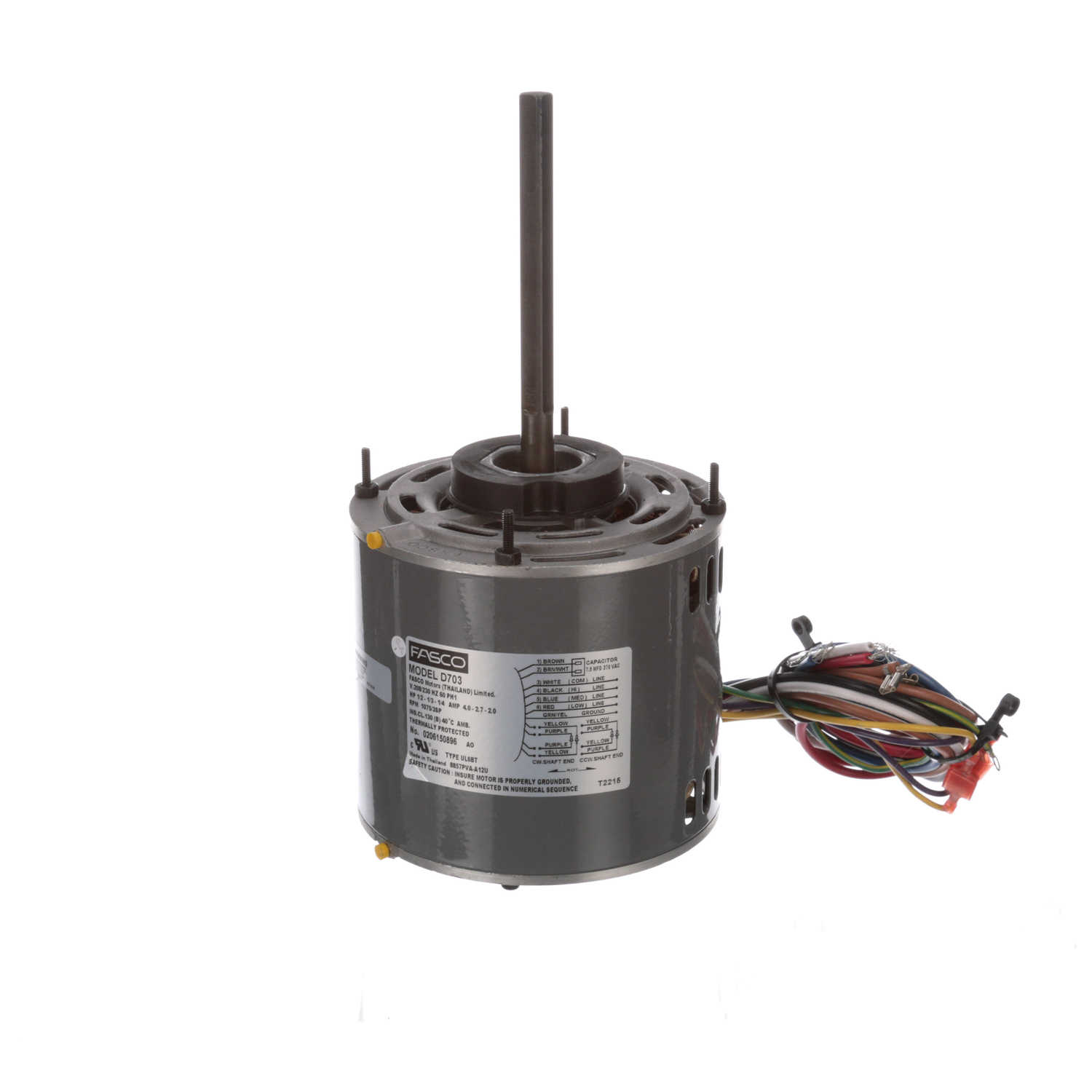

Fasco D703 1/2 HP 1075 RPM 208-230 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D703 | UPC: 818508021218

(No reviews yet) Write a Review
$232.92
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D703 Product Description

The Fasco D703 is a Direct Drive Blower Motor. Some of the specifications of the Fasco D703 Direct Drive Blower Motor include: Fasco D703 1/2 HP 1075 RPM 208-230 Volts Direct Drive Blower Motor. The warranty information for the Fasco D703 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D703 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D703 include the following: D703, 1/2 HP, 1075 RPM, 208-230 Volts, 1/2 HP 1075 RPM 208-230 Volts, 1/2 1075 208-230,FA#D703

Don't forget to order a new motor mounting kit with your new direct drive blower motor. Check out our guide on how to find the correct replacement here:

How to Select the Correct Belly Band Motor Mounting Kit

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D703 Technical specifications

Brand

Fasco

Catalog Number

D703

Product Category

HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors

HP

1/2

Volts

208-230

Frequency

60

Amps

4.0-2.7-2.0

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

3

Phase

1

Enclosure Type

Open Drip Proof

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

5.94 (in.)

Shaft Type

Double Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

-

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D703
