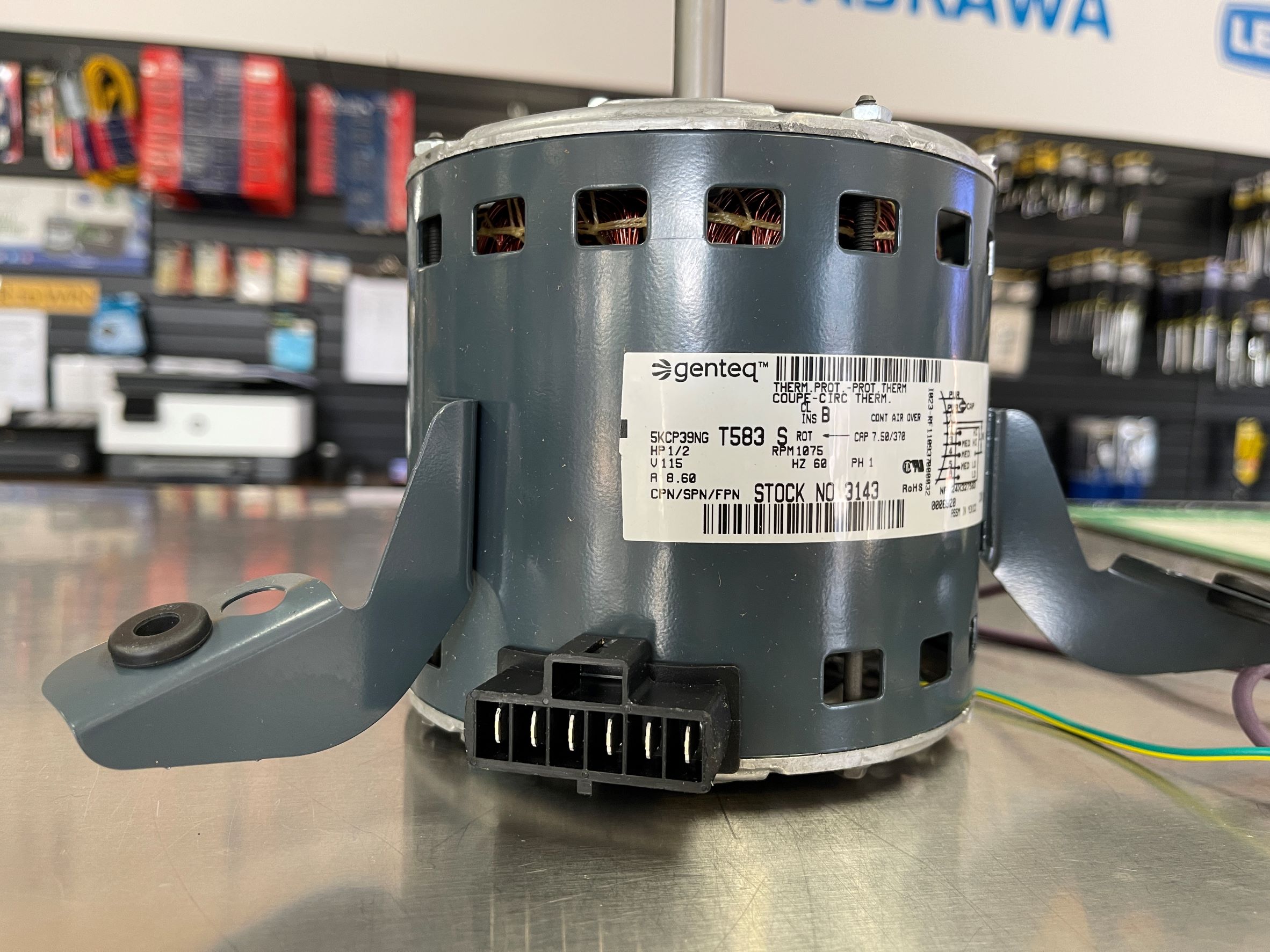

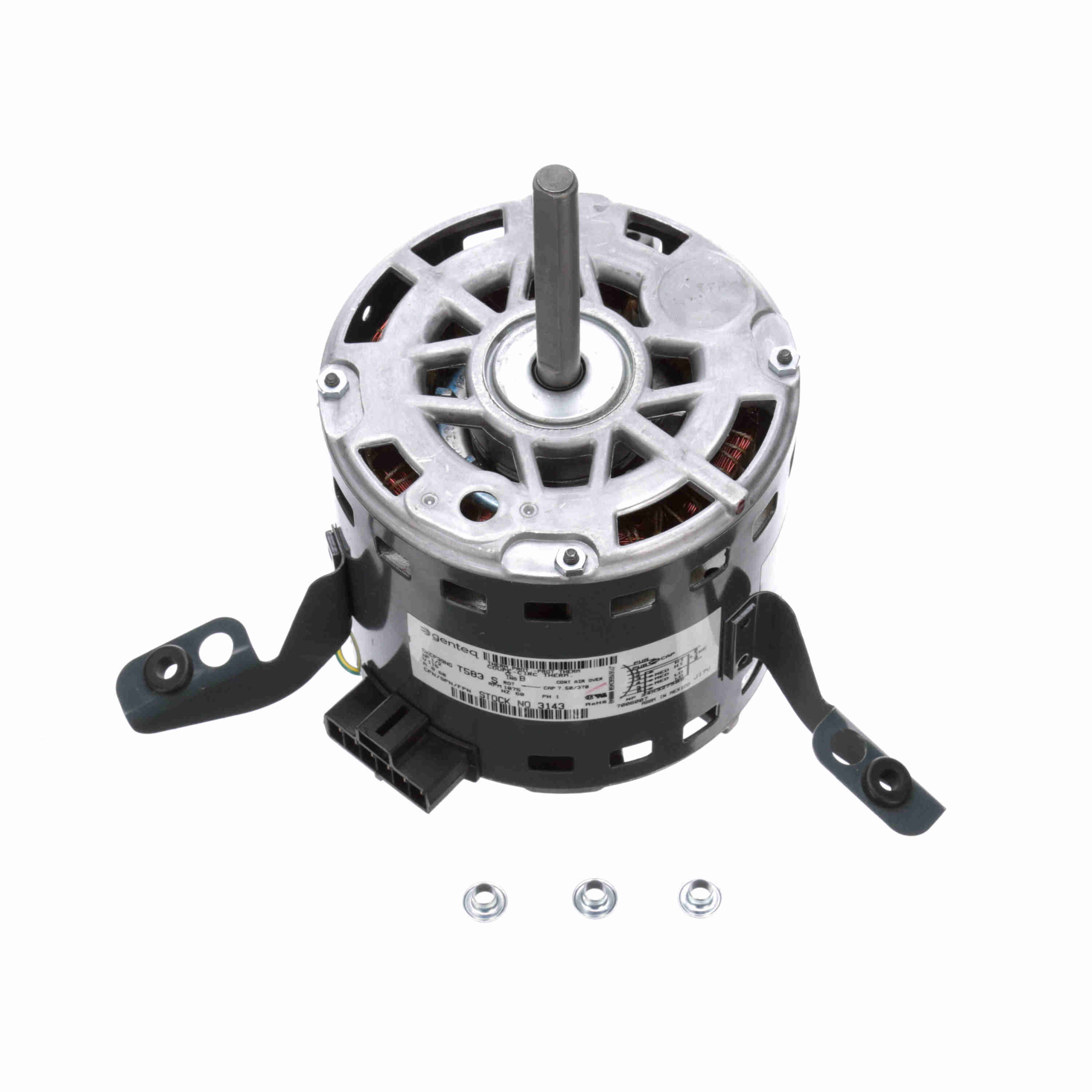

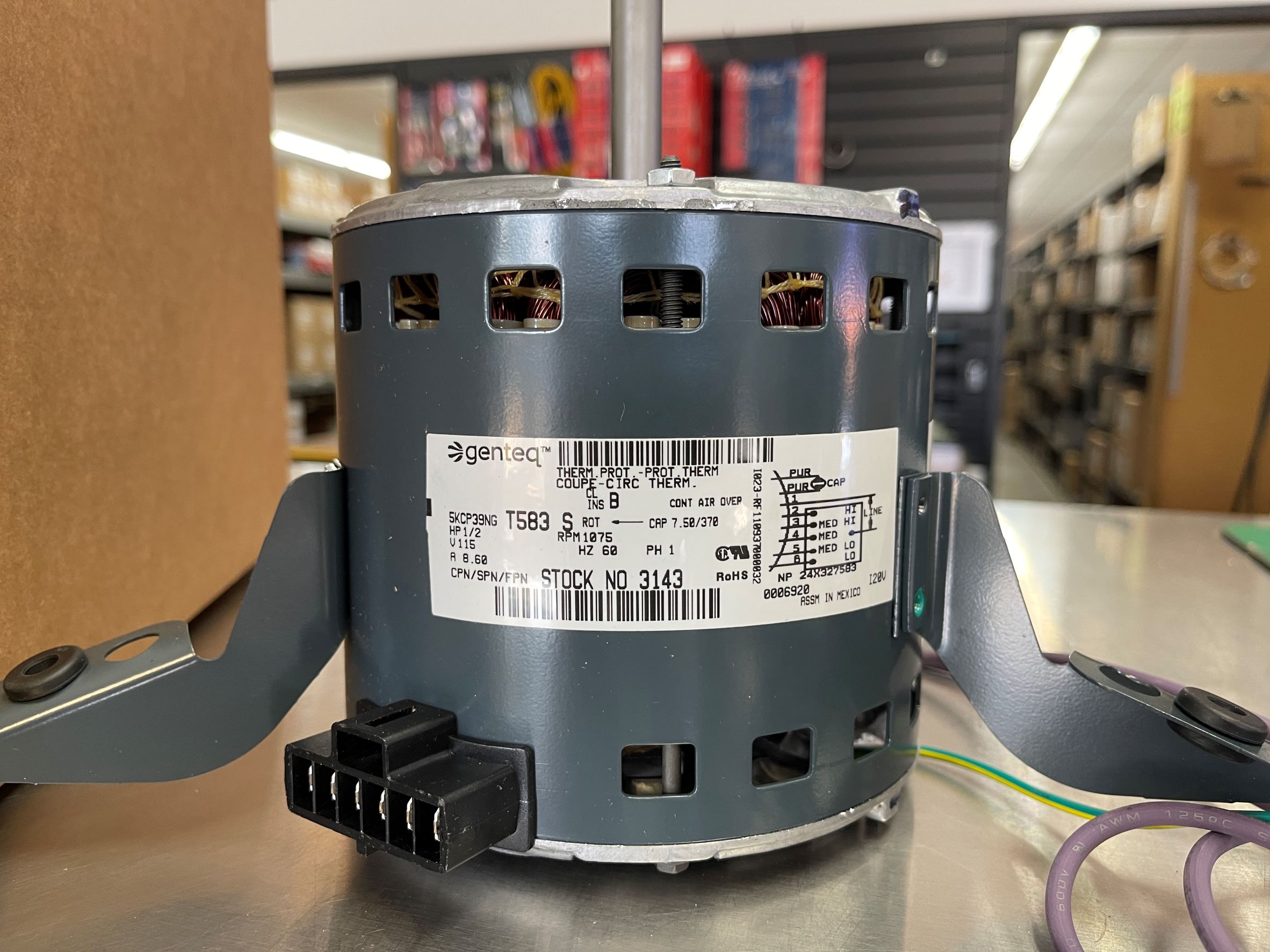

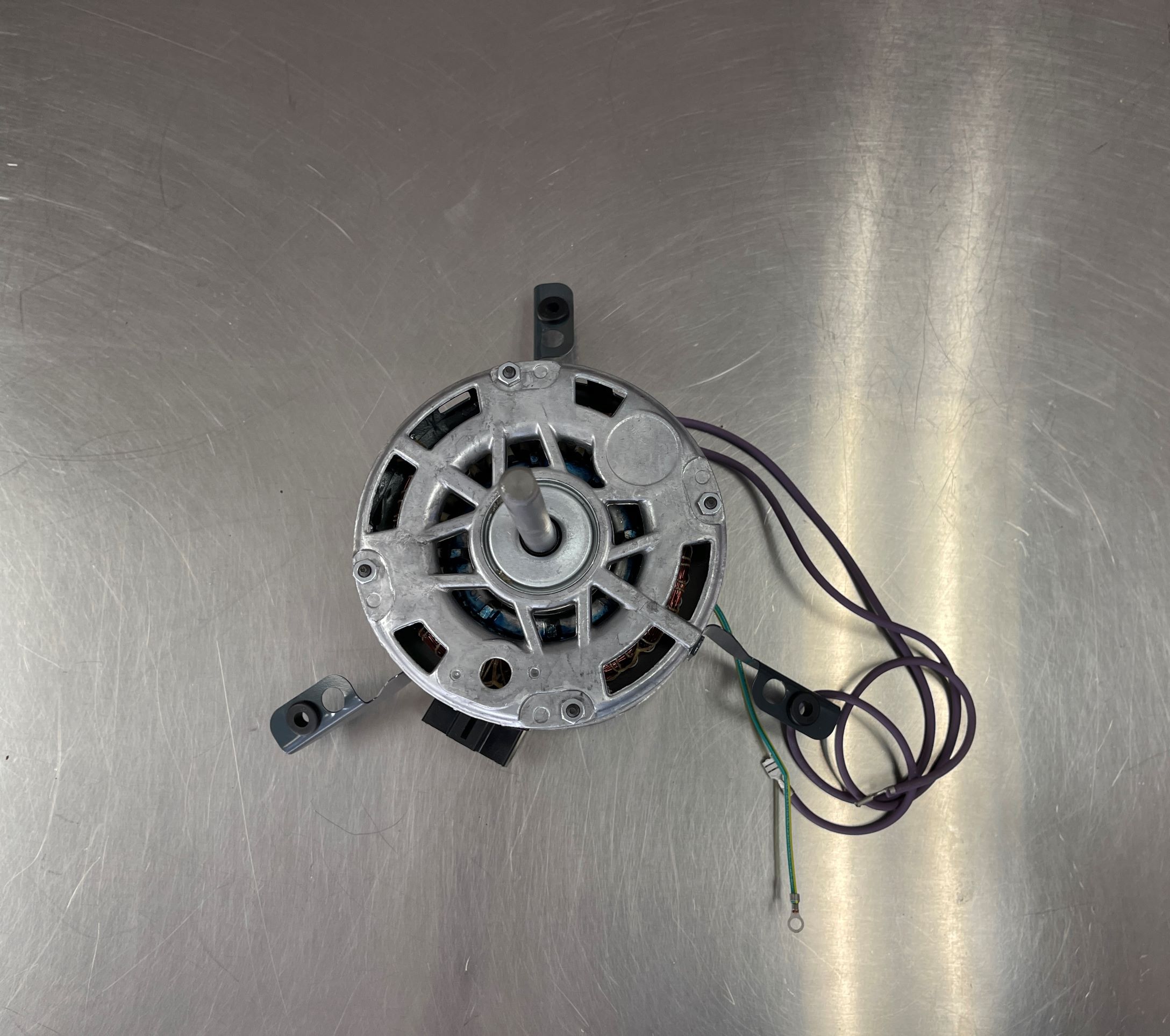

Genteq 3143 1/2 HP 1075 RPM 115 Volts Lennox Replacement Motor

Dreisilker SKU: GE-RBC-3143 | UPC: 815585021636

(1 review) Write a Review
Genteq 3143 1/2 HP 1075 RPM 115 Volts Lennox Replacement Motor

Replacement motor for Lennox furnaces

Keep your family warm all winter long

Quick and easy installation

  • Packard TOCF7.5 Run Capacitor
See the Packard 43787 for a replacement
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Genteq 3143 Product Description

The Genteq 3143 is a Lennox Replacement Motor. Some of the specifications of the Genteq 3143 include: Genteq 3143 1/2 HP 1075 RPM 115 Volts Lennox Replacement Motor. The warranty information for the Genteq 3143 Lennox Replacement Motor is the following: Genteq offers a 1-year manufacturer's warranty on their electric motors and motor accessories. The Genteq 3143 Lennox Replacement Motor Typically Ships Within 1 Business Day. Some additional keywords associated with the Genteq 3143 Lennox Replacement Motor include the following: 3143.

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

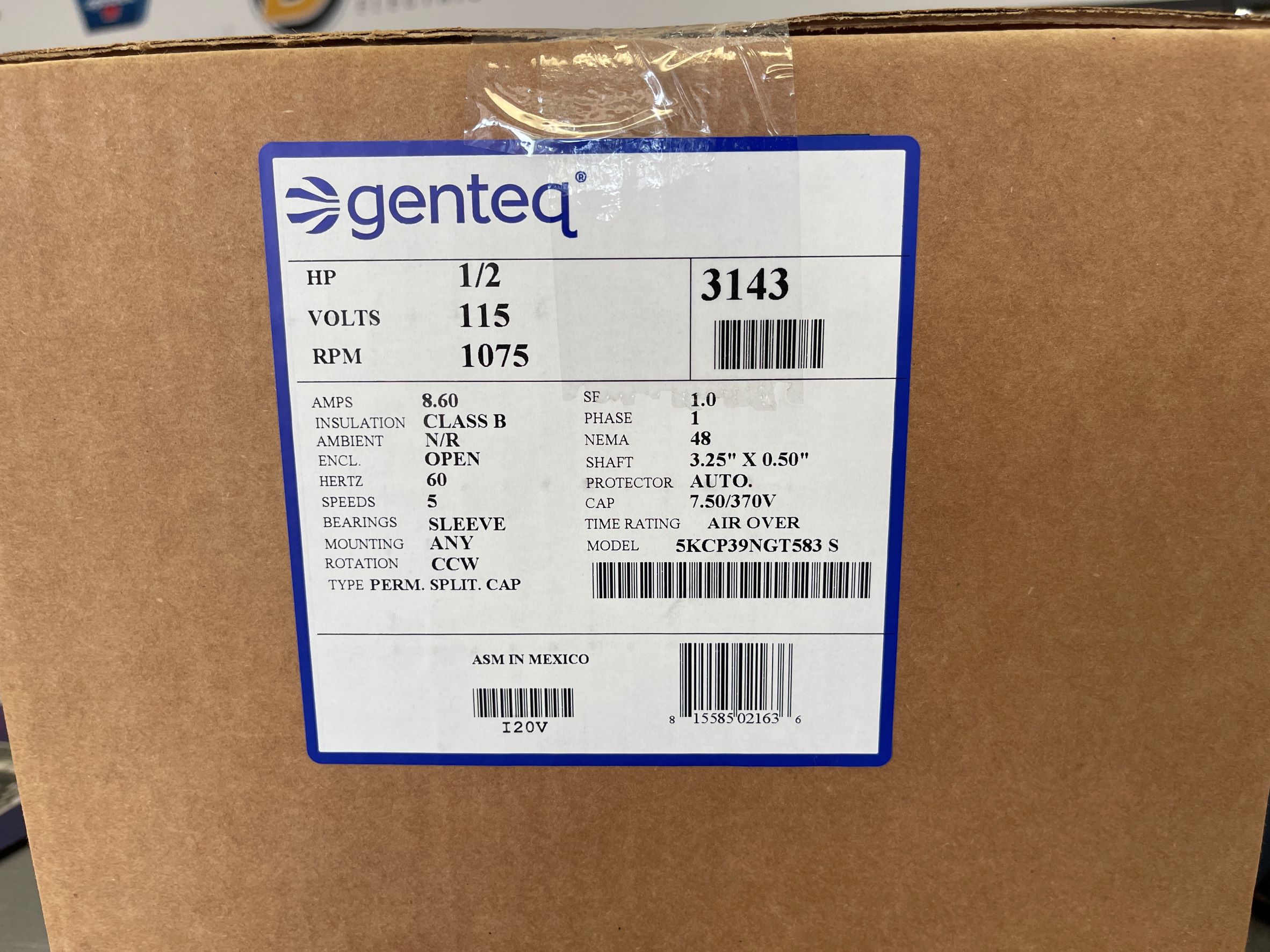

Genteq 3143 Technical specifications

Brand

Genteq

Catalog Number

3143

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

0.50

Volts

115

Frequency

60

Amps

8.60

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Number of speeds

5

Number of Phases

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise

Mounting Type

Lug

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

3.25

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

8.53

Electrical Type

Permanent Split Capacitor

Duty

Continuous Air Over

Motor Orientation

Any

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

3143
