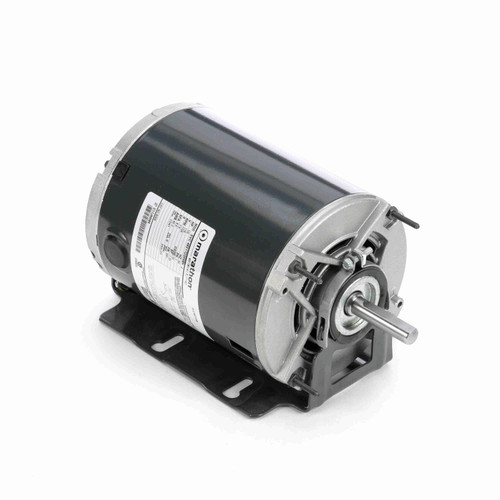

Marathon B306 1/2 HP 1725 RPM 115V Belt Drive Fan and Blower Motor

Dreisilker SKU: MA-RBC-B306 | UPC: 722856039873

(No reviews yet) Write a Review
Marathon B306 1/2 HP 1725 RPM 115 Volts Belt Drive Fan and Blower Motor
$328.15
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon B306 Product Description

The Marathon B306 is a belt drive fan and blower motor that is designed to provide reliable and efficient performance in a variety of applications. The motor's nameplate specifications include a 1/2 horsepower rating, a speed of 1725 revolutions per minute (RPM), and a voltage rating of 115 volts. In addition to these specifications, the Marathon B306 motor is also designed with a durable and rugged construction that is built to withstand the demands of continuous operation in harsh environments. The motor features a heavy-duty steel frame, ball bearings for smooth and quiet operation, and a high-quality insulation system that helps to protect the motor from overheating and other types of damage. Common applications for belt drive fan and blower motors like the Marathon B306 include use in HVAC systems, air handling units, exhaust fans, and other types of industrial and commercial ventilation systems. These motors are also commonly used in agricultural applications, such as in barns and other livestock facilities, as well as in manufacturing and processing plants where air circulation is critical for maintaining a safe and healthy work environment.

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon B306 Technical specifications

Brand

Marathon

Catalog Number

B306

Product Category

HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors

HP

1/2

Volts

115

Frequency

60

Amps

7.5

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1725

Speeds

1

Phase

1

Enclosure Type

Drip Proof

Rotation

Selective Counterclockwise

Mounting Type

Resilient Base - Extended Studs

Frame Type

48Y

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

1.88 (in.)

Shaft Type

Single Special Extension

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

10.32 (in.)

Electrical Type

Split Phase

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.25

Type of Overload Protector

No

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

22

KVA Code

M

DEM Reference

MA#B306
