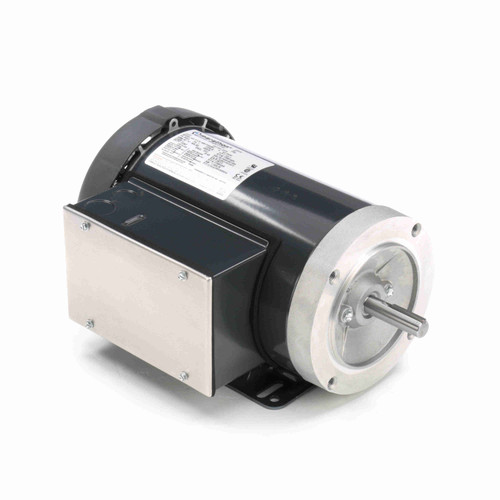

Marathon G574 1-1/2 HP 1800 RPM 115/208-230V General Purpose Motor

Dreisilker SKU: MA-RBC-G574 | UPC: 722856009494

(No reviews yet) Write a Review
Marathon G574 1-1/2 HP 1800 RPM 115/208-230 Volts General Purpose Motor
$678.96
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon G574 Product Description

The Marathon G574 is a General Purpose Motor. Some of the specifications of the Marathon G574 General Purpose Motor include: Marathon G574 1-1/2 HP 1800 RPM 115/208-230 Volts 1 Phase 56HC Frame TEFC. The warranty information for the Marathon G574 is the following: Marathon offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Marathon G574 Typically Ships Within 1 Business Day. Some additional keywords associated with the Marathon G574 include the following: G574,G574

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon G574 Technical specifications

Brand

Marathon

Catalog Number

G574

Product Category

General Purpose NEMA General Purpose Single Phase Motors > Single Phase TEFC Motors

HP

1-1/2

Volts

115/208-230

Frequency

60

Amps

15.2/8.2-7.6

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1725

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Fan Cooled

Rotation

Selective Counterclockwise

Mounting Type

Bolt-on Base

Frame Type

56HC

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

2.06 (in.)

Shaft Type

NEMA 56

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

13.81 (in.)

Electrical Type

Capacitor Start Capacitor Run

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

43

KVA Code

J

DEM Reference

MA#G574
