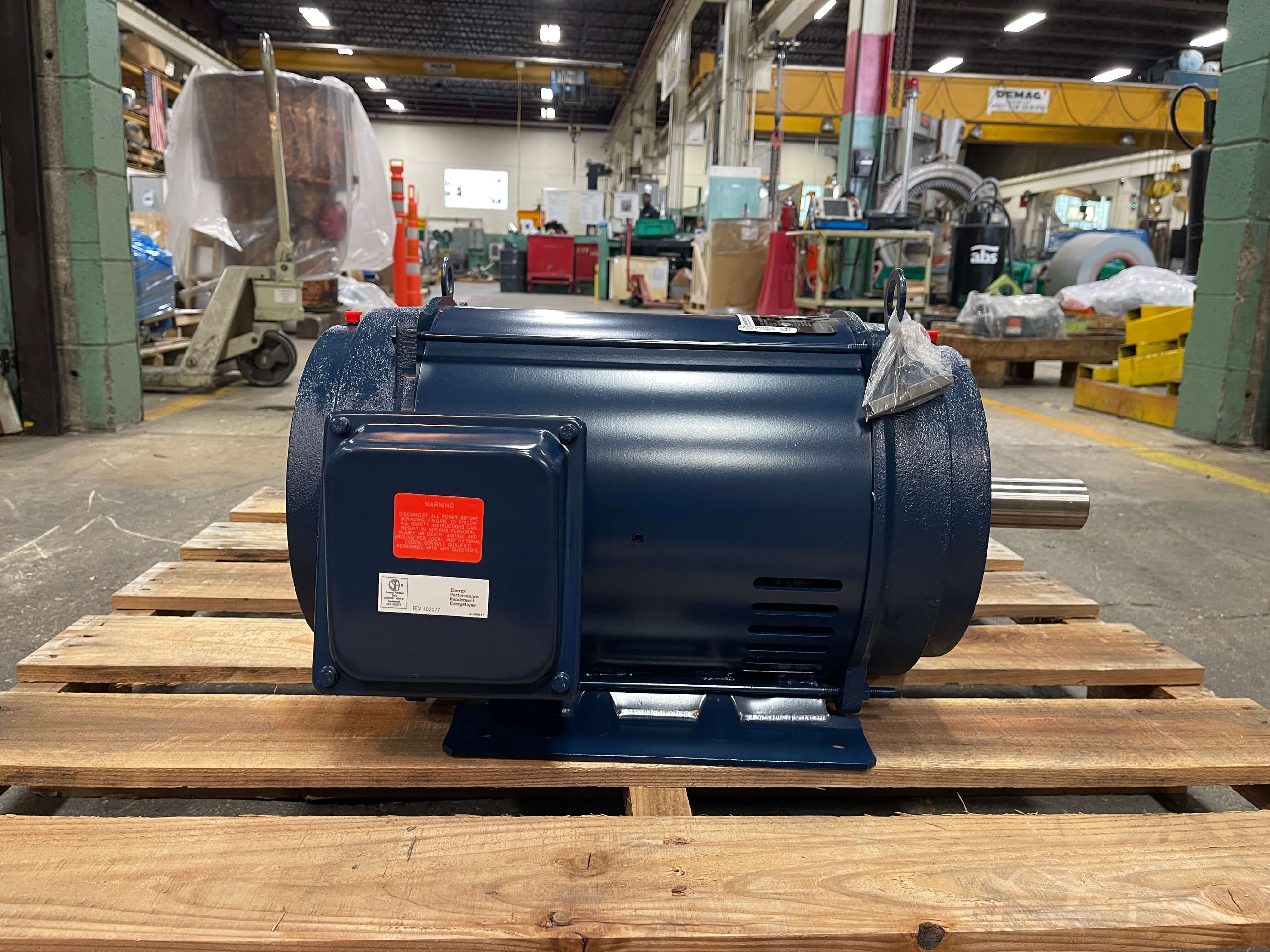

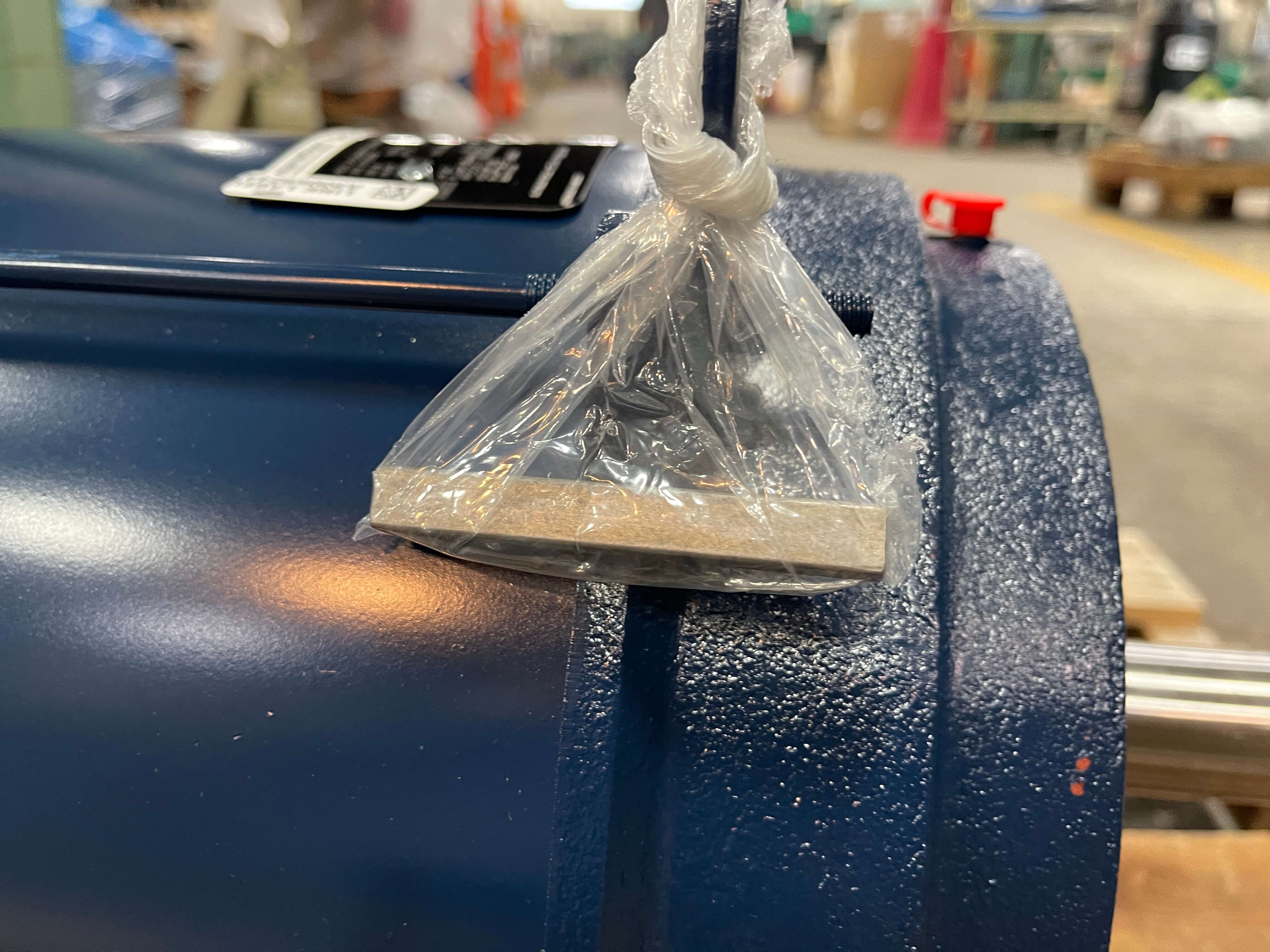

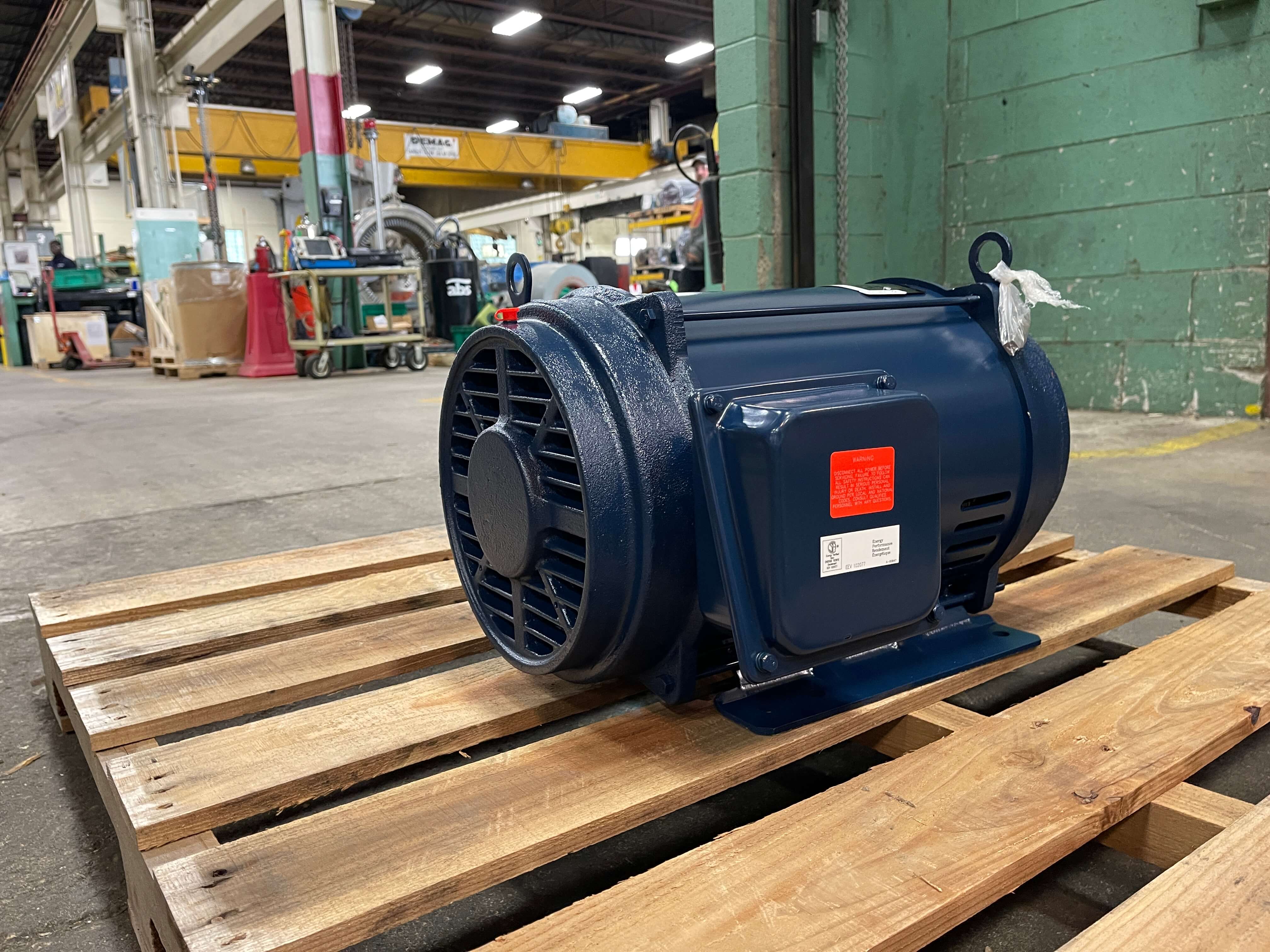

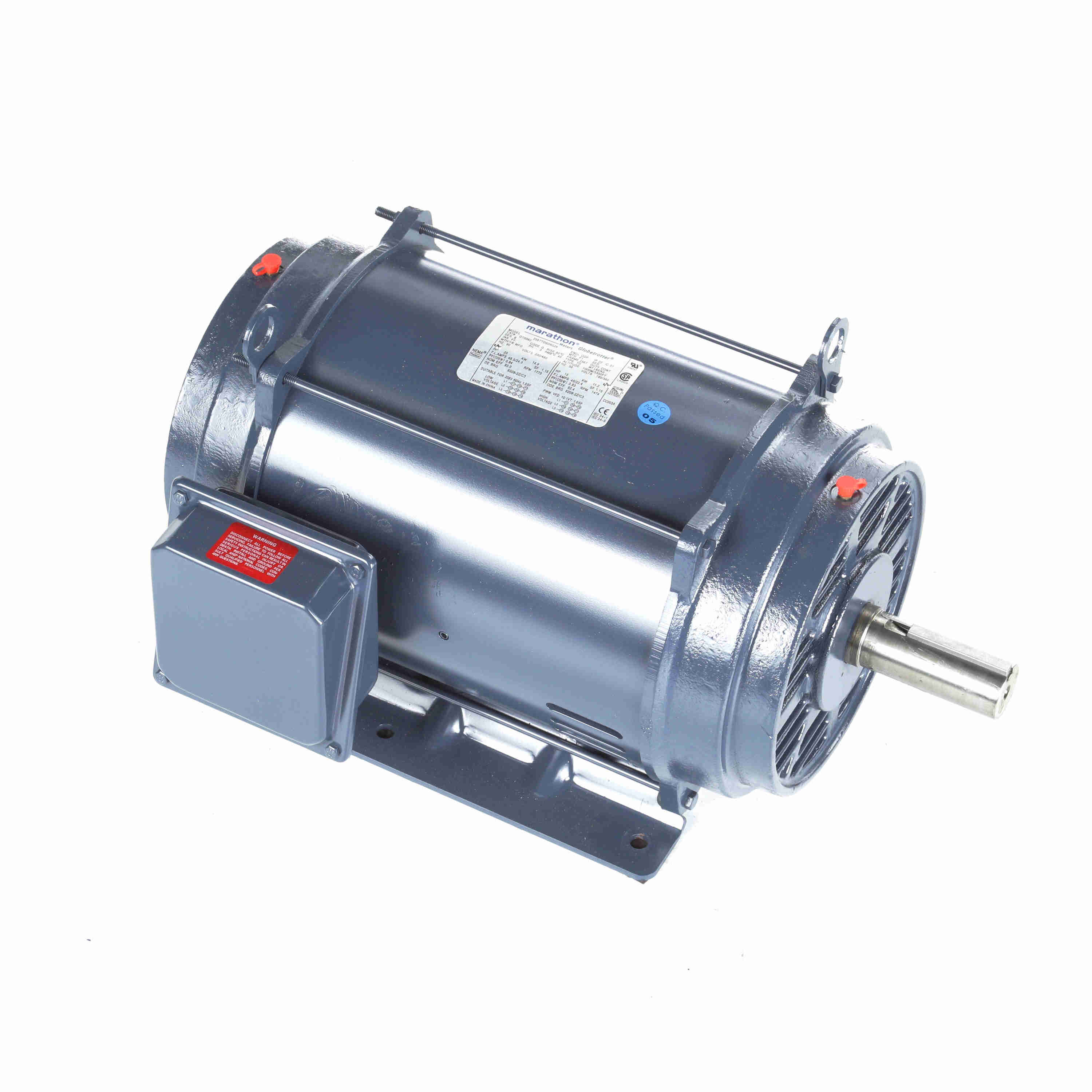

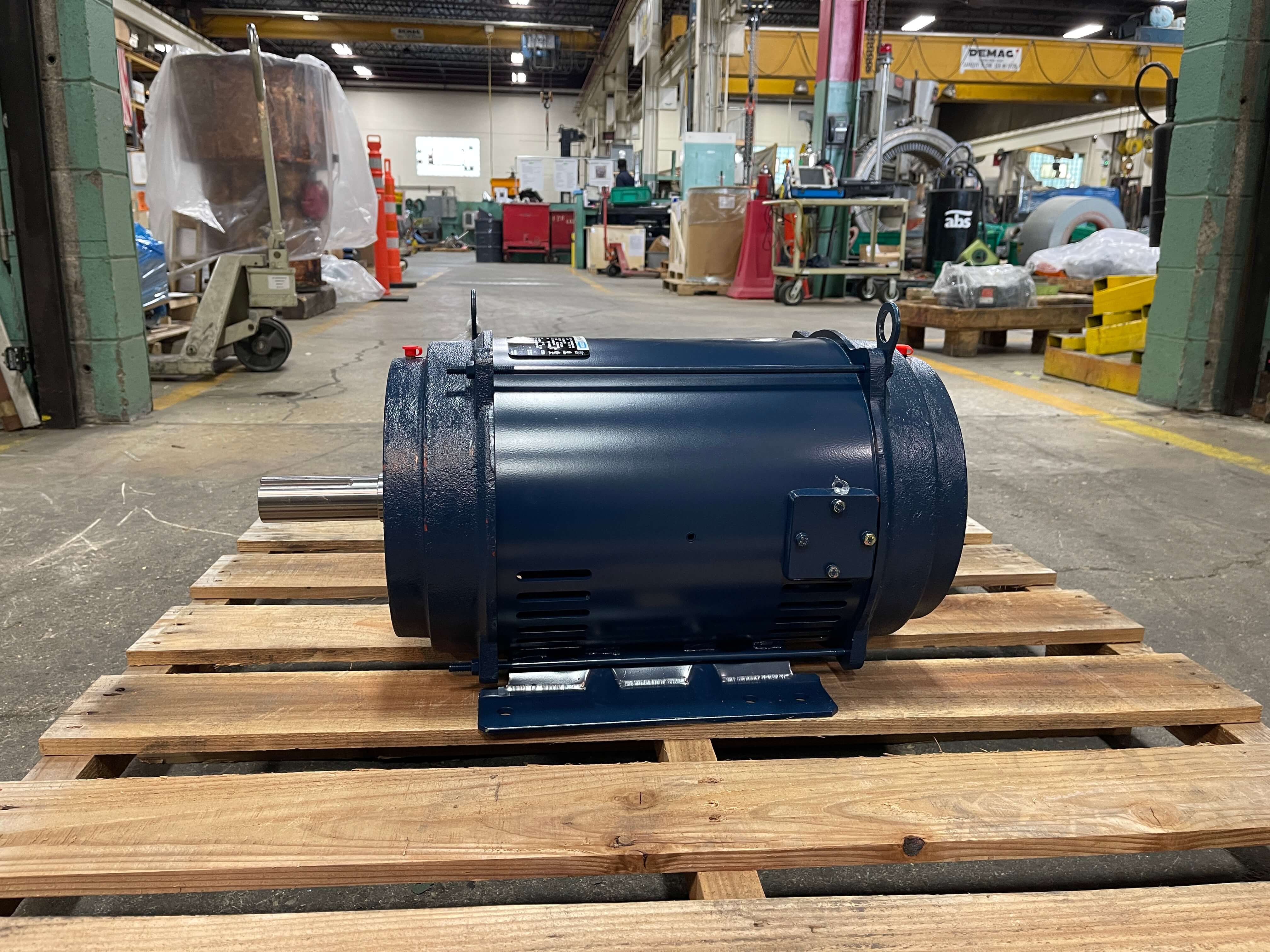

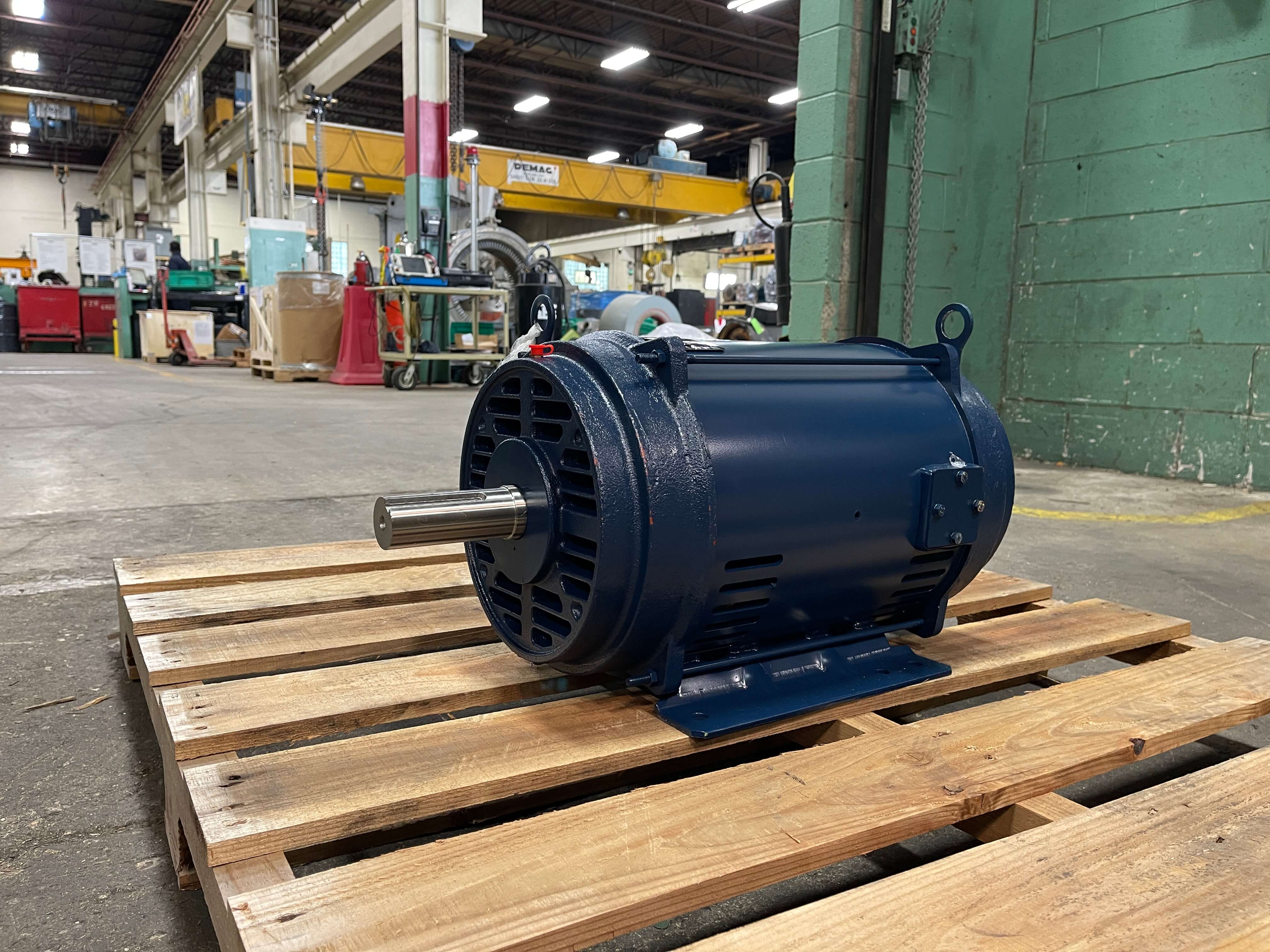

Marathon GT0062 20 HP 1800 RPM 230/460 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-GT0062 | UPC: 722856060440

(No reviews yet) Write a Review
$2,071.04

Reliable general purpose motor

Top seller, trusted by many

Model number: 256TTDBD6026

Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon GT0062 Product Description

The Marathon Globetrotter GT0062 General Purpose Motor is perfect for a variety of industrial and commercial applications. With 20 HP of power, this 3-phase motor can handle even the most demanding tasks. It features a rugged design that is built to last, with a frame that is resistant to vibrations and other forces. You can trust the Marathon name when it comes to quality and durability. This motor is also easy to install and maintain, so you can keep your operation running smoothly. Order your Marathon Globetrotter GT0062 General Purpose Motor today!

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon GT0062 Technical specifications

Brand

Marathon

Catalog Number

GT0062

Product Category

General Purpose NEMA General Purpose Three Phase Motors > Three Phase ODP Motors

HP

20

Volts

208-230/460

Frequency

60

Amps

53.0-48.5/24.3

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1770

Speeds

1

Phase

3

Enclosure Type

Drip Proof

Rotation

Selective Clockwise

Mounting Type

Rigid Base

Frame Type

256T

Frame Material

Rolled Steel

Shaft Diameter

1-5/8 (in.)

Shaft Extension

4 (in.)

Shaft Type

T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

24.22 (in.)

Electrical Type

Squirrel Cage Inverter Rated

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

F

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

22

KVA Code

G

DEM Reference

MA#GT0062
