Marathon X440 1/6 HP 1075 RPM 208-230 Volts Condenser Fan Motor

Dreisilker SKU: MA-RBC-X440 | UPC: 722856037695

(No reviews yet) Write a Review
Marathon X440 1/6 HP 1075 RPM 208-230 Volts Condenser Fan Motor
$62.45

Keep your homes cool during summer

Popular condenser fan motor

Quality, dependable motor

  • Packard TOCF5 Run Capacitor
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon X440 Product Description

The Marathon X440 is a condenser fan motor rated at 1/6 HP and 1075 RPM for 208-230 volts 1 phase supply. The X440 has a 48Y frame with a 1/2 shaft diameter. It's an open (shaft down) enclosure motor and has ball bearings.

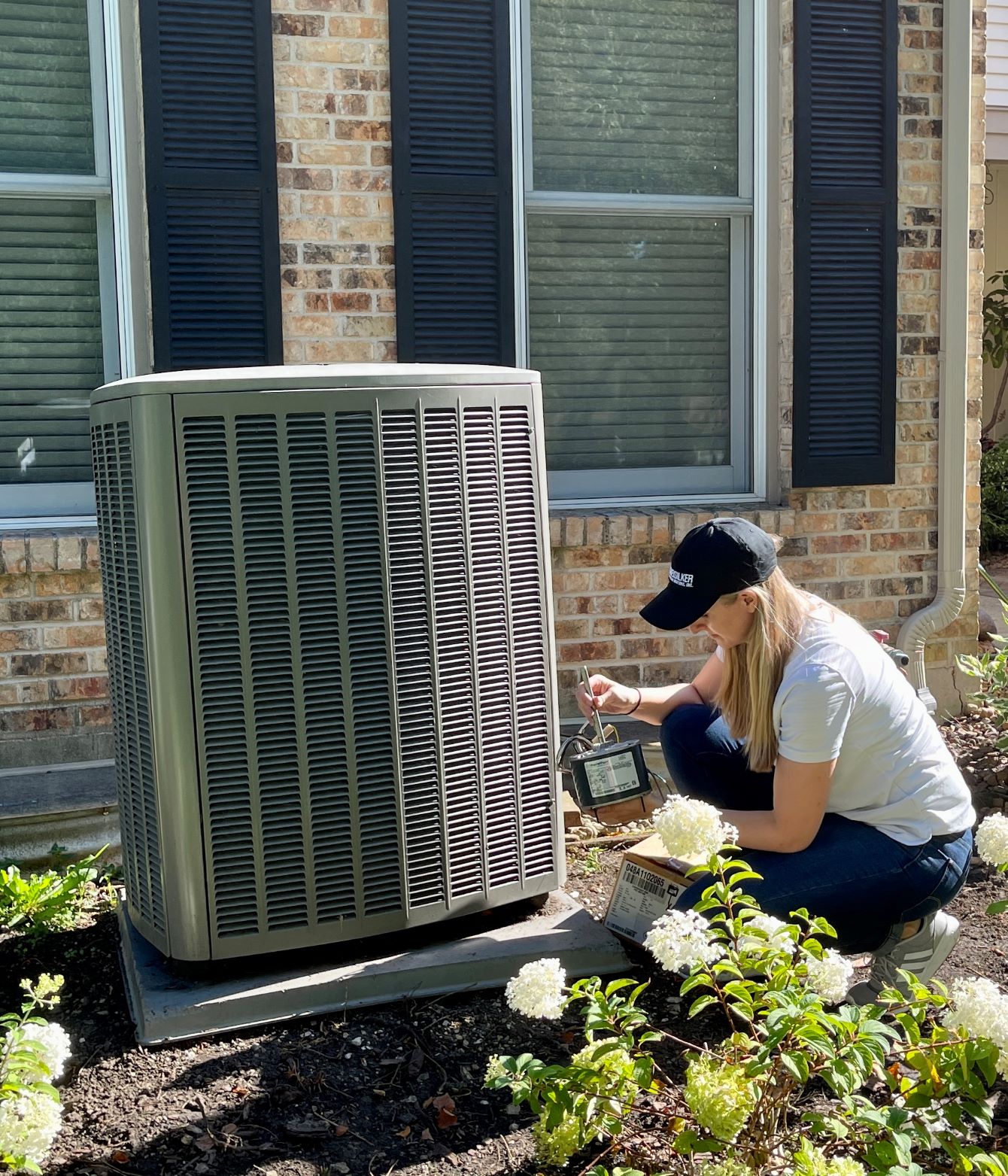

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Recommended Additional Products

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon X440 Technical specifications

Brand

Marathon

Catalog Number

X440

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1/6

Volts

208-230

Frequency

60

Amps

0.97-0.90

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

1

Phase

1

Enclosure

Open Air Over

Rotation

Selective Counterclockwise

Mounting Type

Round - Extended Studs

Frame

48Y

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

6.06 (in.)

Shaft Type

Single Special Extension

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

10.50 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continous

Motor Orientation

Horizontal

Service Factor

1

Type of Overload Protector

Automatic Lock Rotor Only

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

10

KVA Code

A

DEM Reference

MA#X440
