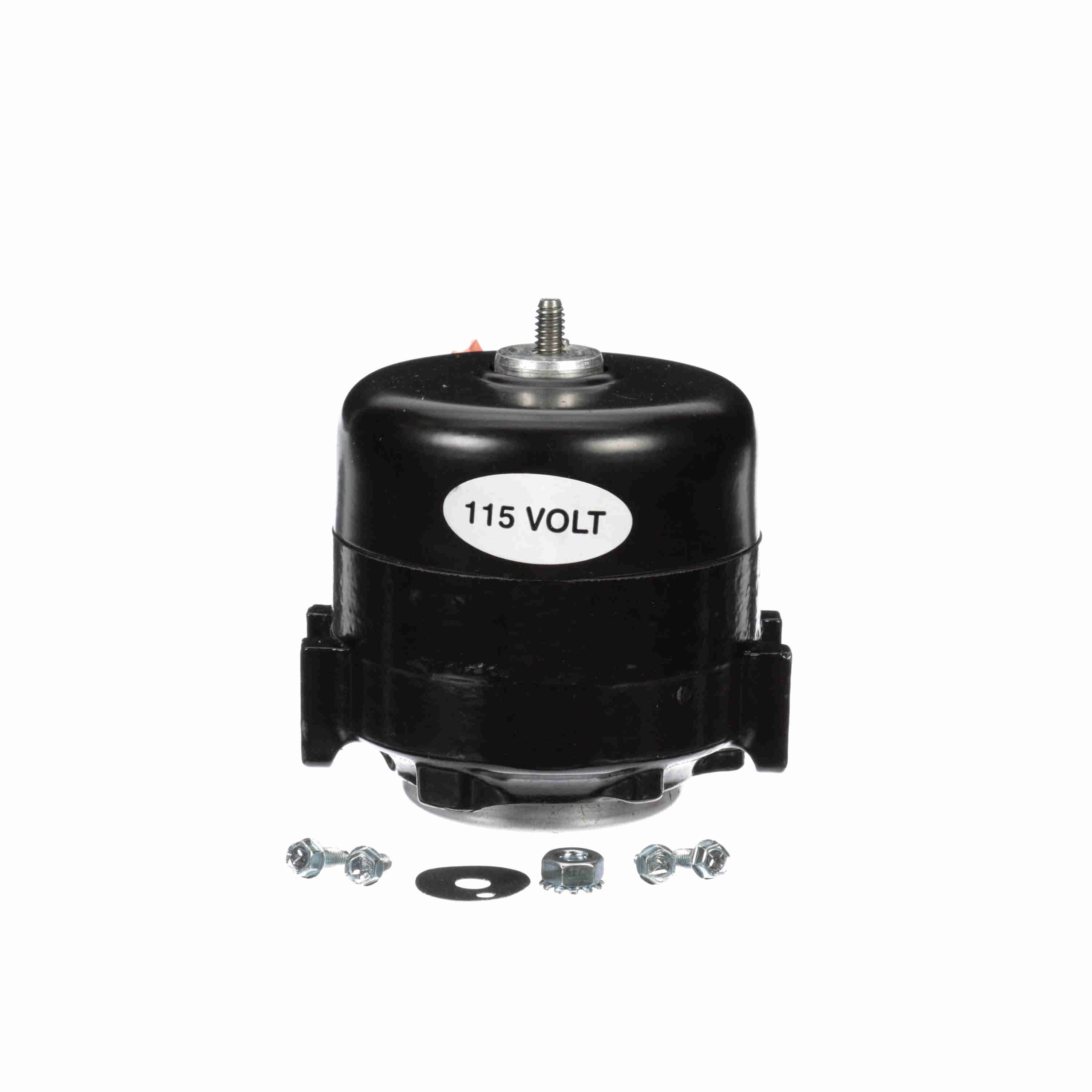

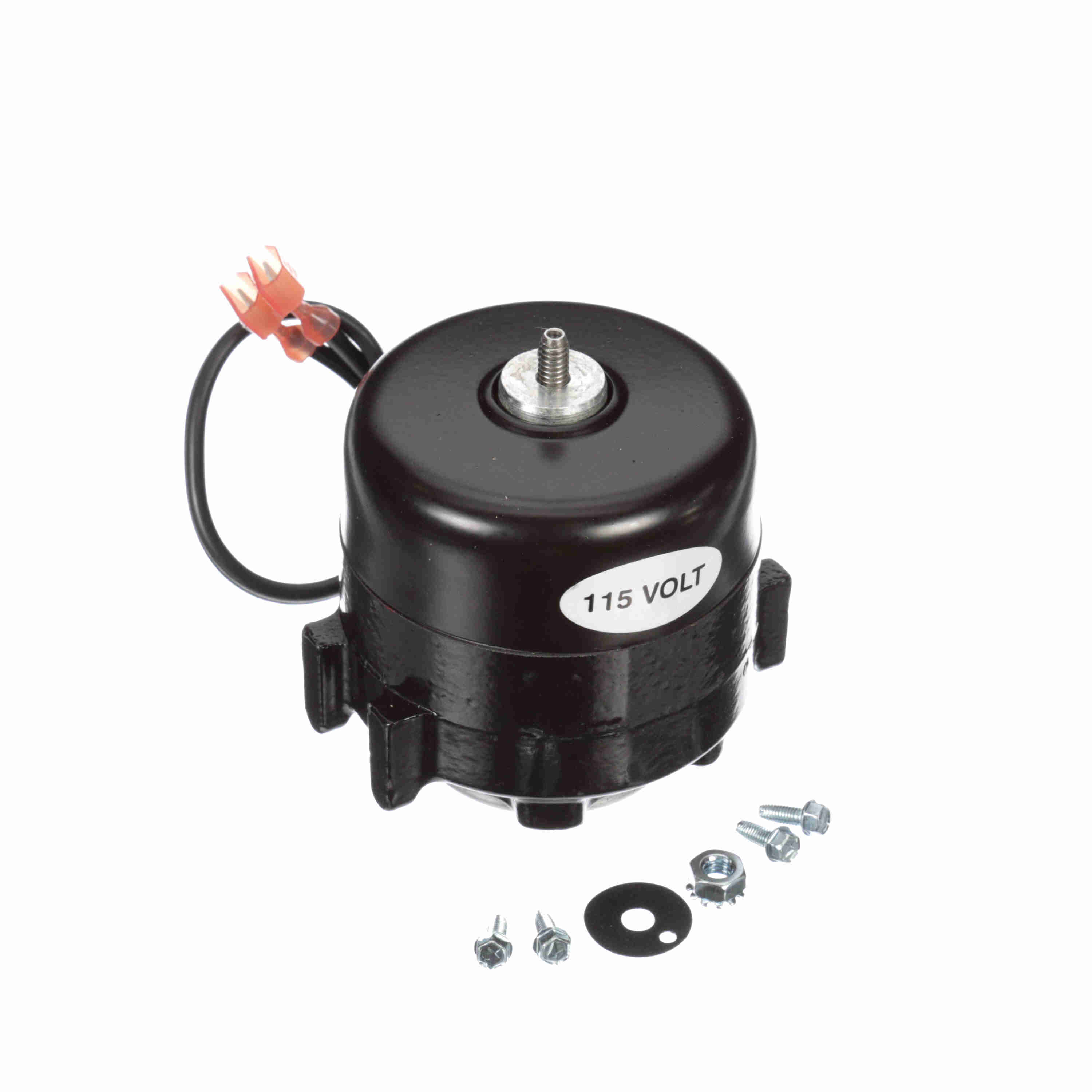

The Morrill 5r017 is obsolete. Please see the Morrill 5R022 for a replacement here: Morrill 5R022
38 Watts 1550 RPM 115 Volts 0.9 Amps CCW Rotation
The Morrill 5r017 is obsolete. Please see the Morrill 5R022 for a replacement here: Morrill 5R022
38 Watts 1550 RPM 115 Volts 0.9 Amps CCW Rotation
THE DREISILKER PROCESS
Order Today
Simply click the add to cart button and check out securely today to get your order in progress.
Ships Quickly
Fast movers ship same business day when ordered by 2:00 pm CST.
Back to Normal
Get your systems up and running so you can go back to relaxing.
Brand
Morrill Motors
Catalog Number
5R017
Product Category
HVAC/R Motors > Unit Bearing Motors
Watts
38
Volts
115
Frequency
60
Amps
0.9
RPM (Number of Poles)
4 (1201 RPM to 1800 RPM)
RPM (Nameplate)
1550
Number of speeds
-
Number of Phases
1
Enclosure Type
Totally Enclosed Air Over
Rotation
Counterclockwise Shaft End
Mounting Type
2 BOSS/OSE 3 HOLES
Frame Type
Unit Bearing
Frame Material
Cast Iron
Shaft Diameter (In.)
0.250
Shaft Extension (In.)
0.33
Shaft Type
1/4-20 THREAD
DE Bearing Type
-
ODE Bearing Type
-
C-Dimension (In.)
4.14
Electrical Type
Electronically Commutated Motor
Duty
Continuous Air Over
Motor Orientation
Any
Service Factor
-
Type of Overload Protector
Electronically Protected
Insulation Class
B
Max Ambient
55°C
UL
Yes
CE
N
CSA
Y
IP Code
-
KVA Code
-
DEM Reference
NOHP
Great service exact replacement for my master bilt
