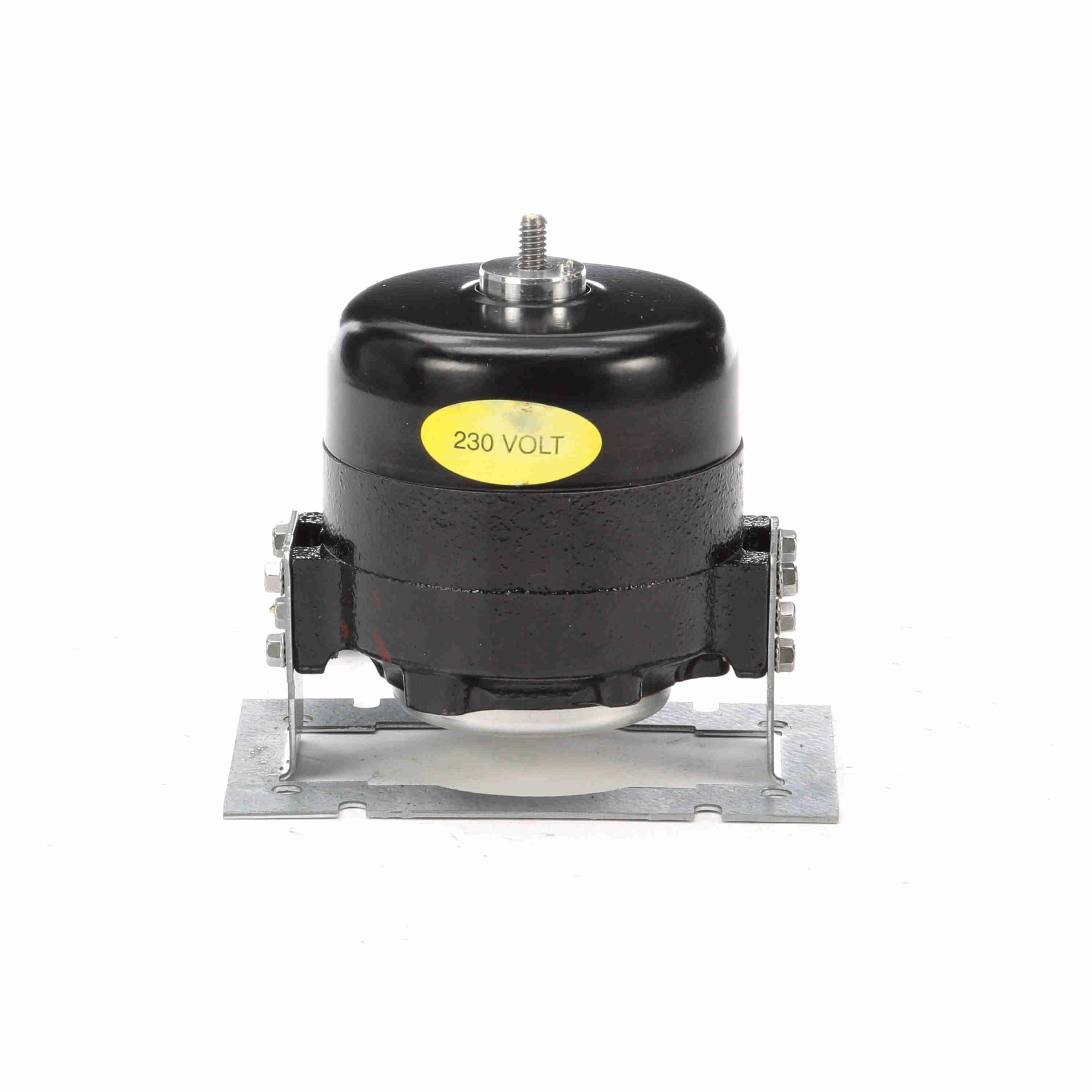

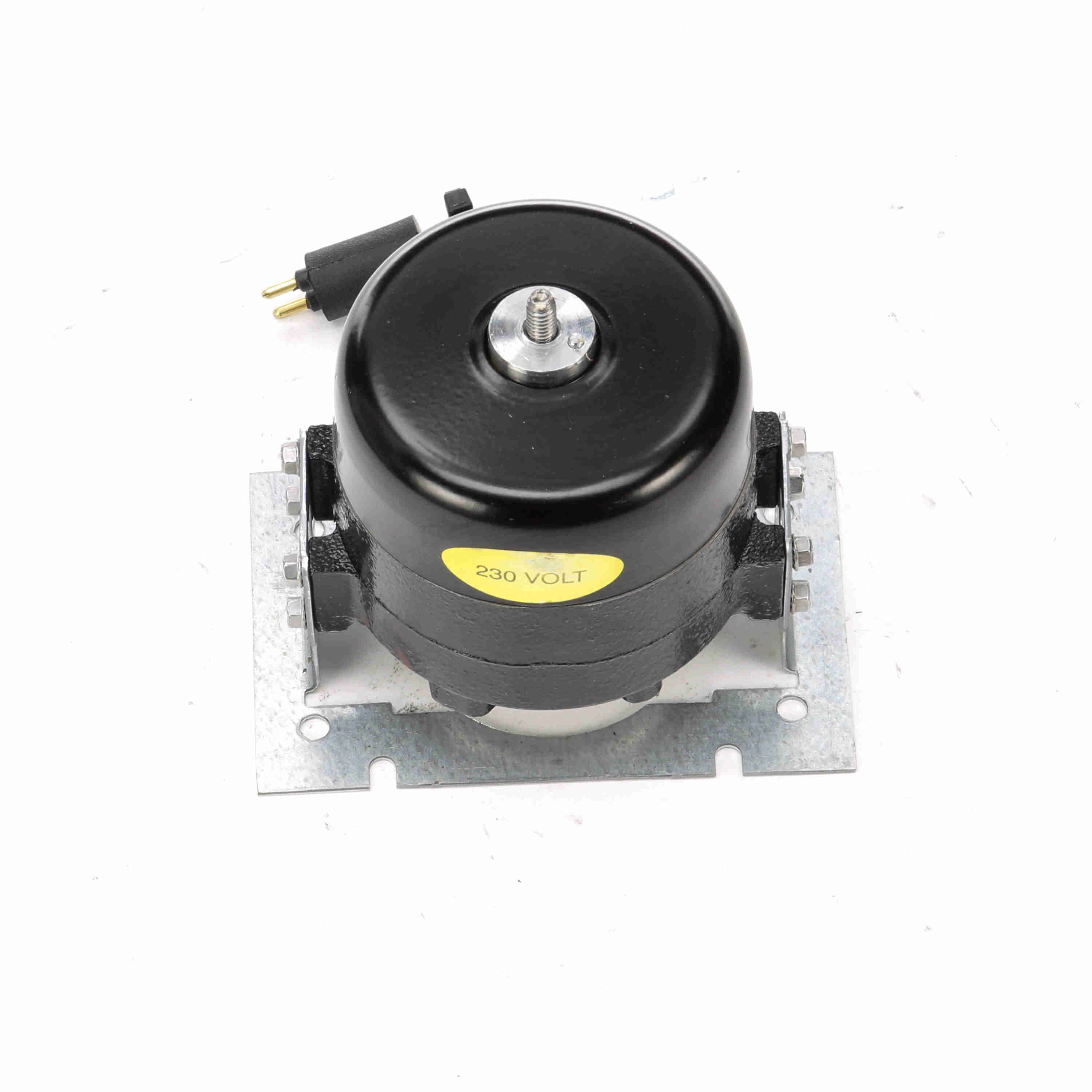

Morrill 5R023 38 W 1550 RPM 230V ARKTIC SSC ECM Refrigeration Motor

Dreisilker SKU: MO-RBC-5R023 | UPC: 815585024866

(No reviews yet) Write a Review
Morrill 5R023 38 Watts 1550 RPM 230 Volts ARKTIC SSC ECM Refrigeration Motor
$236.60
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Morrill 5R023 Product Description

38 Watts 1550 RPM 208-230 Volts 0.45 Amps CCW Rotation

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Morrill 5R023 Technical specifications

Brand

Morrill Motors

Catalog Number

5R023

Product Category

HVAC/R Motors > Unit Bearing Motors

Watts

38

Volts

230

Frequency

60

Amps

0.45

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Number of speeds

-

Number of Phases

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Bracket

Frame Type

Unit Bearing

Frame Material

Cast Iron

Shaft Diameter (In.)

0.250

Shaft Extension (In.)

0.33

Shaft Type

1/4-20 THREAD

DE Bearing Type

-

ODE Bearing Type

-

C-Dimension (In.)

4.59

Electrical Type

Electronically Commutated Motor

Duty

Continuous Air Over

Motor Orientation

Any

Service Factor

-

Type of Overload Protector

Electronically Protected

Insulation Class

B

Max Ambient

55°C

UL

Yes

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

NOHP
