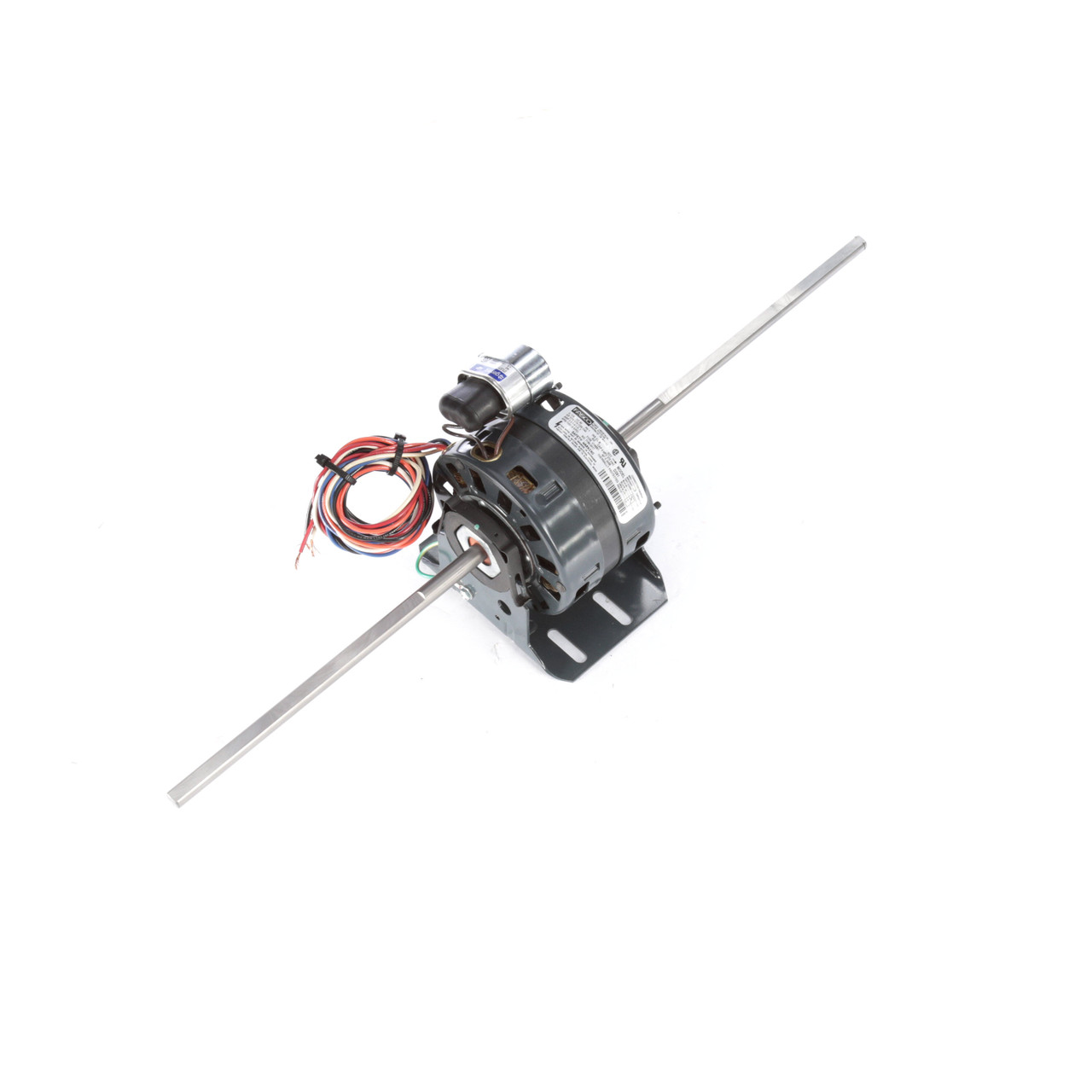

Precision Electric Motors D291P 1/10 HP 1050 RPM 115 Volts Direct Drive Blower Motor

Dreisilker SKU: D291P | UPC: 815585029427

(No reviews yet) Write a Review
$326.67

Replaces the Fasco D291

Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Precision Electric Motors D291P Product Description

The Precision Electric Motors D291P is a Direct Drive Blower Motor and replaces the Fasco D291. Some of the specifications of the D291P Direct Drive Blower Motor include: D291P 1/10 HP 1050 RPM 115 Volts Direct Drive Blower Motor. The warranty information for the D291P is the following: Precision Electric Motors offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The D291P Typically Ships Within 1 Business Day. Some additional keywords associated with the D291P include the following: D291, 1/10 HP, 1050 RPM, 115 Volts, 1/10 HP 1050 RPM 115 Volts, 1/10 1050 115



THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Precision Electric Motors D291P Technical specifications

Brand

Precision Electric Motors

Catalog Number

D291P

Product Category

HVAC/R Motors > Fan Coil / Room Air Conditioner Motors

HP

1/10

Volts

115

Frequency

60

Amps

2.2/1.4/1.0/0.7

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1050

Speeds

4

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Lead End

Mounting Type

Resilient Base

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

10.75 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

24.68 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

PEMS#D291P
