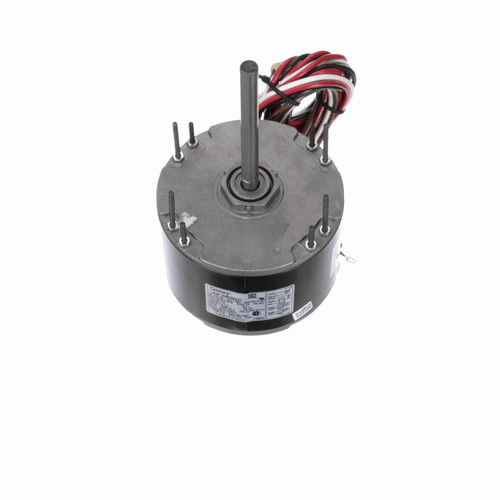

Century 136A 1/6 HP 1075 RPM 115 Volts Unit Heater Motor

Dreisilker SKU: CE-RBC-136A

(No reviews yet) Write a Review
Century 136A 1/6 HP 1075 RPM 115 Volts Unit Heater Motor
$250.17
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Century 136A 1/6 HP 115 Volts 1075 RPM 7.5MFD-370V Capacitor 2.4 Amps REV Rotation

Technical specifications

Brand

Century

Catalog Number

136A

Product Category

HVAC/R Motors > Unit Heater Motors

HP

0.17

Volts

115

Frequency

60

Amps

2.4,1.6

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Number of speeds

2

Number of Phases

1

Enclosure Type

Totally Enclosed

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

48Y

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

5.50

Shaft Type

Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

9.68

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

Horizontal

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

60°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#136A
