Century 7FD1056 1/2 HP 1075 RPM 277 Volts Direct Drive Blower Motor

Dreisilker SKU: CE-RBC-7FD1056 | UPC: 7.87E+11

(No reviews yet) Write a Review
$335.23
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Chicago, IL (Grand Ave.)

1 units in stock

Marietta, GA (Atlanta)

12 units in stock

Crystal Lake, IL

1 units in stock

Century 7FD1056 Product Description

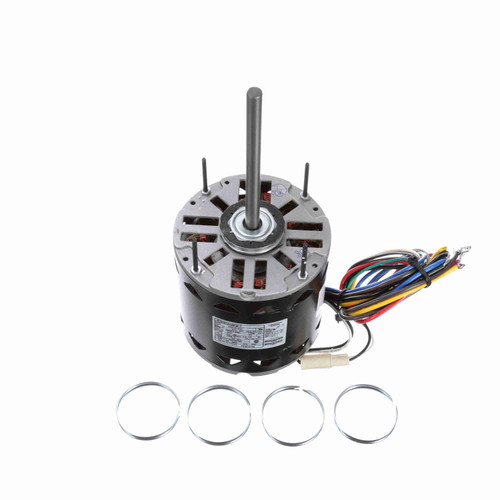

The Century 7FD1056 is a Direct Drive Blower Motor. Some of the specifications of the Century 7FD1056 Direct Drive Blower Motor include: 1/2 HP 1075 RPM 277 Volts Reversible Open Ventilated Sleeve Bearings 5.6" Diameter 1/2" Shaft Diameter. The warranty information for the Century 7FD1056 is the following: Century offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Century 7FD1056 Typically Ships Within 1 Business Day. Some additional keywords associated with the Century 7FD1056 include the following: 7FD1056,CE#7FD1056

Century 7FD1056 Technical specifications

Brand

Century

Catalog Number

7FD1056

Product Category

HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors

HP

1/2

Volts

277

Frequency

60

Amps

2.2

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

3

Phase

1

Enclosure Type

Open Enclosed

Rotation

Reversible

Mounting Type

Resilient Ring/Extended Studs

Frame Type

48Y

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

6.4 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

12.30 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

Horizontal

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

50°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

CE#7FD1056
