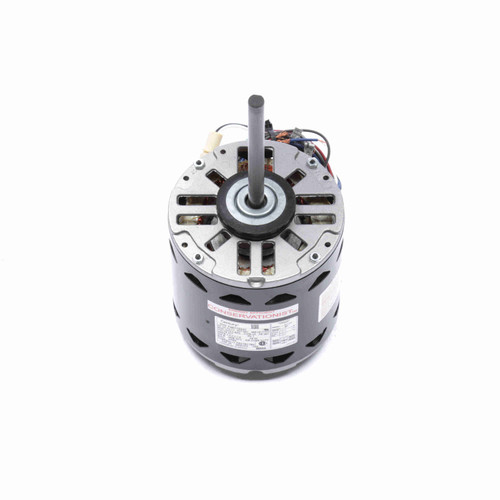

Century 9605A 3/4 HP 1075 RPM 277 Volts Direct Drive Blower Motor

Dreisilker SKU: CE-RBC-9605A

(No reviews yet) Write a Review
Century 9605A 3/4 HP 1075 RPM 277 Volts Direct Drive Blower Motor
$342.09
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

3/4 HP 1075 RPM 277 Volts Reversible Open Ventilated Sleeve Bearings 5.6" Diameter 1/2" Shaft Diameter

Technical specifications

Brand

Century

Catalog Number

9605A

Product Category

HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors

HP

0.75

Volts

277

Frequency

60

Amps

3.9,2.2,1.6

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Number of speeds

3

Number of Phases

1

Enclosure Type

Open Enclosed

Rotation

Reversible

Mounting Type

Resilient Rings

Frame Type

48Y

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

5.50

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

11.49

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

Any

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#9605A
