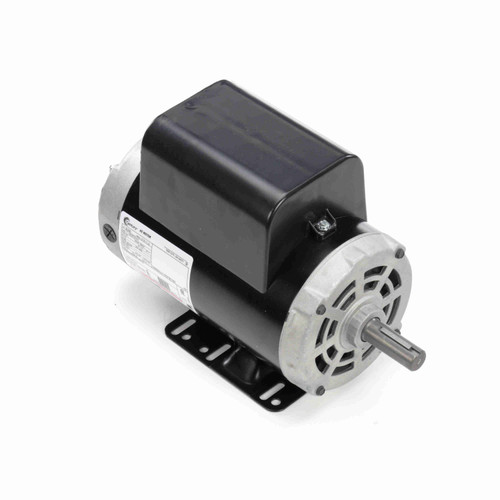

Century B386 5 HP 3450 RPM 208-230 Volts Air Compressor Motor

Dreisilker SKU: CE-RBC-B386

(No reviews yet) Write a Review
Century B386 5 HP 3450 RPM 208-230 Volts Air Compressor Motor
$606.86
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Century B386 5 HP 3450 RPM 208-230 Volts 22.0 Amps

Technical specifications

Brand

Century

Catalog Number

B386

Product Category

NEMA Definite Purpose AC Motors > Air Compressor Motors

HP

5

Volts

208-230

Frequency

60

Amps

22.0

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3450

Number of speeds

1

Number of Phases

1

Enclosure Type

Drip Proof

Rotation

Clockwise

Mounting Type

Rigid Base

Frame Type

56HZ

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.875

Shaft Extension (In.)

2.31

Shaft Type

Keyed

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

14.56

Electrical Type

Capacitor Start, Capacitor Run, Single Or Dual Voltage

Duty

Continuous

Motor Orientation

-

Service Factor

1.15

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#B386
