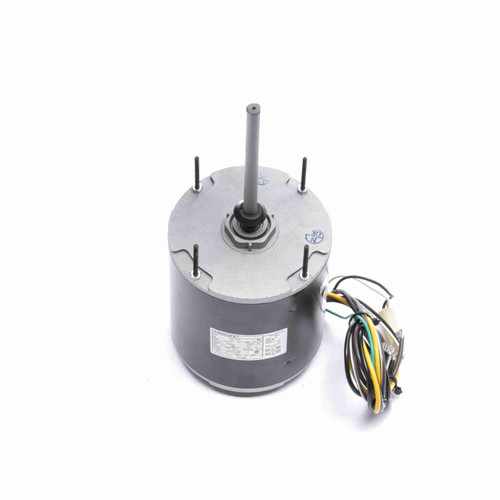

Century F1106 1 HP 1075 RPM 208-230 Volts Condenser Fan Motor

Dreisilker SKU: CE-RBC-F1106 | UPC: 786674019776

(No reviews yet) Write a Review
$378.71
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marietta, GA (Atlanta)

1 units in stock

Century F1106 Product Description

The Century F1106 is a condenser fan motor rated at 1 HP and 1075 RPM for 208-230 volts 1 phase supply. The F1106 has a 48Y frame with a 1/2 shaft diameter. It's an open (shaft up or horizontal) enclosure motor and has ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Recommended Additional Products

Century F1106 Technical specifications

Brand

Century

Catalog Number

F1106

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1

Volts

208-230

Frequency

60

Amps

5.4

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

1

Phase

1

Enclosure

Semi Enclosed

Rotation

Reversible

Mounting Type

Extended Studs

Frame

48Y

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

6.4 (in.)

Shaft Type

Double Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimemsion

12.99 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

Any

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

60°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#F1106
