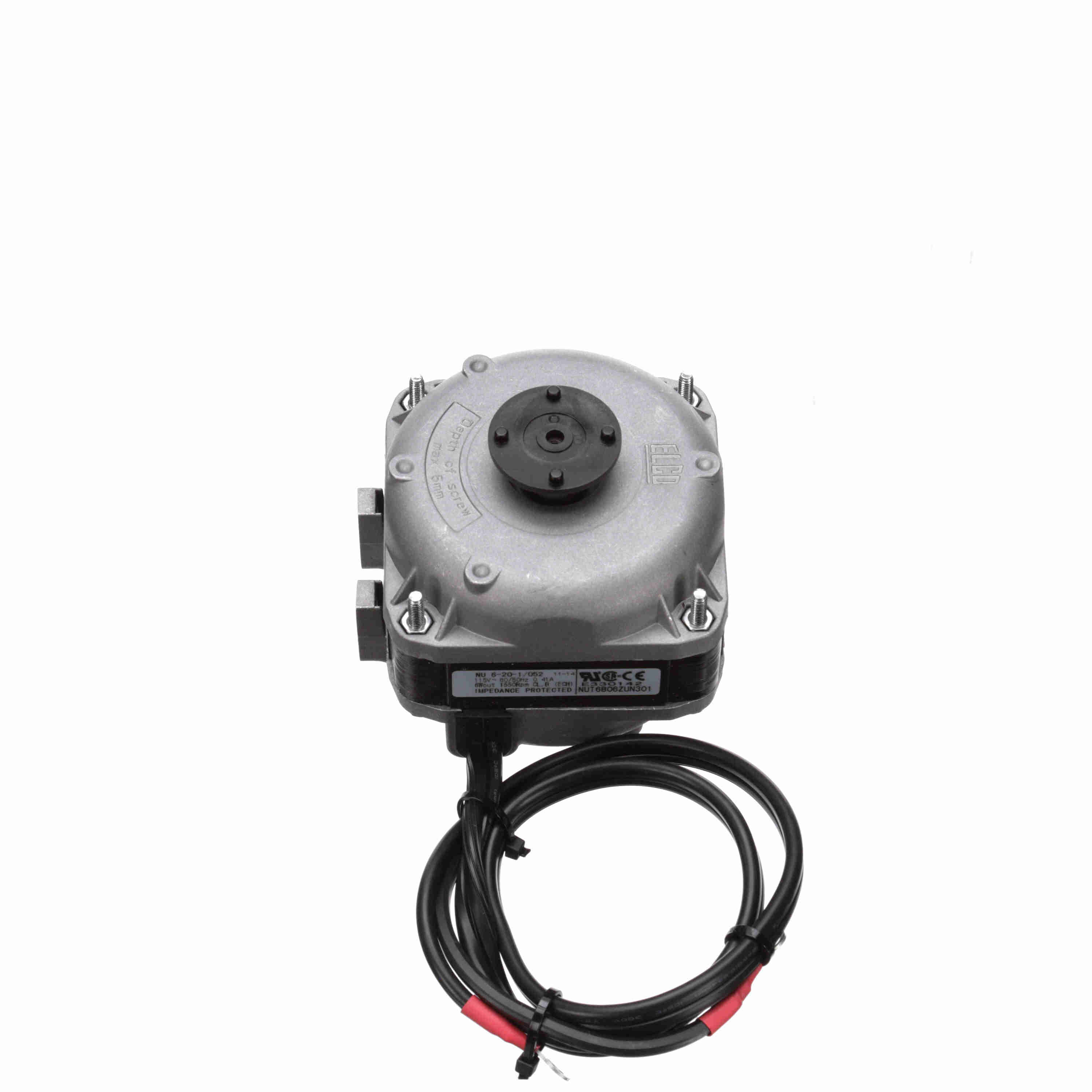

Elco EC6W115 6 Watt 115 Volts 1550 RPM Refrigeration Fan Motor

Dreisilker SKU: EL-RBC-EC6W115

(2 reviews) Write a Review
$52.94
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

The Elco EC6W115 is a refrigeration fan motor used in industrial and commercial refrigeration applications. This motor is rated at 6 watts and 1550 RPM at 115 volts. These motors have an unique square frame body style and are most commonly found in walk-in and reach-in coolers, freezer, and food and beverage chillers.

APPLICATIONS: NU SERIES

NU Series Shaded Pole Motors are widely used in industrial and commercial refrigeration for condensing and evaporating units. Also used in freezers, bottle, food and beverage coolers, walk-in and reach-in coolers and ventilating units. They are suitable for all angle operation and offer multiple mounting features.

FEATURES: NU SERIES
  • Type: AC / shaded pole / 4 pole / single-speed
  • Range: From 4 to 34 watt output
  • Enclosure: Totally enclosed
  • Bearings: Self-lubricating and self-aligning long life Sintec sleeve bearings
  • Duty: Continuous air over
  • Insulation/Protection: Class B. Impedance and thermally protected
  • Operating range: Standard operating temperatures: -40°F to 104°F
  • Approvals: cURus and CE
  • Rear mounting: 3 tapped holes on 2.835” B.C. at 120° or 4 mounting screws on shaft end
  • Foot mounting: Single side boss with 4 tapped holes
  • Rotation: CCWSE

Technical specifications

Brand

Elco

Catalog Number

EC6W115

Product Category

HVAC/R Motors > Refrigeration Motors

Watts

6

Volts

115

Frequency

60

Amps

0.41

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Number of speeds

-

Number of Phases

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

1 BOSS/PE AND OPE 3 HOLES

Frame Type

Unit Bearing

Frame Material

Aluminum

Shaft Diameter (In.)

0.275

Shaft Extension (In.)

0.49

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

3.05

Electrical Type

Shaded Pole

Duty

Continuous Air Over

Motor Orientation

Any

Service Factor

-

Type of Overload Protector

No

Insulation Class

B

Max Ambient

40°C

UL

Yes

CE

Y

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#EC6W115
