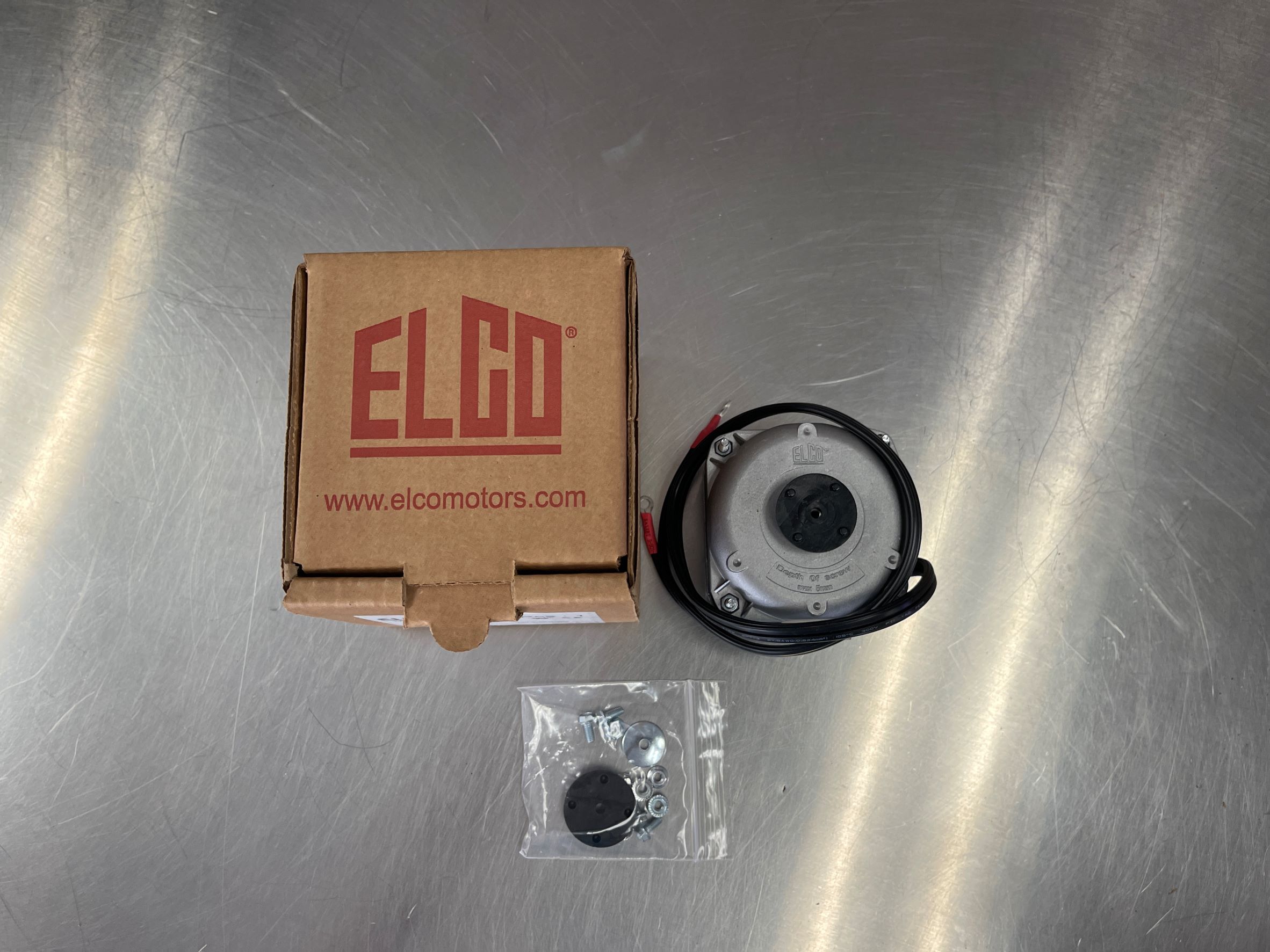

Elco EC9W115 9 Watt 115 Volts 1550 RPM Refrigeration Fan Motor

Dreisilker SKU: EL-RBC-EC9W115 | UPC: 818508023762

(1 review) Write a Review
$127.81

Long life span - 50,000 hours

Rugged & reliable construction

Wide range of applications

Product Availability
Ships same day if purchased before 2:30 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Elco EC9W115 Product Description

The Elco EC9W115 is a refrigeration fan motor used in industrial and commercial refrigeration applications. This motor is rated at 9 watts and 1550 RPM at 115 volts. These motors have an unique square frame body style and are most commonly found in walk-in and reach-in coolers, freezer, and food and beverage chillers.

APPLICATIONS: NU SERIES

NU Series Shaded Pole Motors are widely used in industrial and commercial refrigeration for condensing and evaporating units. Also used in freezers, bottle, food and beverage coolers, walk-in and reach-in coolers and ventilating units. They are suitable for all angle operation and offer multiple mounting features.

FEATURES: NU SERIES

  • Type: AC / shaded pole / 4 pole / single-speed
  • Range: From 4 to 34 watt output
  • Enclosure: Totally enclosed
  • Bearings: Self-lubricating and self-aligning long life Sintec sleeve bearings
  • Duty: Continuous air over
  • Insulation/Protection: Class B. Impedance and thermally protected
  • Operating range: Standard operating temperatures: -40°F to 104°F
  • Approvals: cURus and CE
  • Rear mounting: 3 tapped holes on 2.835” B.C. at 120° or 4 mounting screws on shaft end
  • Foot mounting: Single side boss with 4 tapped holes
  • Rotation: CCWSE

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Elco EC9W115 Technical specifications

Brand

Elco

Catalog Number

EC9W115

Product Category

HVAC/R Motors > Refrigeration Motors

HP

9 Watts

Volts

115

Frequency

60

Amps

0.58

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Number of speeds

-

Number of Phases

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

1 BOSS/PE AND OPE 3 HOLES

Frame Type

Unit Bearing

Frame Material

Aluminum

Shaft Diameter

0.275 (in.)

Shaft Extension

0.49 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

3.05 (in.)

Electrical Type

Shaded Pole

Duty

Continuous Air Over

Motor Orientation

Any

Service Factor

-

Type of Overload Protector

Sensata 150°C cut-off

Insulation Class

B

Max Ambient

40°C

UL

Yes

CE

Y

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#EC9W115
