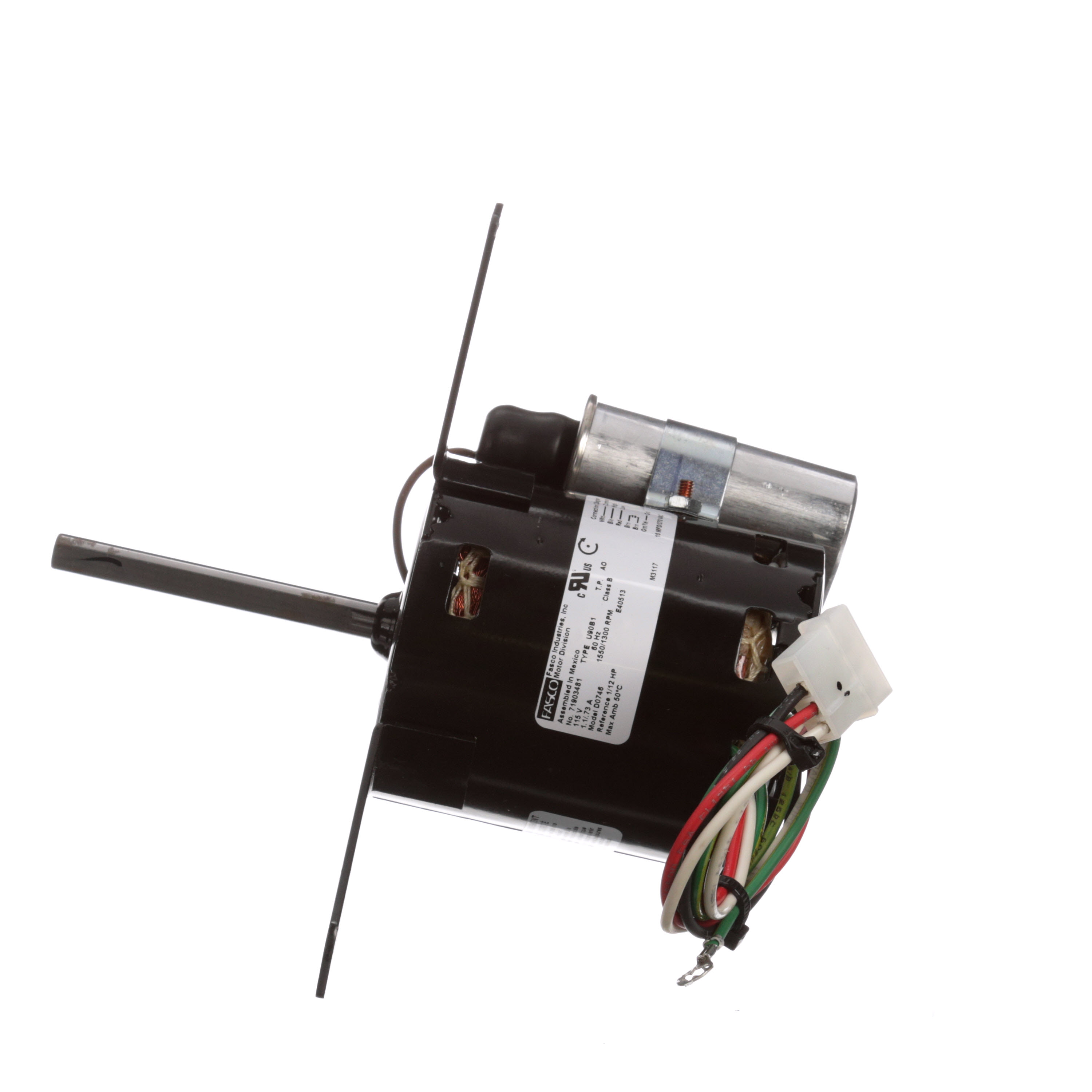

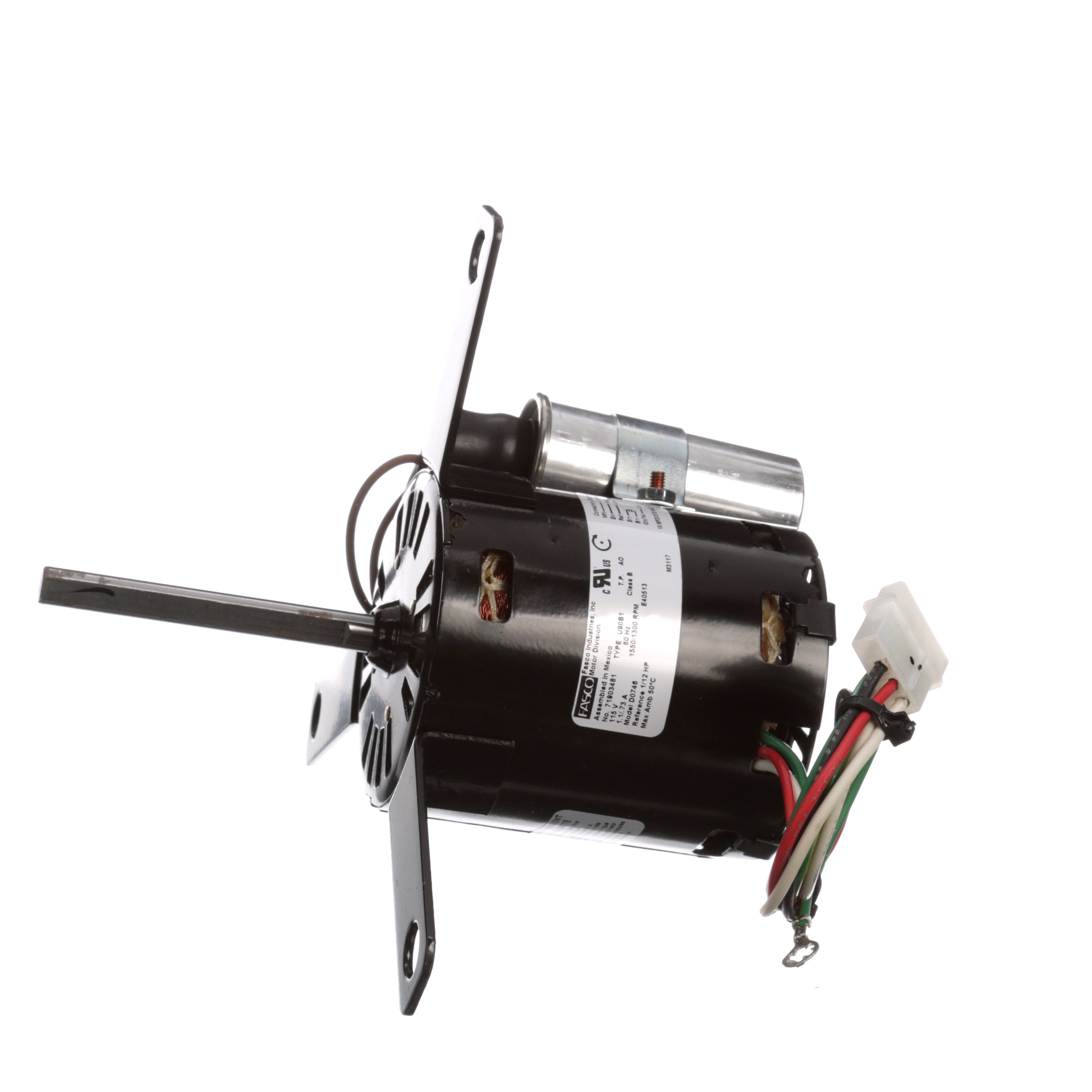

Fasco D0746 1/12 HP 1550 RPM 115 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D0746

(No reviews yet) Write a Review
$152.62
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Fasco D0746 1/12 HP 1550/1300 RPM 115 Volts 1.5/0.9 Amps

Technical specifications

Brand

Fasco

Catalog Number

D0746

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

0.08

Volts

115

Frequency

60

Amps

1.10/0.73

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Number of speeds

2

Number of Phases

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Lug

Frame Type

3.3

Frame Material

Steel

Shaft Diameter (In.)

0.375

Shaft Extension (In.)

3.45

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

7.38

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

50°C

UL

Recognized

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

AOS#OPV746
