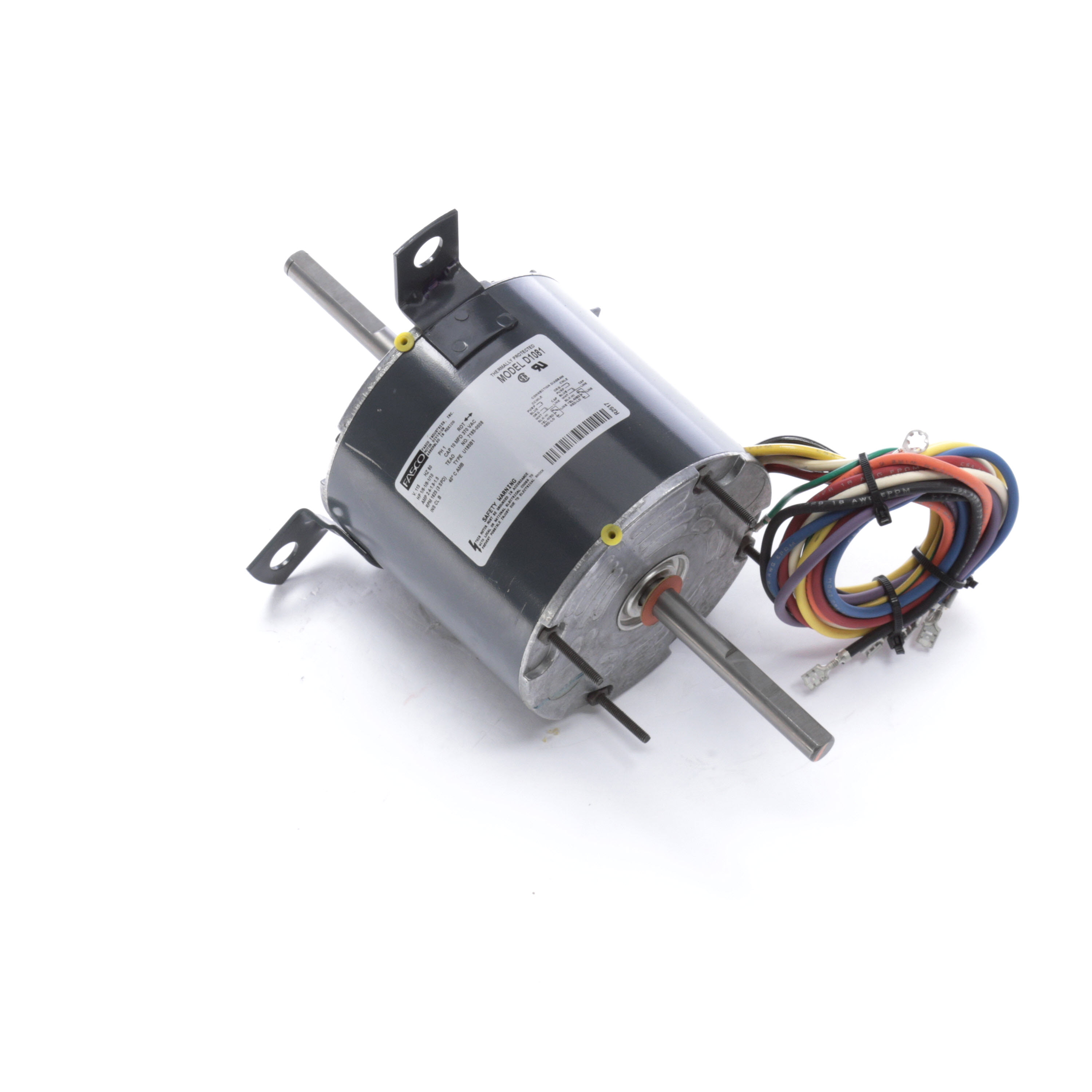

Fasco D1081 1/6 HP 1625 RPM 115 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D1081 | UPC: 815585027928

(No reviews yet) Write a Review
$432.77
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D1081 Product Description

The Fasco D1081 is a Duotherm OEM Direct Replacement Motor. Some of the specifications of the Fasco D1081 Duotherm OEM Direct Replacement Motor include: Fasco D1081 1/6 HP 1625 RPM 115 Volts OEM Direct Replacement Motor. The warranty information for the Fasco D1081 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1081 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1081 include the following: D1081, 1/6 HP, 1625 RPM, 115 Volts, 1/6 HP 1625 RPM 115 Volts, 1/6 1625 115,FA#D1081

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1081 Technical specifications

Brand

Fasco

Catalog Number

D1081

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/6

Volts

115

Frequency

60

Amps

2.4-1.9-1.5

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1625

Speeds

3

Phase

1

Enclosure Type

Open Air Over

Rotation

Reversible

Mounting Type

Lug

Frame Type

42

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

3.5 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

12.05 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1081
