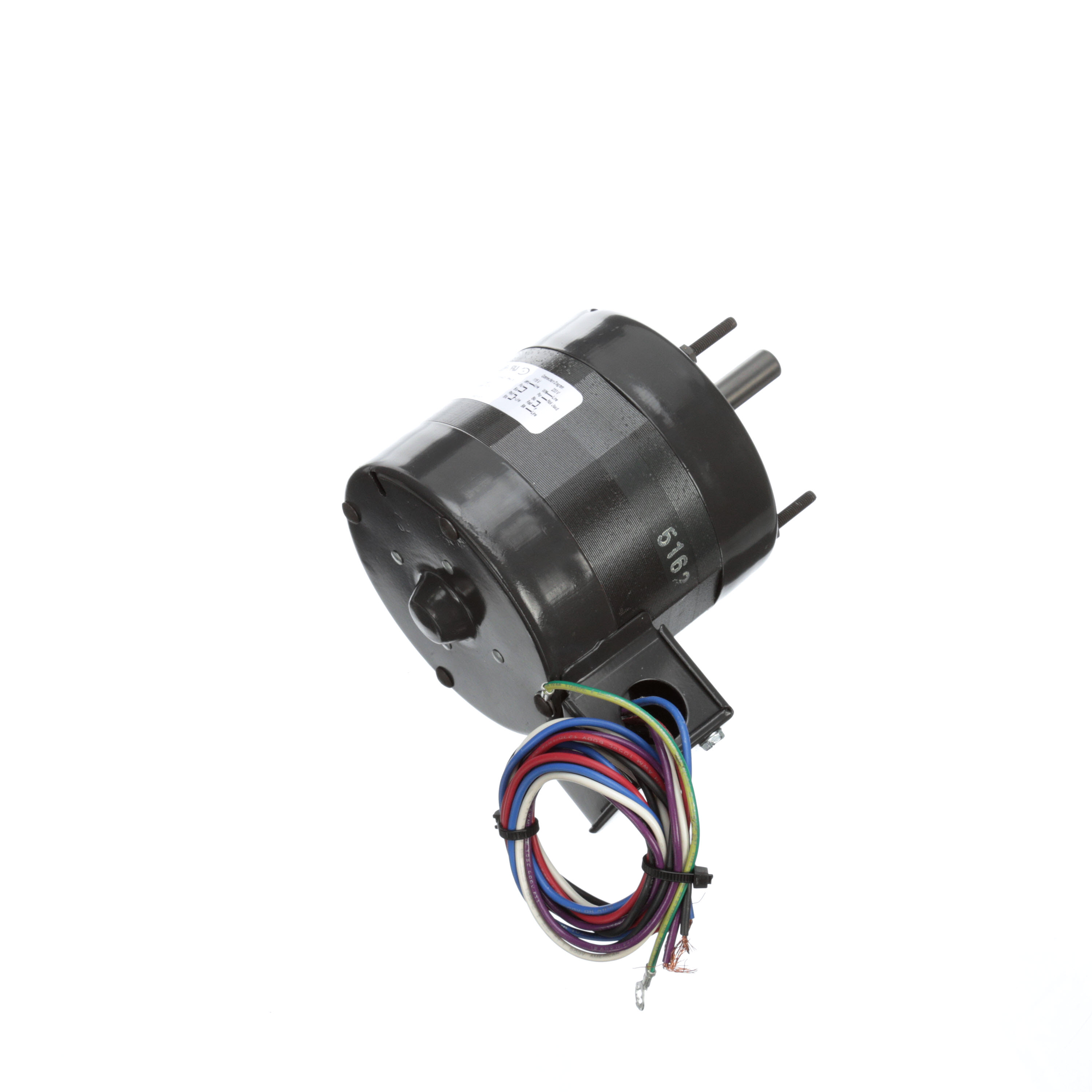

Fasco D115 1/12 HP 1550 RPM 115/230 Volts Fan Coil Unit Motor

Dreisilker SKU: FA-RBC-D115

(No reviews yet) Write a Review
Fasco D115 1/12 HP 1550 RPM 115/230 Volts Fan Coil Unit Motor
$288.58
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Fasco D115 1/12 HP 1550 RPM 115/230 Volts 2.5-1.3 Amps CCW Rotation 1/2 Shaft Diameter

Technical specifications

Brand

Fasco

Catalog Number

D115

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

0.08

Volts

115/230

Frequency

60

Amps

2.5/1.3

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Number of speeds

1

Number of Phases

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

4.4

Frame Material

Na

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

2.00

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

6.62

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

A

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D115
