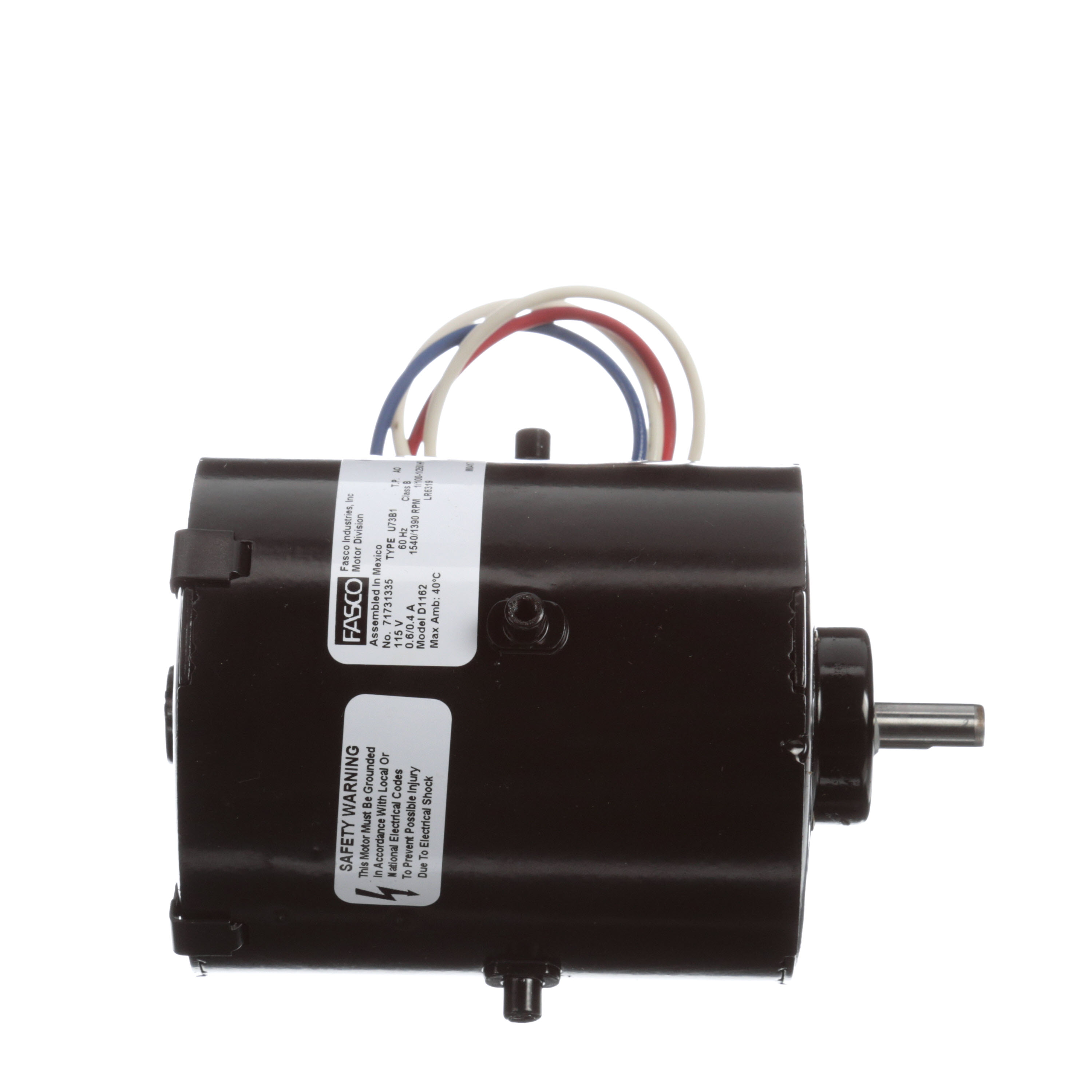

Fasco D1162 1/100 HP 1500 RPM 115 Volts General Purpose Fan Motor

Dreisilker SKU: FA-RBC-D1162

(1 review) Write a Review
$154.80
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

1/100 HP 1500 RPM 115 Volts Reversible Open Ventilated Sleeve Bearings 3.3" Diameter 5/16" Shaft Diameter

Technical specifications

Brand

Fasco

Catalog Number

D1162

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

0.01

Volts

115

Frequency

60

Amps

0.60/0.40

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1540

Number of speeds

1

Number of Phases

1

Enclosure Type

Open Air Over

Rotation

Reversible

Mounting Type

Belly Band

Frame Type

3.3

Frame Material

Steel

Shaft Diameter (In.)

0.312

Shaft Extension (In.)

1.15

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

5.26

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

D1162

Inventory and Shipping Information

1 Review Hide Reviews Show Reviews

  • 5
    FASCO D1162

    Posted by Richard on Dec 18th 2018

    Works perfect
    Do you have the two springs to hold the cover uptight to the ceiling
