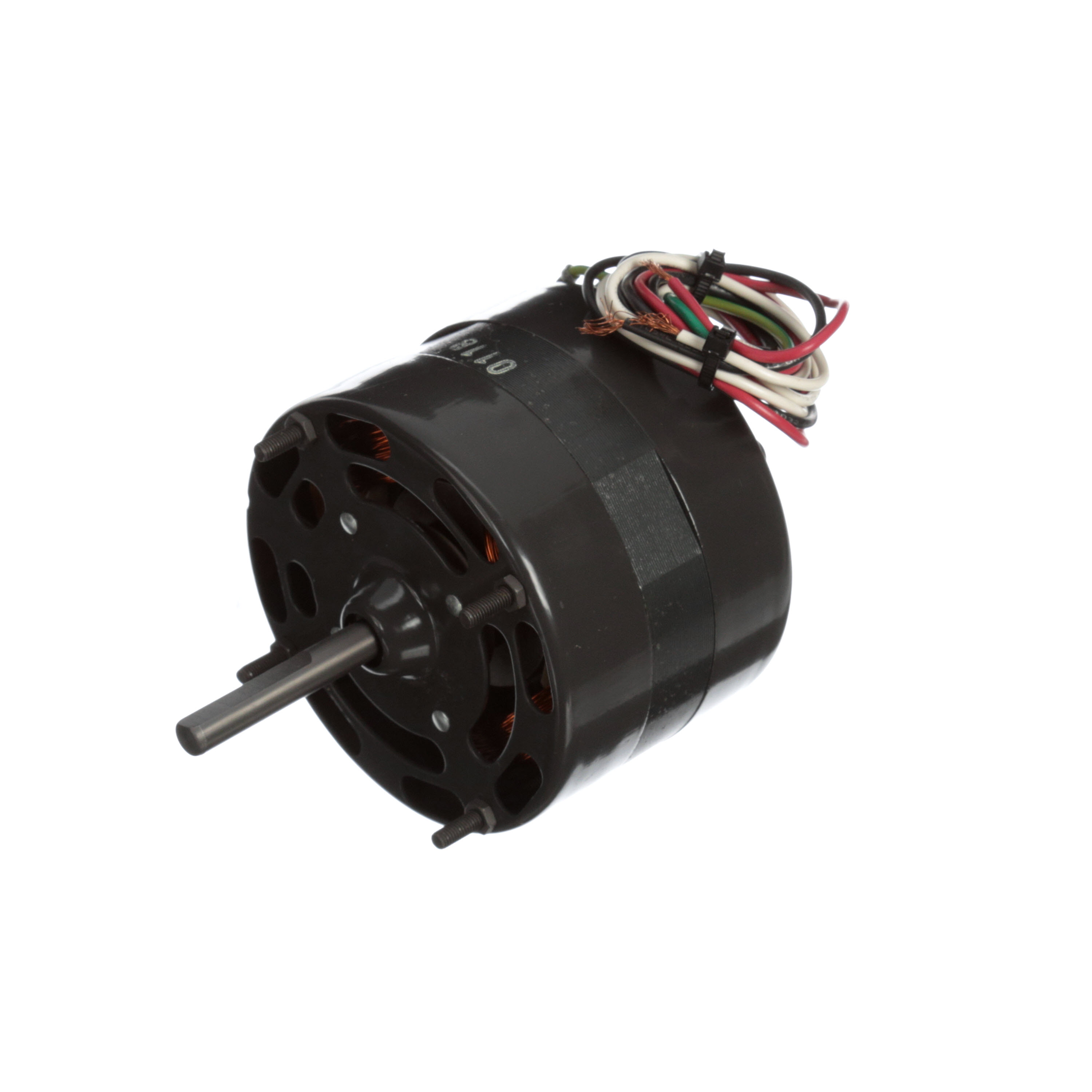

Fasco D118 1/15 HP 1500 RPM 115 Volts General Purpose Fan Motor

Dreisilker SKU: FA-RBC-D118 | UPC: 815585028017

(No reviews yet) Write a Review
Fasco D118 1/15 HP 1500 RPM 115 Volts General Purpose Fan Motor
$210.65
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Fasco D118 Product Description

The Fasco D118 is a General Purpose Fan Motor. Some of the specifications of the Fasco D118 General Purpose Fan Motor include: Fasco D118 1/15 HP 1500 RPM 115 Volts General Purpose Fan Motor. The warranty information for the Fasco D118 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D118 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D118 include the following: D118, 1/15 HP, 1500 RPM, 115 Volts, 1/15 HP 1500 RPM 115 Volts, 1/15 1500 115,FA#D118

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D118 Technical specifications

Brand

Fasco

Catalog Number

D118

Product Category

HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors

HP

1/15

Volts

115

Frequency

60

Amps

2.4-1.4

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1500

Speeds

2

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

4.4 (in. diameter)

Frame Material

Na

Shaft Diameter

3/8 (in.)

Shaft Extension

2.45 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

5.97 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

A

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D118
