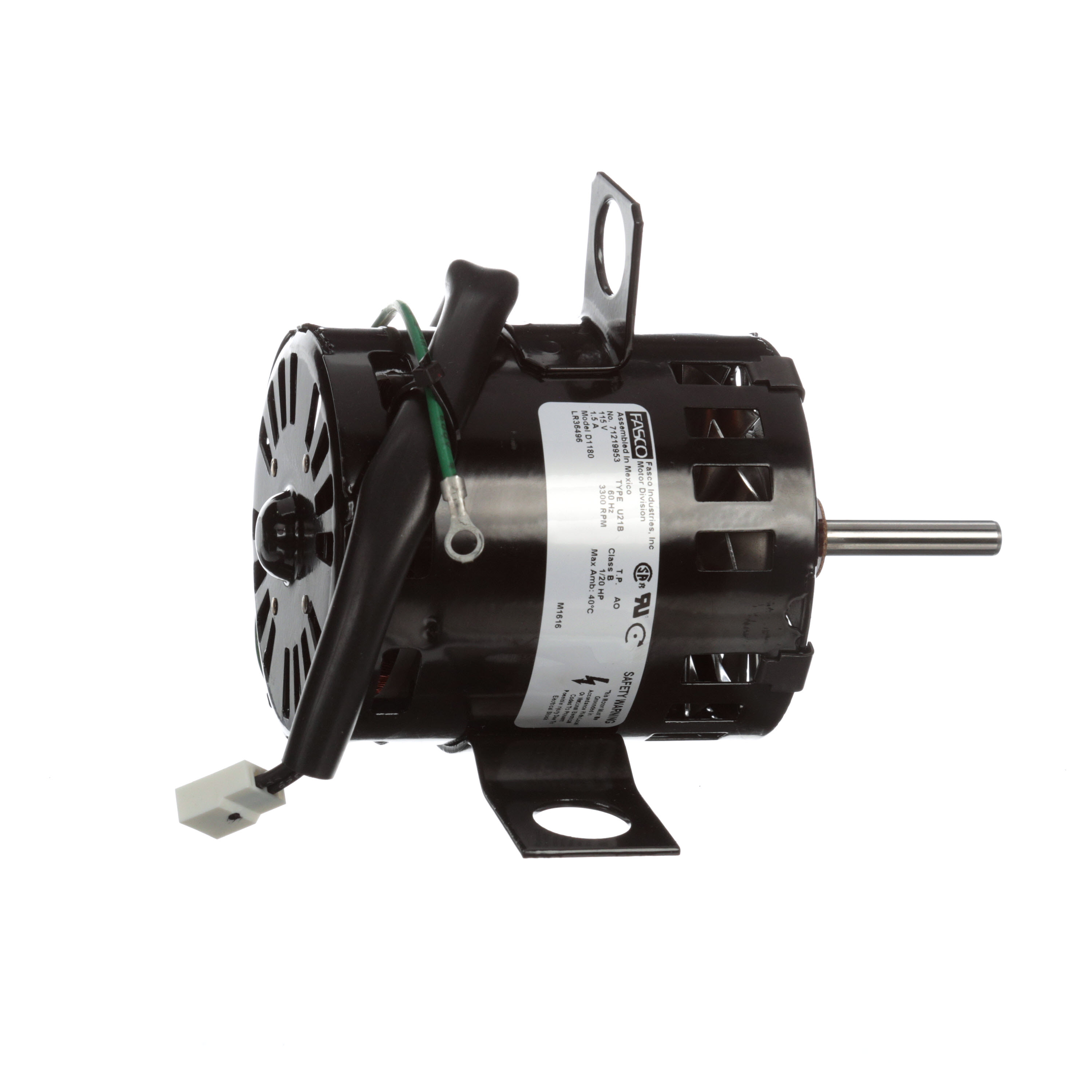

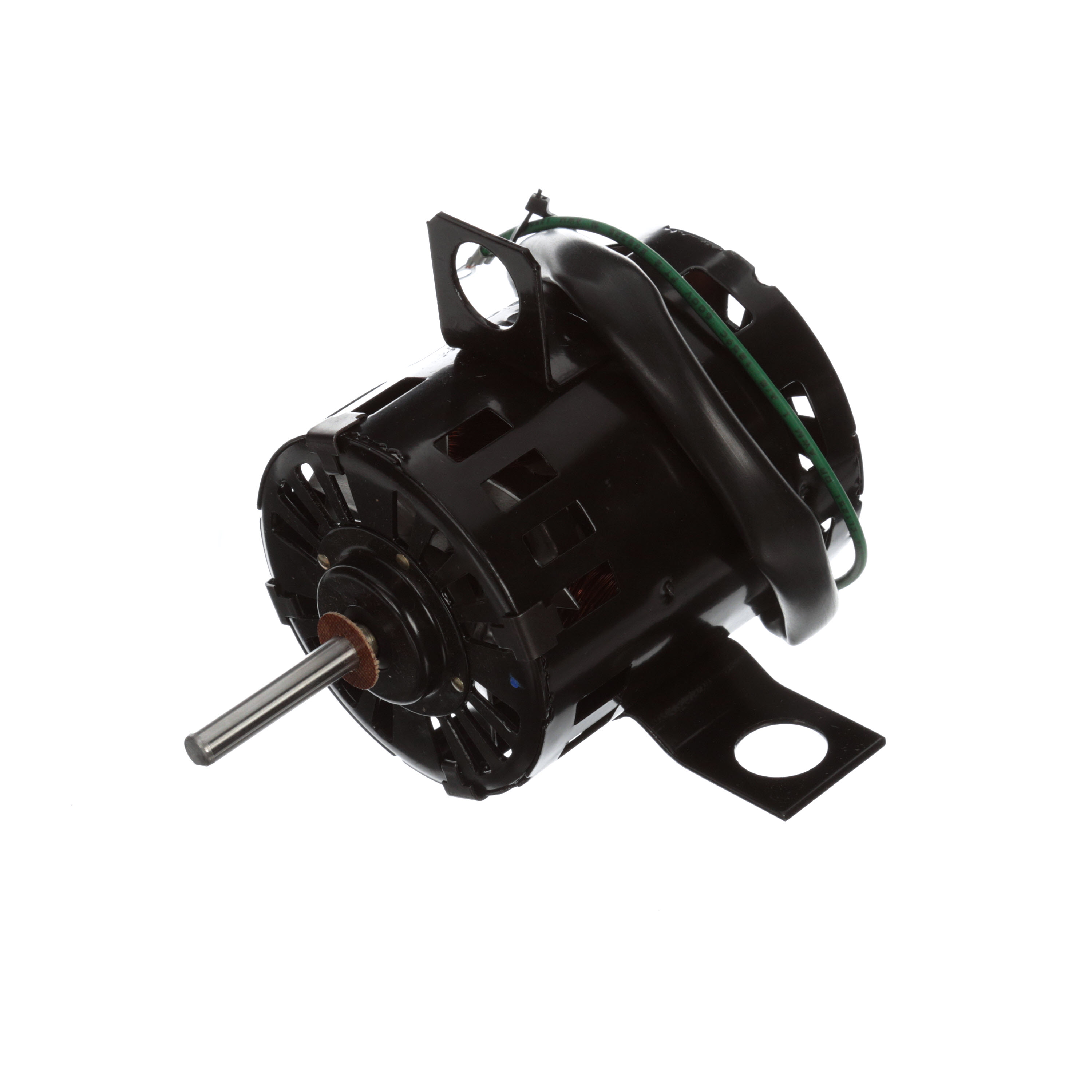

Fasco D1180 1/20 HP 3300 RPM 115V Draft Booster Blower Motor

Dreisilker SKU: FA-RBC-D1180 | UPC: 815585028024

(No reviews yet) Write a Review
$220.88
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D1180 Product Description

The Fasco D1180 is a Flue Exhaust Motor. Some of the specifications of the Fasco D1180 Flue Exhaust Motor include: Fasco D1180 1/20 HP 3300 RPM 115 Volts Flue Exhaust & Draft Booster Blower Motor. The warranty information for the Fasco D1180 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1180 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1180 include the following: D1180, 1/20 HP, 3300 RPM, 115 Volts, 1/20 HP 3300 RPM 115 Volts, 1/20 3300 115,FA#D1180

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1180 Technical specifications

Brand

Fasco

Catalog Number

D1180

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/20

Volts

115

Frequency

60

Amps

1.5

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3300

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Lug

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

2.10 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

6.33 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1180
