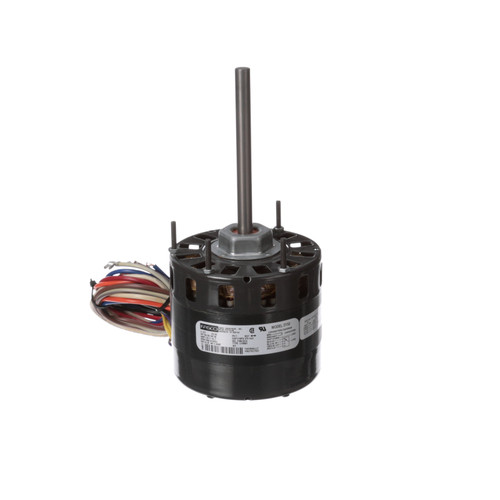

Fasco D152 1/4 HP 1050 RPM 277 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D152 | UPC: 815585028673

(No reviews yet) Write a Review
$362.37

In stock, ships quickly

Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

6 units in stock

Chicago, IL (Grand Ave.)

1 units in stock

Marietta, GA (Atlanta)

1 units in stock

Alsip, IL

1 units in stock

Elk Grove Village, IL

2 units in stock

Fasco D152 Product Description

The Fasco D152 is a Direct Drive Blower Motor. Some of the specifications of the Fasco D152 Direct Drive Blower Motor include: Fasco D152 1/4 HP 1050 RPM 277 Volts Direct Drive Blower Motor. The warranty information for the Fasco D152 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D152 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D152 include the following: D152, 1/4 HP, 1050 RPM, 277 Volts, 1/4 HP 1050 RPM 277 Volts, 1/4 1050 277,FA#D152

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D152 Technical specifications

Brand

Fasco

Catalog Number

D152

Product Category

HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors

HP

1/4

Volts

277

Frequency

60

Amps

1.6/1.1/0.9/0.7

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1050

Speeds

4

Phase

1

Enclosure Type

Open Air Over

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

6.00 (in.)

Shaft Type

Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

10.97 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D152
