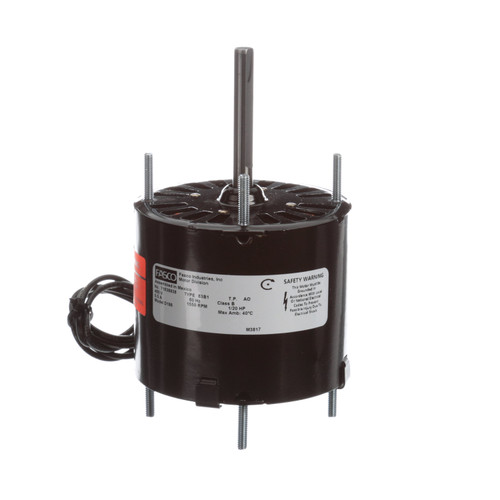

Fasco D186 1/20 HP 1500 RPM 460 Volts General Purpose Fan Motor

Dreisilker SKU: FA-RBC-D186 | UPC: 8.16E+11

(No reviews yet) Write a Review
Fasco D186 1/20 HP 1500 RPM 460 Volts General Purpose Fan Motor
$144.28
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

6 units in stock

Chicago, IL (Grand Ave.)

1 units in stock

Marietta, GA (Atlanta)

2 units in stock

Fasco D186 Product Description

The Fasco D186 is a General Purpose Fan Motor. Some of the specifications of the Fasco D186 General Purpose Fan Motor include: Fasco D186 1/20 HP 1500 RPM 460 Volts General Purpose Fan Motor. The warranty information for the Fasco D186 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D186 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D186 include the following: D186, 1/20 HP, 1500 RPM, 460 Volts, 1/20 HP 1500 RPM 460 Volts, 1/20 1500 460,FA#D186

Fasco D186 Technical specifications

Brand

Fasco

Catalog Number

D186

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/20

Volts

460

Frequency

60

Amps

0.50

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

2.3 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

5.42 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

No

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

FA#D186
