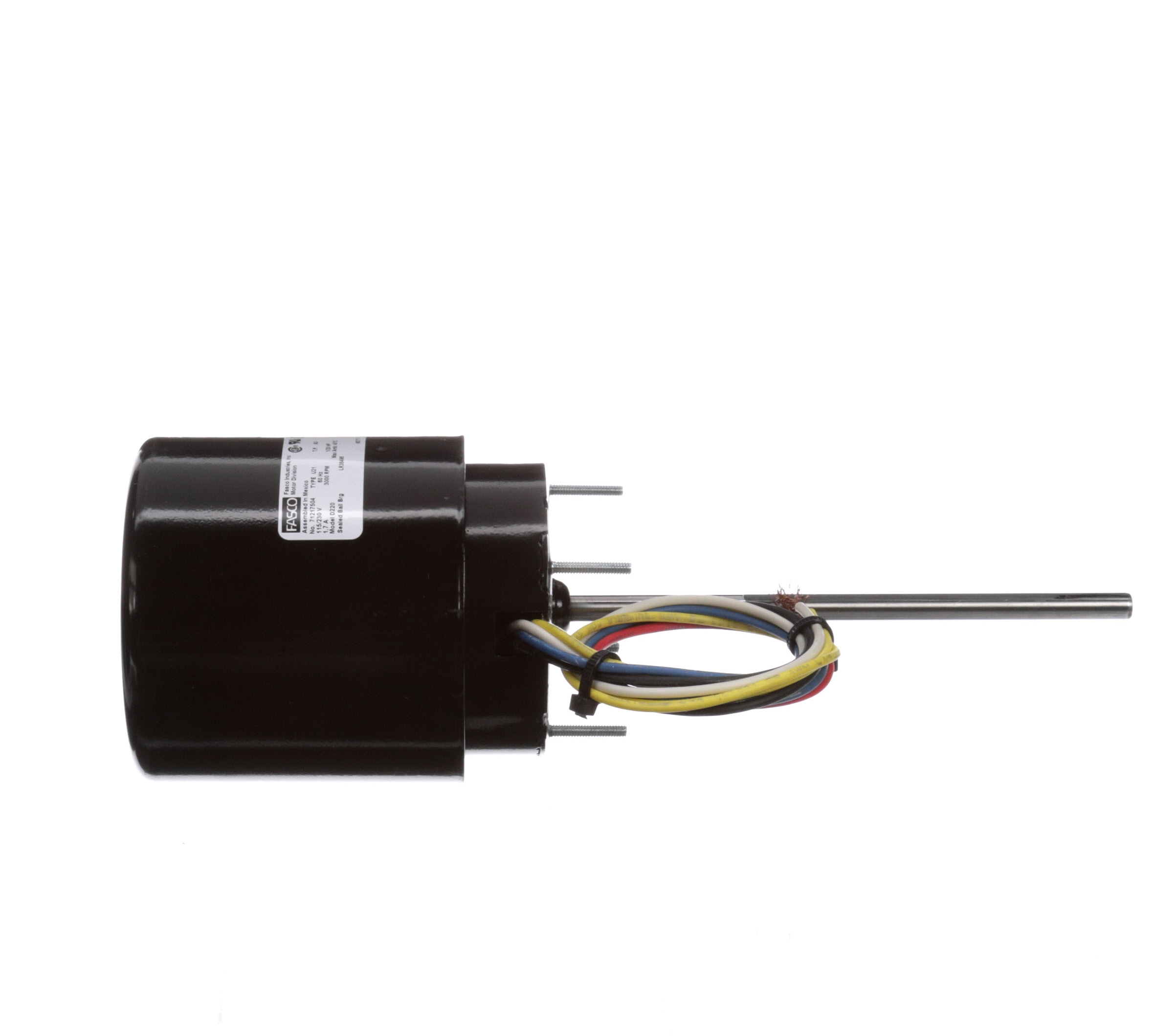

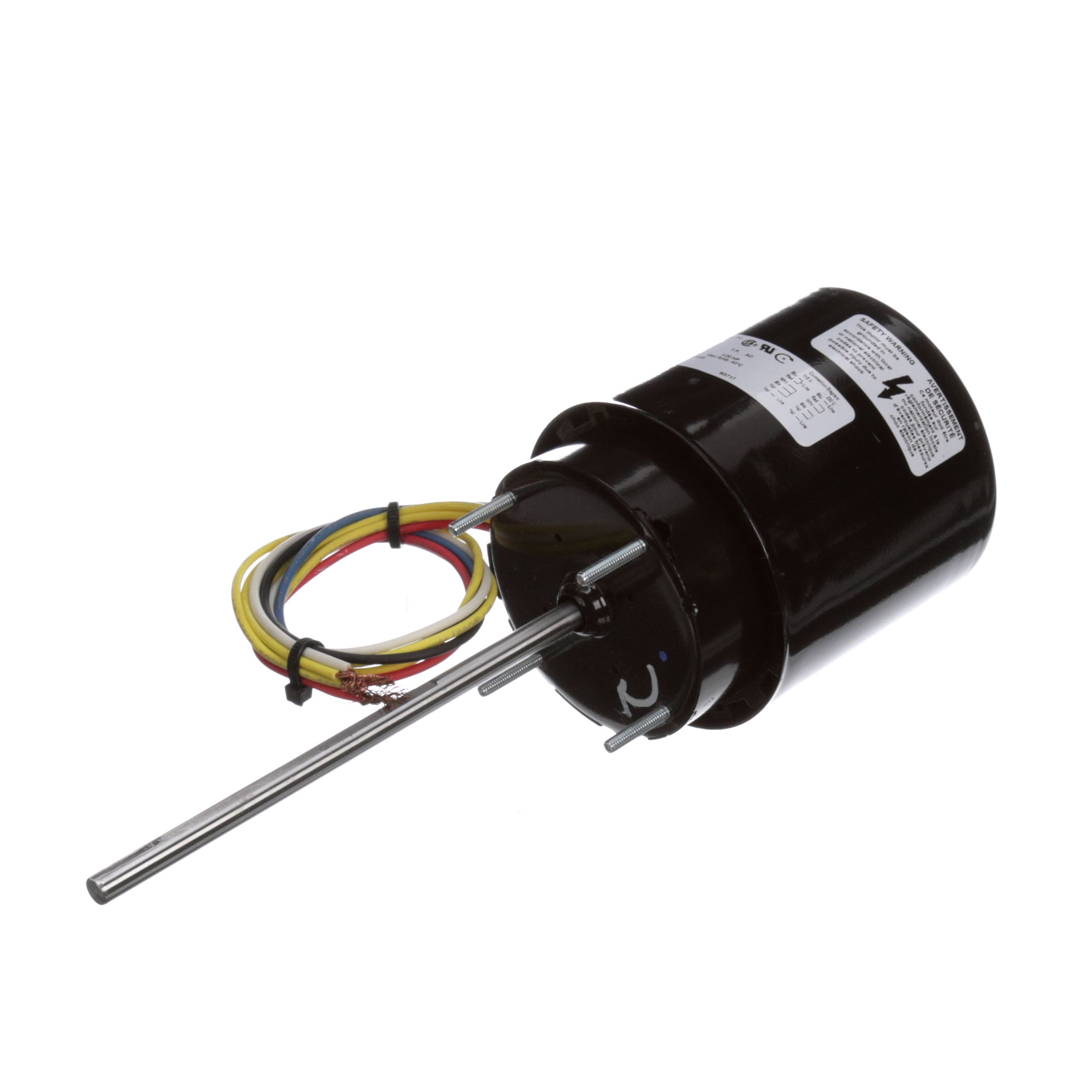

Fasco D220 1/20 HP 3000 RPM 115/230 Volts General Purpose Fan Motor

Dreisilker SKU: FA-RBC-D220 | UPC: 8.16E+11

(No reviews yet) Write a Review
$204.85
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

2 units in stock

Marietta, GA (Atlanta)

1 units in stock

Alsip, IL

2 units in stock

Elk Grove Village, IL

1 units in stock

Crystal Lake, IL

3 units in stock

Fasco D220 Product Description

The Fasco D220 is a General Purpose Fan Motor. Some of the specifications of the Fasco D220 General Purpose Fan Motor include: Fasco D220 1/20 HP 3000 RPM 115/230 Volts General Purpose Fan Motor. The warranty information for the Fasco D220 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D220 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D220 include the following: D220, 1/20 HP, 3000 RPM, 115/230 Volts, 1/20 HP 3000 RPM 115/230 Volts, 1/20 3000 115/230,FA#D220

Fasco D220 Technical specifications

Brand

Fasco

Catalog Number

D220

Product Category

HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors

HP

1/20

Volts

115/230

Frequency

60

Amps

1.7

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3000

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

6.50 (in.)

Shaft Type

Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

11.25 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D220
