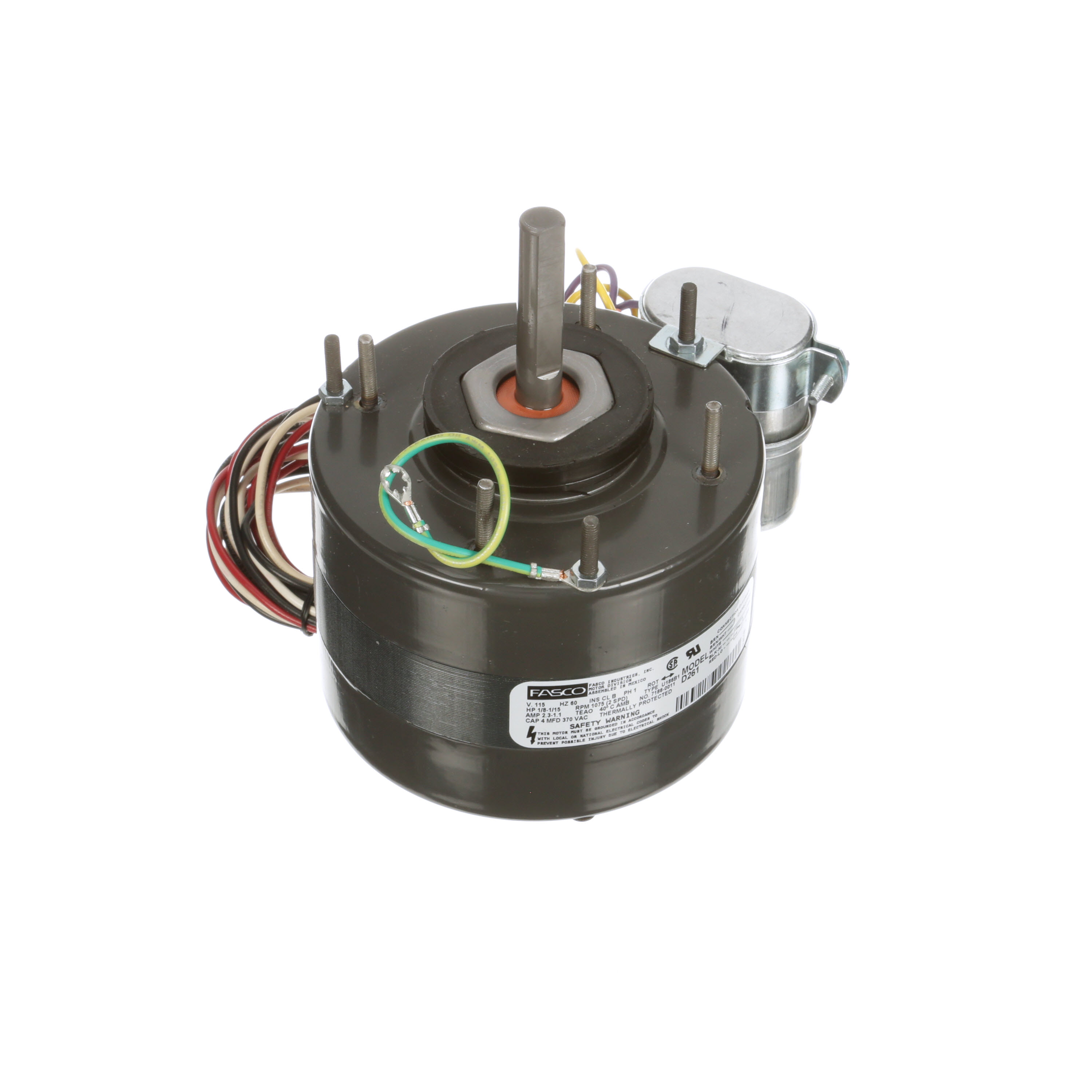

Fasco D261 1/8 HP 1075 RPM 115 Volts Unit Heater Motor

Dreisilker SKU: FA-RBC-D261 | UPC: 815585029366

(No reviews yet) Write a Review
Fasco D261 1/8 HP 1075 RPM 115 Volts Unit Heater Motor
$285.26
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marietta, GA (Atlanta)

1 units in stock

Crystal Lake, IL

2 units in stock

Fasco D261 Product Description

The Fasco D261 is a Unit Heater Motor. Some of the specifications of the Fasco D261 Unit Heater Motor include: Fasco D261 1/8 HP 1075 RPM 115 Volts Unit Heater Motor. The warranty information for the Fasco D261 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D261 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D261 include the following: D261, 1/8 HP, 1075 RPM, 115 Volts, 1/8 HP 1075 RPM 115 Volts, 1/8 1075 115,FA#D261

Fasco D261 Technical specifications

Brand

Fasco

Catalog Number

D261

Product Category

HVAC/R Motors > Unit Heater Motors

HP

1/8

Volts

115

Frequency

60

Amps

2.3-1.1

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

2

Phase

1

Enclosure Type

Open Air Over

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

3 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

7.34 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D261
