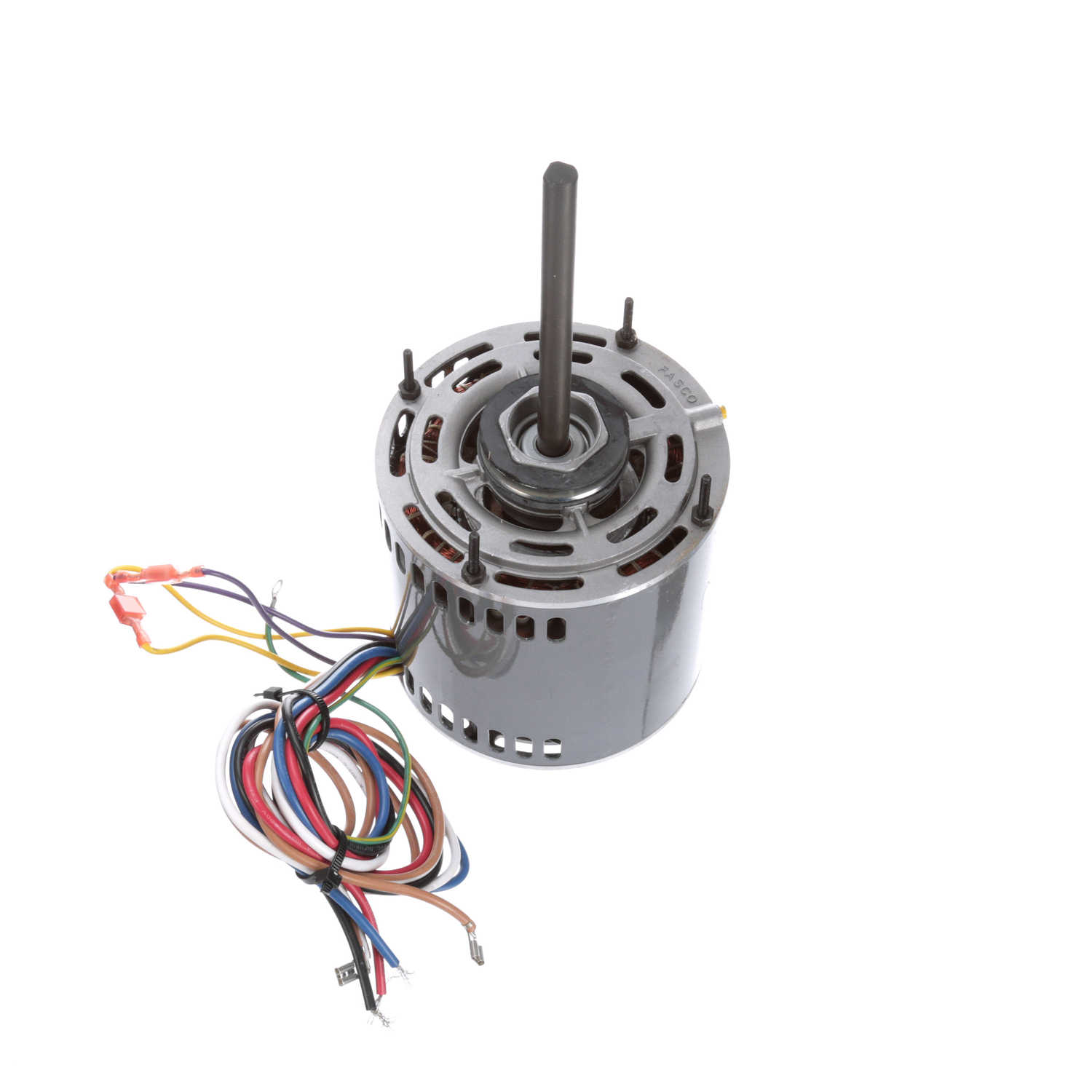

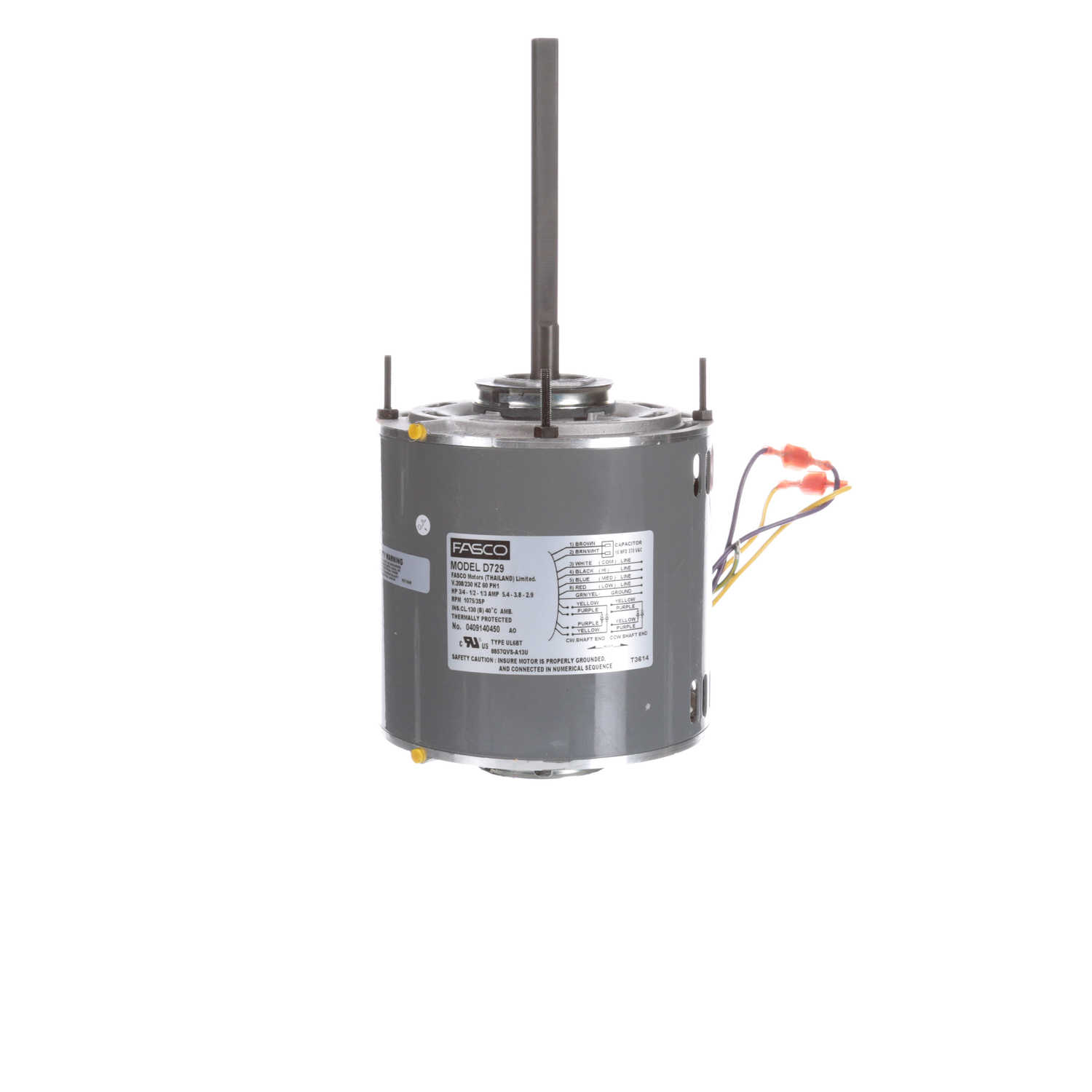

Fasco D729 3/4 HP 1075 RPM 208-230 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D729

(No reviews yet) Write a Review
Fasco D729 3/4 HP 1075 RPM 208-230 Volts Direct Drive Blower Motor
$134.20
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

3/4 HP 1075 RPM 208-230 Volts Reversible Open Ventilated Sleeve Bearings 5.6" Diameter 1/2" Shaft Diameter

Technical specifications

Brand

Fasco

Catalog Number

D729

Product Category

HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors

HP

0.75

Volts

208-230

Frequency

60

Amps

5.4-3.8-2.9

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Number of speeds

3

Number of Phases

1

Enclosure Type

Open Drip Proof

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

6

Shaft Type

Double Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

-

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D729
