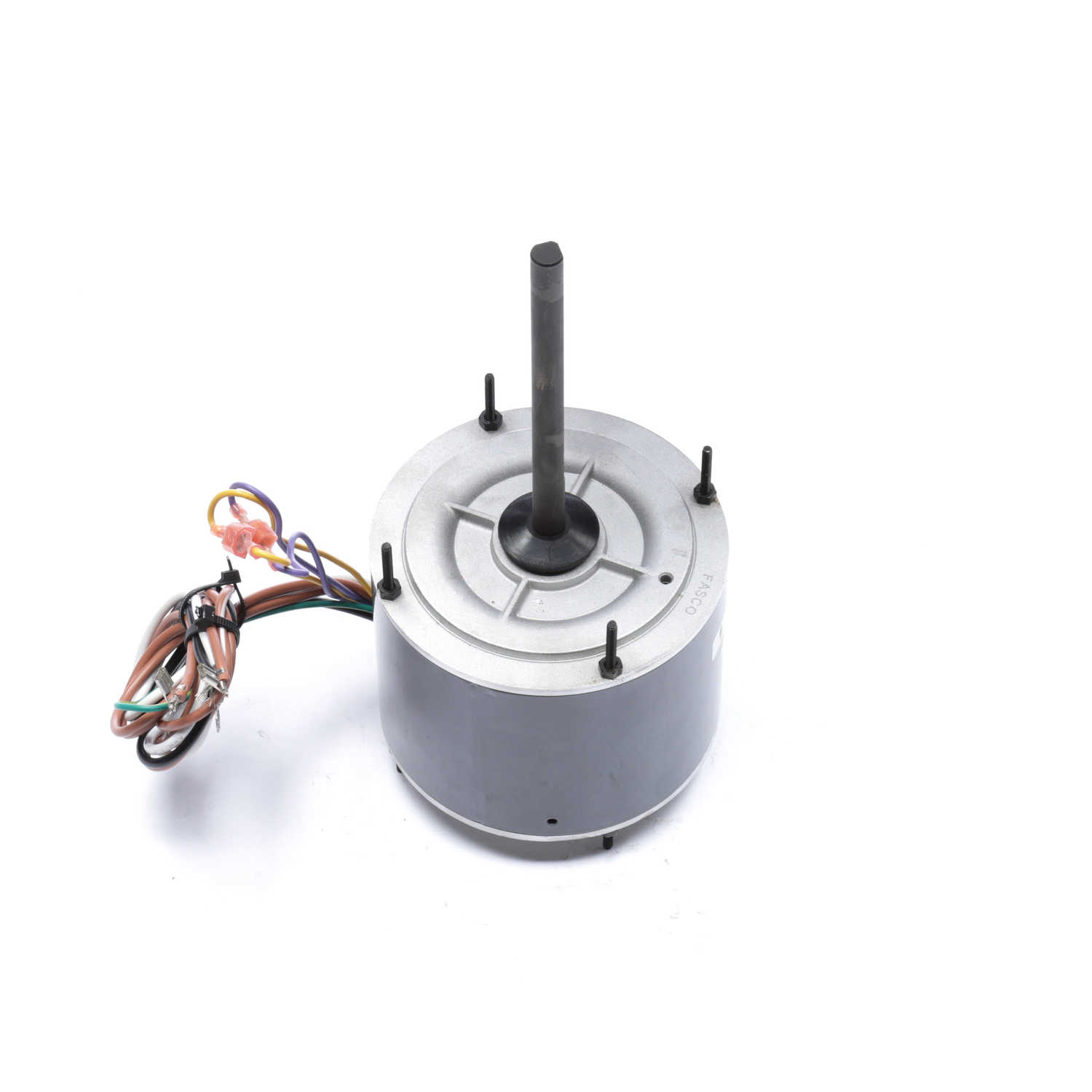

Fasco D7908 1/3 HP 1075 RPM 208-230 Volts Condenser Fan Motor

Dreisilker SKU: FA-RBC-D7908 | UPC: 818508022451

(1 review) Write a Review
Fasco D7908 1/3 HP 1075 RPM 208-230 Volts Condenser Fan Motor
$194.31
  • Packard TOCF7.5 Run Capacitor
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D7908 Product Description

The Fasco D7908 is a condenser fan motor rated at 1/3 HP and 1075 RPM for 208-230 volts 1 phase supply. The D7908 has a 48Y frame with a 1/2 shaft diameter. It's an totally enclosed enclosure motor and has ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Recommended Additional Products

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D7908 Technical specifications

Brand

Fasco

Catalog Number

D7908

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1/3

Volts

208-230

Frequency

60

Amps

2.6

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

1

Phase

1

Enclosure

Totally Enclosed Air Over

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

6.50 (in.)

Shaft Type

Double Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

-

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

60°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D7908
