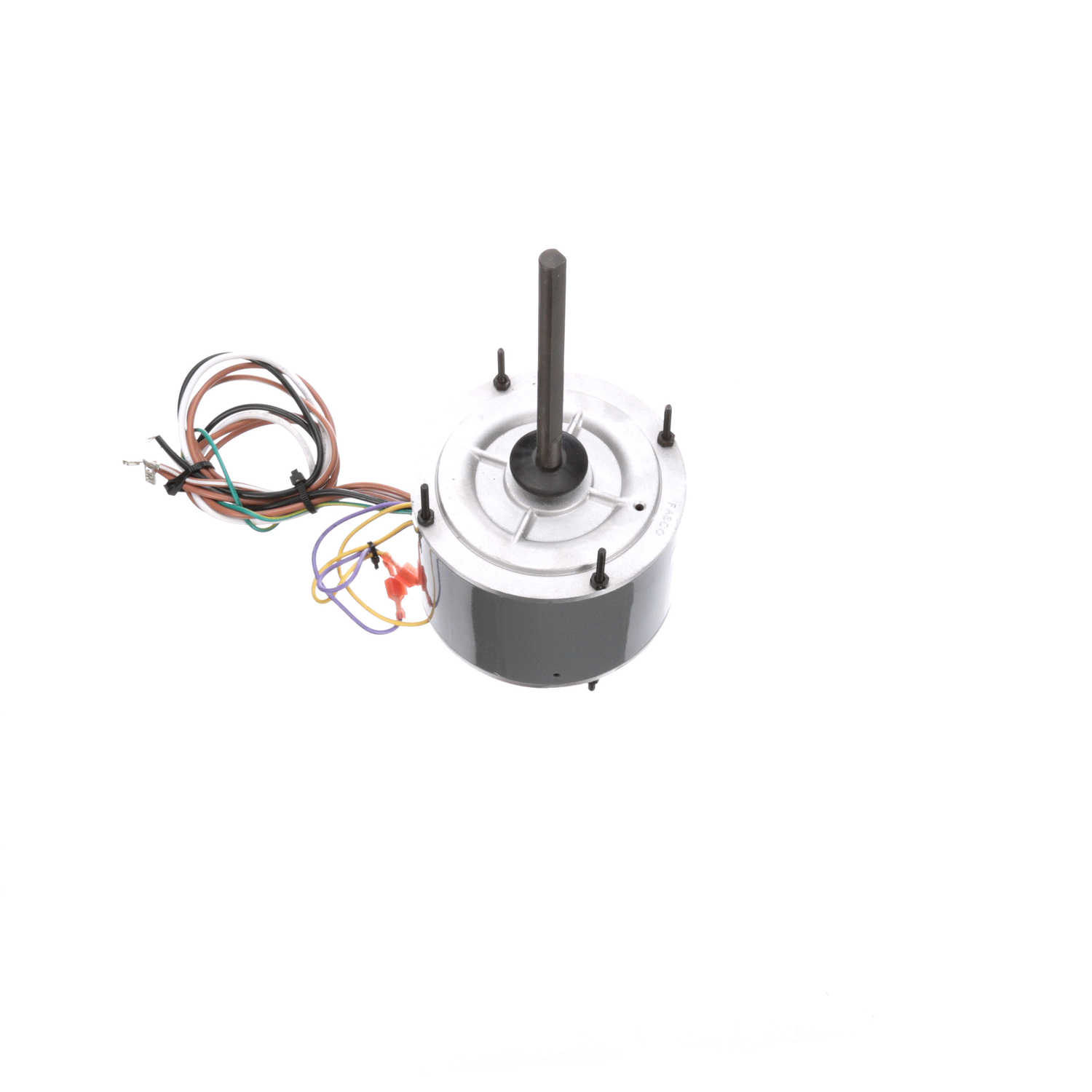

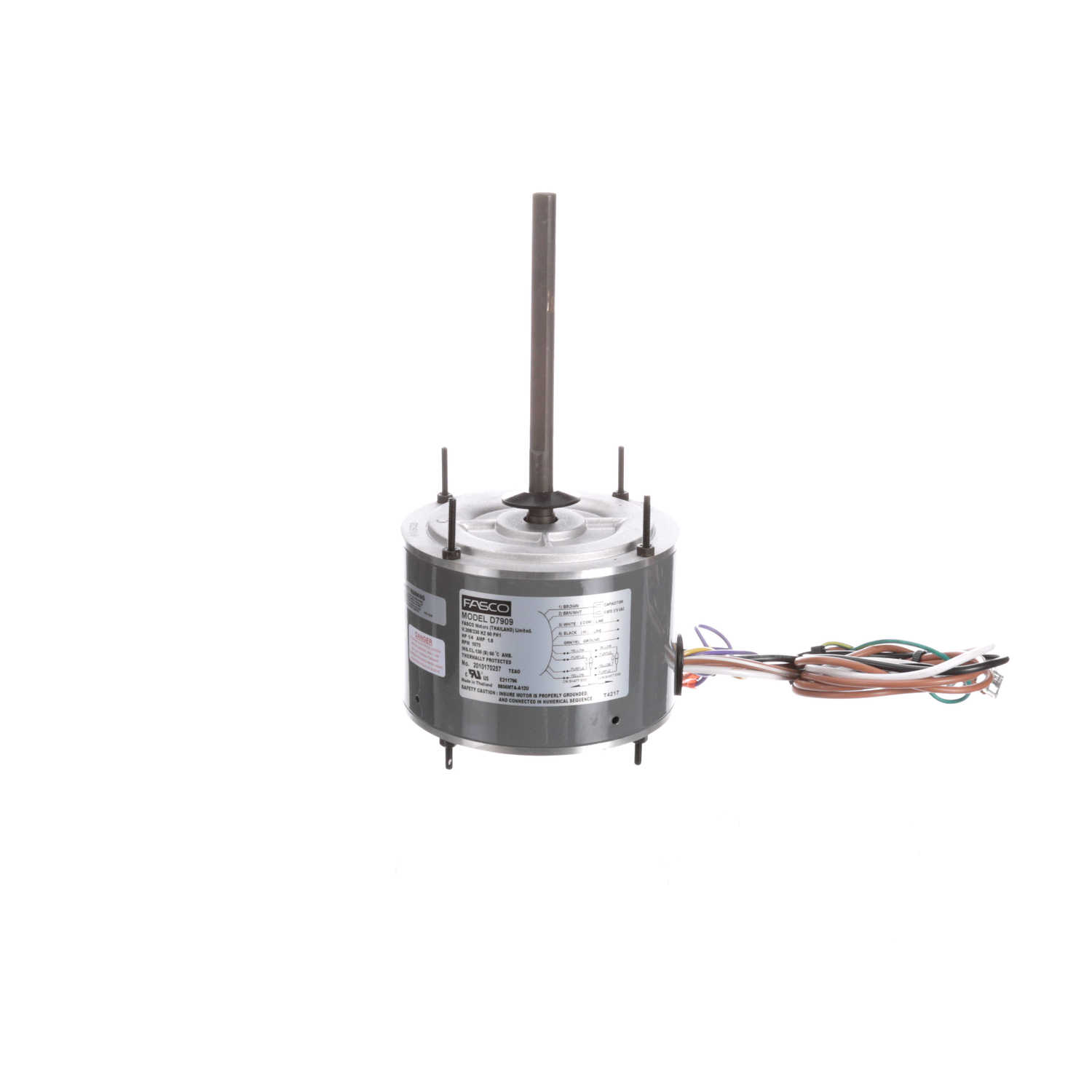

Fasco D7909 1/4 HP 1075 RPM 208-230 Volts Condenser Fan Motor

Dreisilker SKU: FA-RBC-D7909 | UPC: 8.18508E+11

(9 reviews) Write a Review
Fasco D7909 1/4 HP 1075 RPM 208-230 Volts Condenser Fan Motor
$169.21
  • Packard TOCF5 Run Capacitor
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D7909 Product Description

The Fasco D7909 is a condenser fan motor rated at 1/4 HP and 1075 RPM for 208-230 volts 1 phase supply. The D7909 has a 48Y frame with a 1/2 shaft diameter. It's an totally enclosed enclosure motor and has ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

What customers are saying about the Fasco D7909:

The Fasco D7909 fan motor is easy to install with a wiring diagram printed on the motor. It runs quietly and smoothly, and customer support is helpful in getting the correct parts. Some customers have had to splice the motor leads, but the 27" leads work well in most residential condenser units. The motor is a good replacement option and has saved customers money. Overall, customers are satisfied with the product and its price.

Recommended Additional Products

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D7909 Technical specifications

Brand

Fasco

Catalog Number

D7909

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1/4

Volts

208-230

Frequency

60

Amps

1.8

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

1

Phase

1

Enclosure

Totally Enclosed Air Over

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

6.5 (in.)

Shaft Type

Double Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

-

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

60°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D7909

9 Reviews Hide Reviews Show Reviews

  • 5
    Fasco Condenser Fan Motor + Capacitor

    Posted by Rece Porter on Aug 2nd 2023

    A/C stopped working; motor failed. Satff at Dreisilker were very helpful; it is a very old system so they advised not the most expensive motor and capacitor as the system is 20 years old. Received it and fitted within 3 days. Excellent service. Would definitely go to them again.

  • 5
    Fan motor

    Posted by Dan Bisbee on Jun 11th 2022

    Easy install. Wiring diagram printed on motor made it easy. Runs quite and smooth. When I called they helped me get the correct parts for what I needed. Would recommend them to other people.

  • 3
    Fasco D7909 1/4 hp 1075 rpm 208-230 volts motor

    Posted by Richard Rein on Jul 28th 2021

    The motor leads were too short and had to be spliced.

    ___________

    Richard -

    Good afternoon. The Fasco D7909 comes with 27" leads which is typical for replacement condenser fan motors. While some applications may require longer runs, we've found that the 27" leads of the D7909 works well in most residential condenser units.

    - Craig

  • 5
    Great Customet Support

    Posted by David Turrey on Jul 1st 2021

    So, my first time fixing an AC unit, so I was a little confused on some of the wiring, but Chris (there’s 4 Chris’s) talked me through everything and she did it with a smile and a laugh. Everything works great now…great prices, and as far as I can tell, the motor works great.

  • 5
    Fiasco D7909

    Posted by Russell Applegate on Jul 29th 2019

    Delivery was prompt. Perfect fit and easy to install. A/C back to normal

  • 3
    Fan Motor

    Posted by Randy on May 9th 2019

    a direct replacement similar to changing girlfriends, it works but you have to make several changes
    ________
    Response from Dreisilker (Craig B.)

    Randy -

    Good morning and thank you very much for your review.

    The Fasco D7909 is probably one of the best 1/4 HP stock replacement condenser fan motors on the market. There should be little-to-no modifications needed, assuming that it's the right motor for the application.

    Please feel free to reach out to me to discuss further.

    - Craig B.

  • 5
    fasco d7909

    Posted by Ron on Mar 20th 2018

    purchased fan via the internet 3 years ago
    saved $$$
    was blowing a fan a year with my older A/C unit
    this one still going strong but purchased another one as a back up
    In Florida the motor is going not stop 8 months out of the year.

  • 4
    good price and outstanding rep Chris Marshall

    Posted by gene clements on Jul 7th 2017

    Had a qualified A/C man hook it up and it is working great

  • 5
    fan motor

    Posted by MJ on Jun 12th 2017

    very good price and great product
