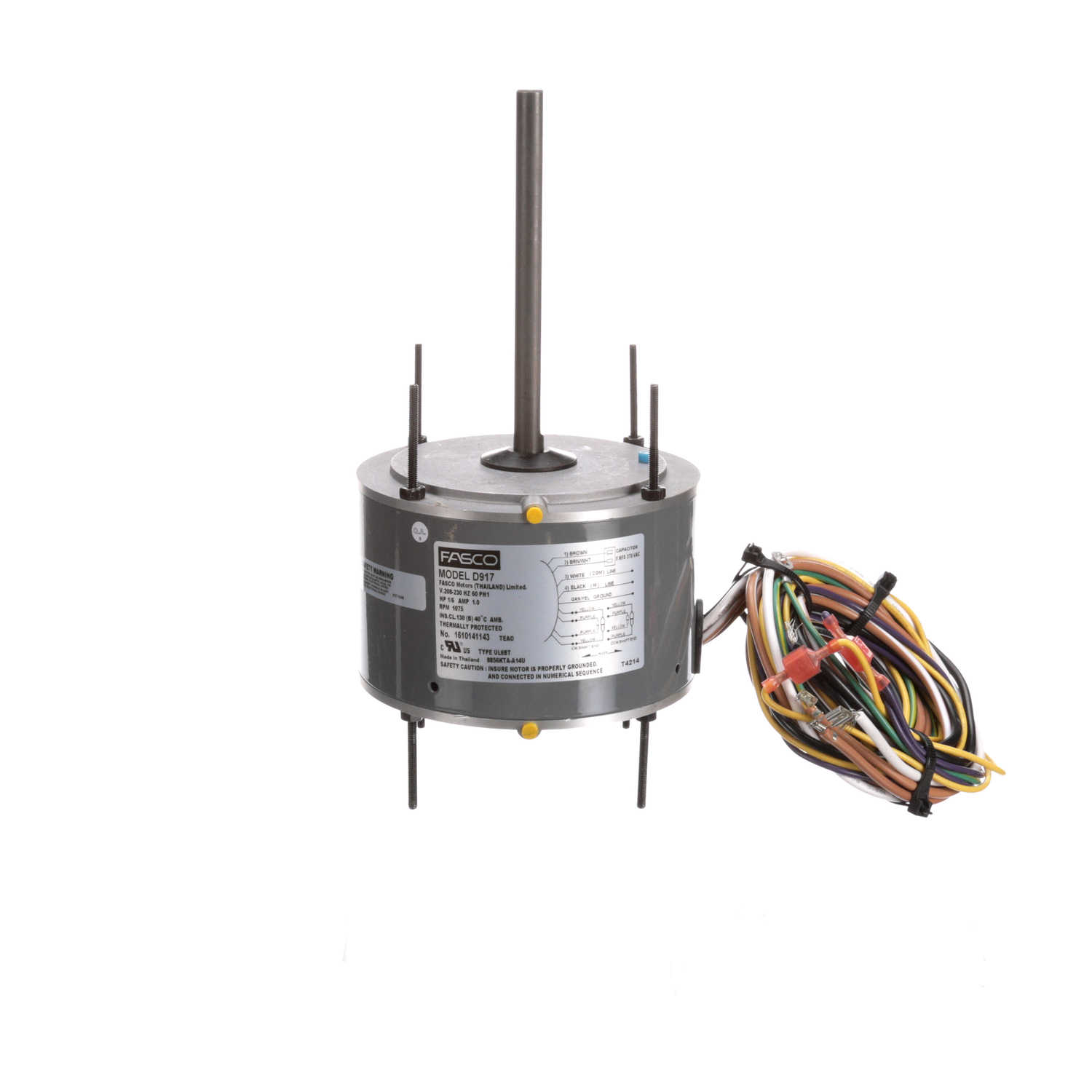

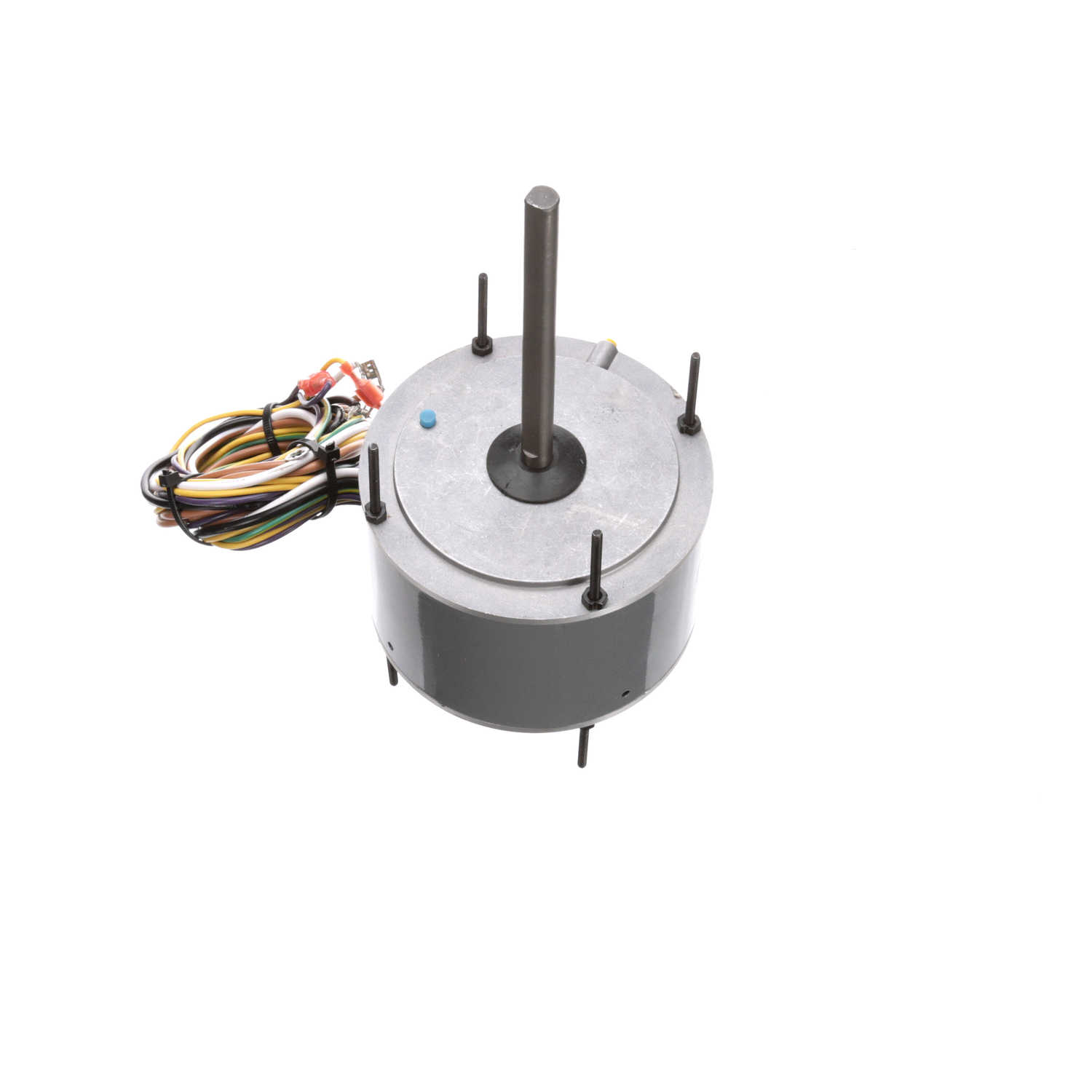

Fasco D917 1/6 HP 1075 RPM 208-230 Volts Condenser Fan Motor

Dreisilker SKU: FA-RBC-D917 | UPC: 8.19E+11

(1 review) Write a Review
$125.08
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

7 units in stock

Chicago, IL (Grand Ave.)

1 units in stock

Marietta, GA (Atlanta)

7 units in stock

Alsip, IL

2 units in stock

Fasco D917 Product Description

The Fasco D917 is a condenser fan motor rated at 1/6 HP and 1075 RPM for 208-230 volts 1 phase supply. The D917 has a 48Y frame with a 1/2 shaft diameter. It's an totally enclosed enclosure motor and has sleeve bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Recommended Additional Products

Fasco D917 Technical specifications

Brand

Fasco

Catalog Number

D917

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1/6

Volts

208-230

Frequency

60

Amps

1.0

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1075

Speeds

1

Phase

1

Enclosure

Totally Enclosed Air Over

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

6.0 (in.)

Shaft Type

Double Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

-

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D917
