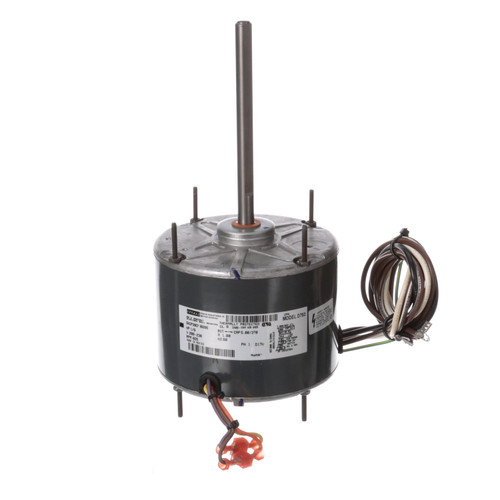

Fasco D793 1/6 HP 825 RPM 208-230 Volts Condenser Fan Motor

Dreisilker SKU: F-D793

(No reviews yet) Write a Review
$136.15

Free ground shipping on orders over $200!

Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

The Fasco D793 is a condenser fan motor rated at 1/6 HP and 825 RPM for 208-230 volts 1 phase supply. The D793 has a 48Y frame with a 1/2 shaft diameter. It's an totally enclosed enclosure motor and has ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Recommended Additional Products

Technical specifications

Catalog Number

D793

HP

1/6

RPM

825

Volts

208-230

Amps

1

Frame

48Y

Phase

1

Capacitor

TOCF5

Speeds

1

Shaft Diameter

1/2

Bearings

Ball

Enclosure

Totally Enclosed

Insulation Class

N/A

Ambient

60°C

Notes

All angle mount bearings. Use rain shield when necessary., Electrically Reversible, 60° ambient temperature rating

DEM Reference

FA#D793

Inventory and Shipping Information

Shipping Weight

13 lbs.
