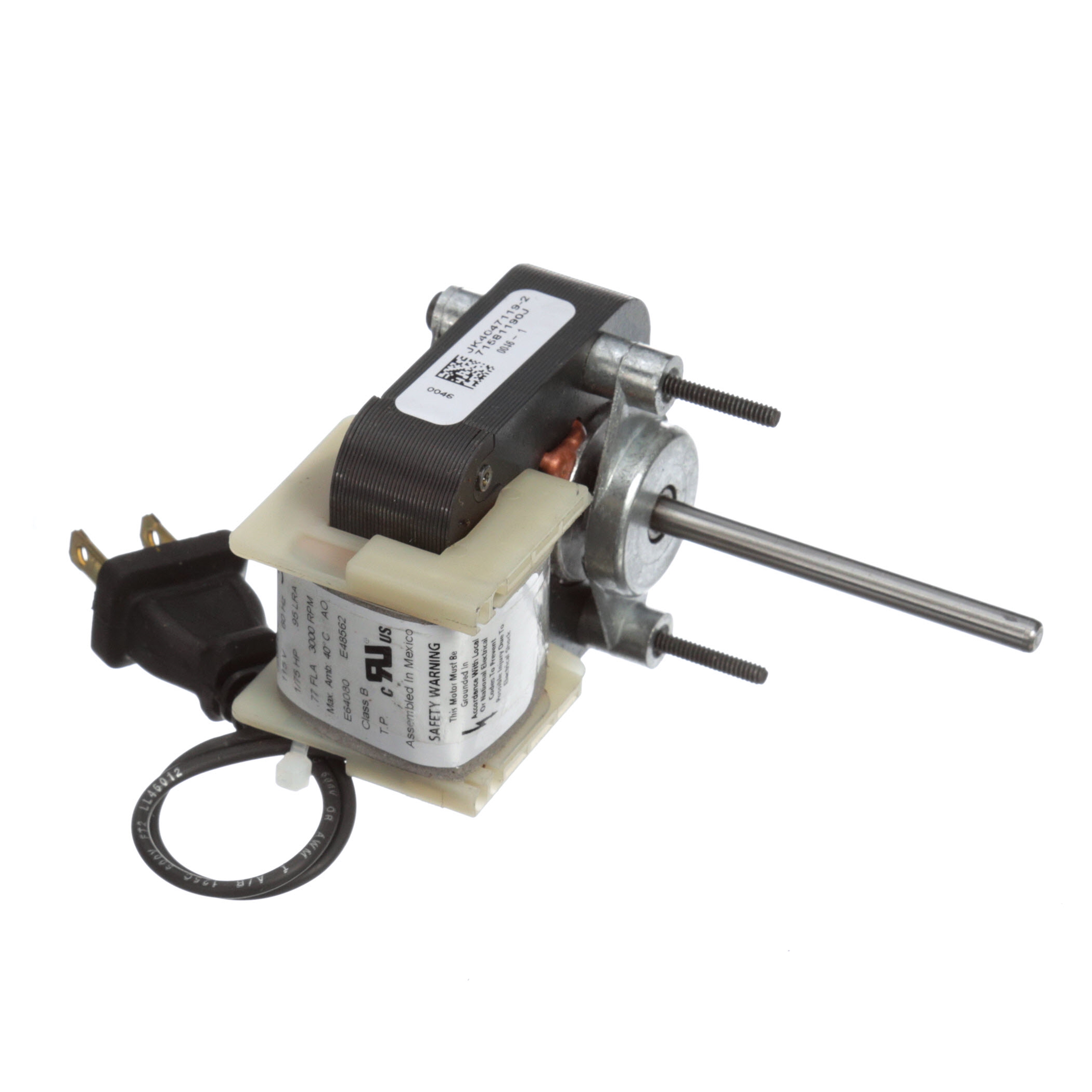

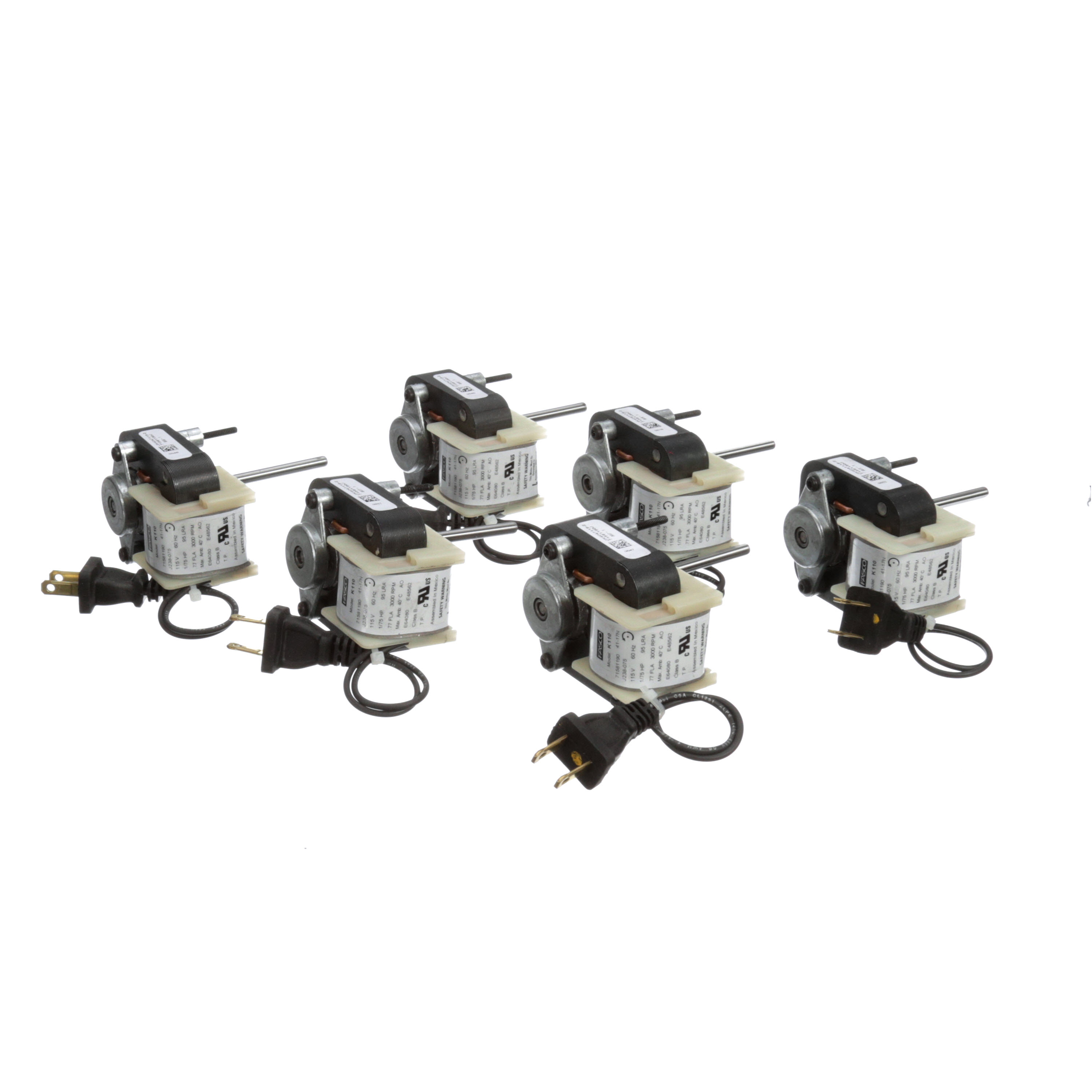

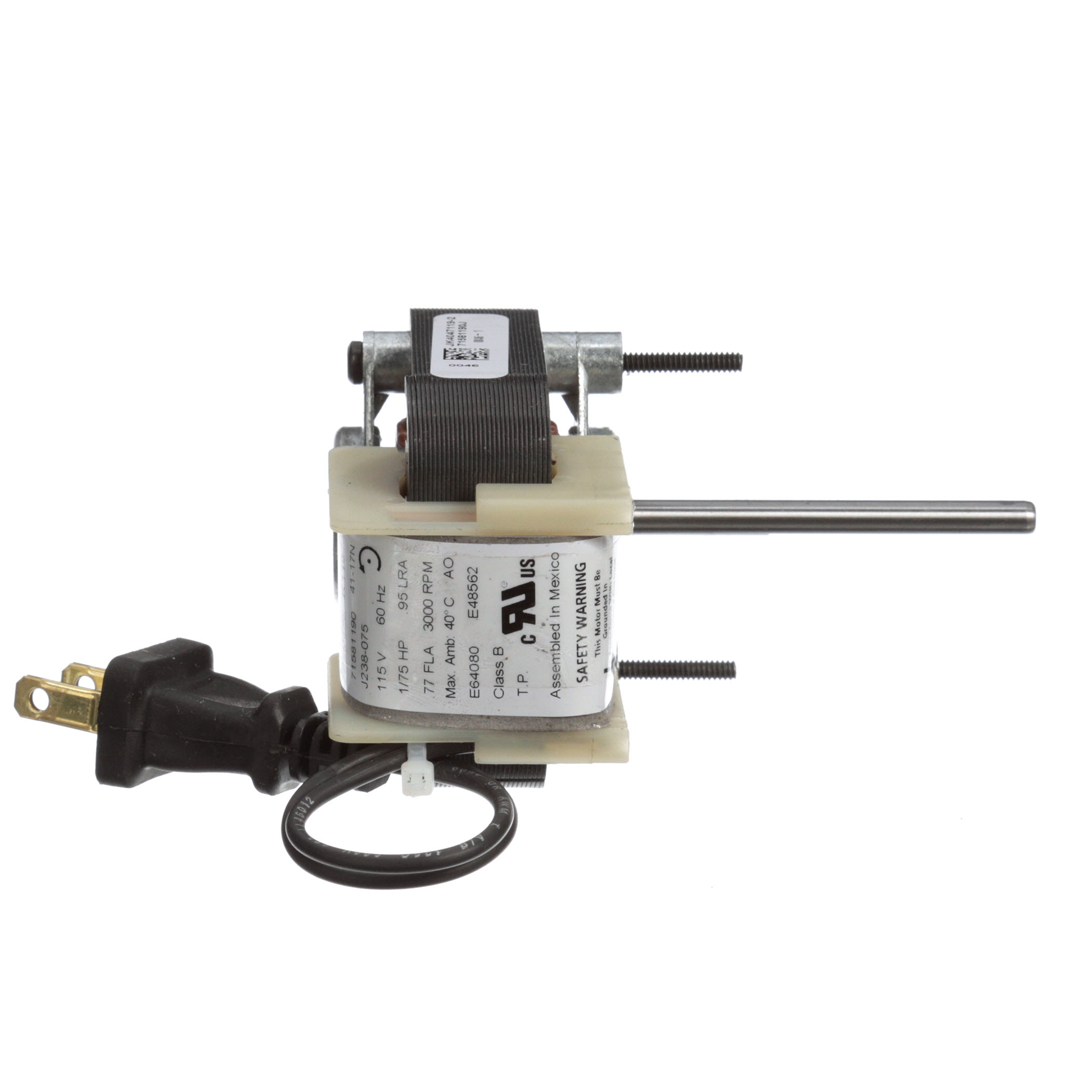

Fasco K110 1/75 HP 3000 RPM 115 Volts C-Frame Motor

Dreisilker SKU: FA-RBC-K110

(No reviews yet) Write a Review
Fasco K110 1/75 HP 3000 RPM 115 Volts C-Frame Motor
$36.40
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Fasco K110 1/75 HP 115 Volts 1 Speeds 3000 RPM CCW Rotation .2178 X 2.44 Shaft Dimension

Technical specifications

Brand

Fasco

Catalog Number

K110

Product Category

HVAC/R Motors > C-Frame / Skeleton Motors

HP

0.01

Volts

115

Frequency

60

Amps

0.77

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3000

Number of speeds

1

Number of Phases

1

Enclosure Type

Open

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

C-Frame

Frame Material

-

Shaft Diameter (In.)

0.218

Shaft Extension (In.)

2.44

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

4.22

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

FA#K110
