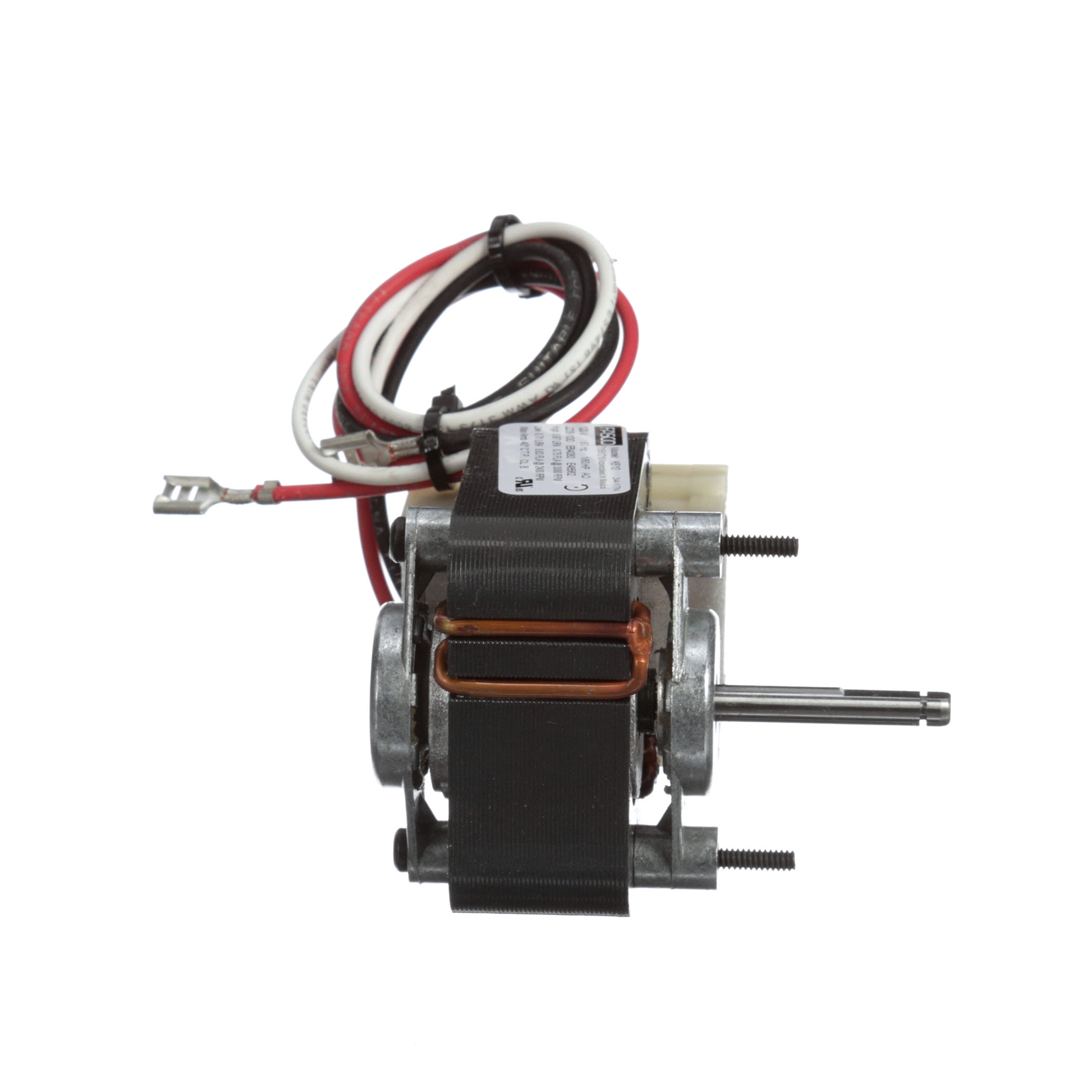

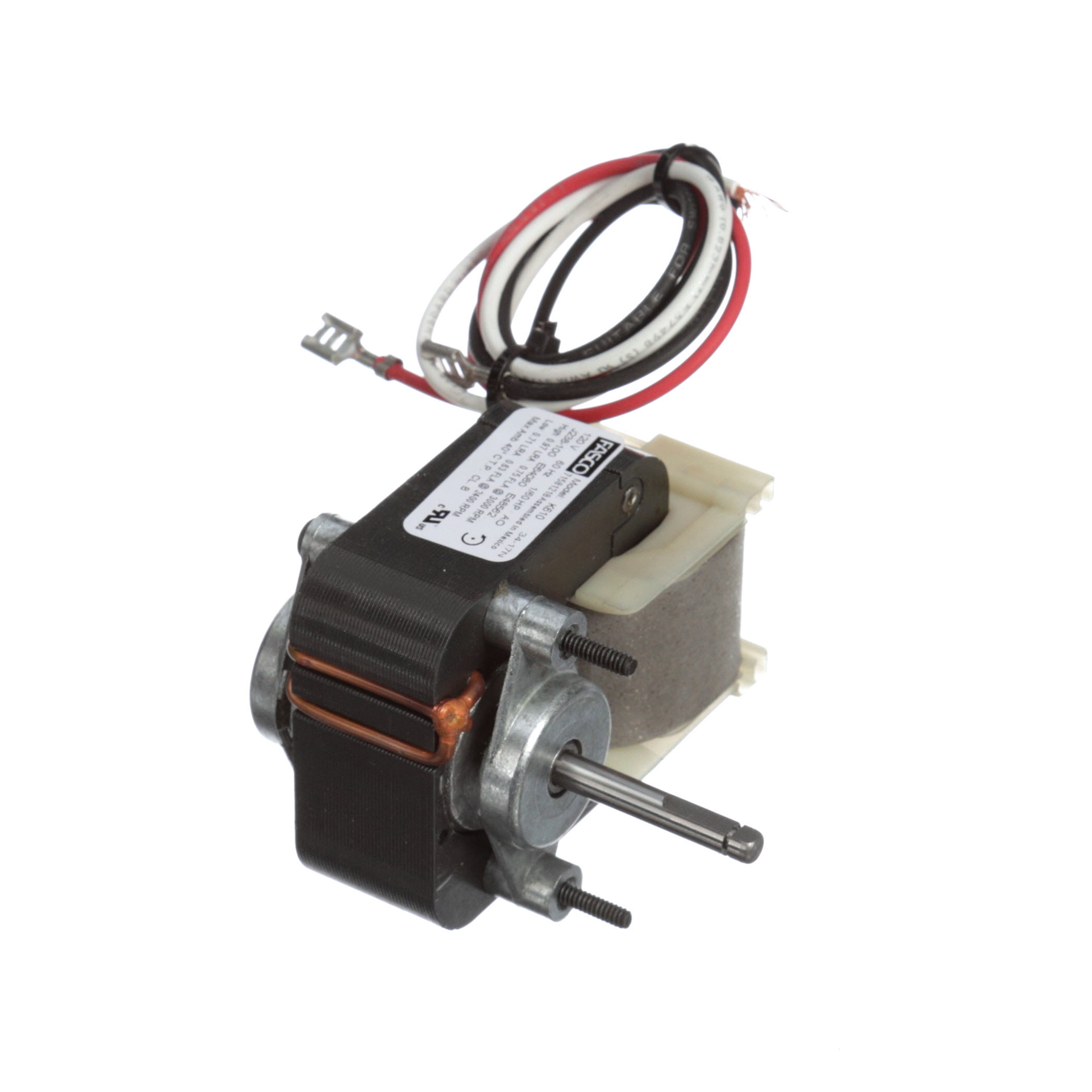

Fasco K610 1/60 HP 3000 RPM 120 Volts C-Frame Motor

Dreisilker SKU: FA-RBC-K610 | UPC: 818508021676

(No reviews yet) Write a Review
$58.50
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

3 units in stock

Marietta, GA (Atlanta)

1 units in stock

Crystal Lake, IL

7 units in stock

Fasco K610 Product Description

The Fasco K610 is a C-Frame Motor. Some of the specifications of the Fasco K610 C-Frame Motor include: Fasco K610 1/60 HP 3000 RPM 120 Volts C-Frame Motor. The warranty information for the Fasco K610 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco K610 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco K610 include the following: K610, 1/60 HP, 3000 RPM, 120 Volts, 1/60 HP 3000 RPM 120 Volts, 1/60 3000 120,FA#K610

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco K610 Technical specifications

Brand

Fasco

Catalog Number

K610

Product Category

HVAC/R Motors > C-Frame / Skeleton Motors

HP

1/60

Volts

120

Frequency

60

Amps

0.75-0.63

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3000

Speeds

2

Phase

1

Enclosure Type

Open

Rotation

Counterclockwise

Mounting Type

Extended Studs

Frame Type

C-Frame

Frame Material

-

Shaft Diameter

0.218 (in.)

Shaft Extension

1.33 (in.)

Shaft Type

Flat & Groove

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

3.34 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

FA#K610
