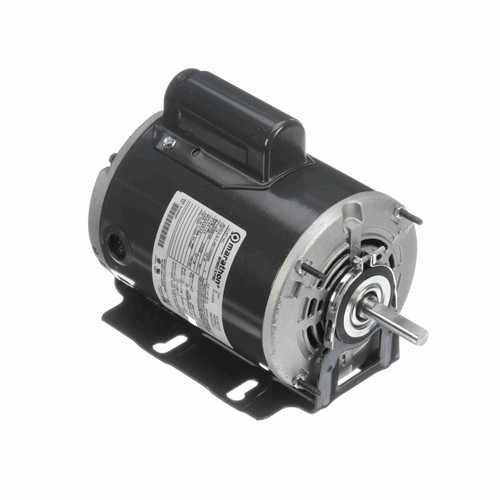

Marathon B315 1/3 HP 1725 RPM 115/208-230V Belt Drive Fan/Blower Motor

Dreisilker SKU: MA-RBC-B315 | UPC: 722856023155

(No reviews yet) Write a Review
Marathon B315 1/3 HP 1725 RPM 115/208-230 Volts Belt Drive Fan and Blower Motor
$363.06
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon B315 Product Description

The Marathon B315 motor is a belt drive fan and blower motor with a 1/3 horsepower rating and a speed of 1725 RPM. It operates on a voltage range of 115/208-230 volts. The motor's nameplate specifications also indicate that it is designed for use in fan and blower applications. Belt drive fan and blower motors are commonly used in HVAC systems, air handling units, exhaust fans, and other industrial and commercial applications that require the movement of air. These motors are designed to provide reliable and efficient performance, even in harsh environments and high-temperature conditions. In addition to their use in HVAC systems, belt drive fan and blower motors are also used in a variety of other applications, including: - Industrial ventilation systems - Dust collection systems - Cooling towers - Refrigeration systems - Agricultural ventilation systems Overall, the Marathon B315 motor is a versatile and reliable option for any application that requires the movement of air. Its nameplate specifications indicate that it is designed to provide efficient and long-lasting performance, making it a popular choice for a wide range of industrial and commercial applications.

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon B315 Technical specifications

Brand

Marathon

Catalog Number

B315

Product Category

HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors

HP

1/3

Volts

115/208-230

Frequency

60

Amps

5.8/3.1-2.9

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1725

Speeds

1

Phase

1

Enclosure Type

Drip Proof

Rotation

Selective Counterclockwise

Mounting Type

Resilient Base - Extended Studs

Frame Type

48Z

Frame Material

Rolled Steel

Shaft Diameter

1/2 (in.)

Shaft Extension

1.97 (in.)

Shaft Type

Single Special Extension

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

10.22 (in.)

Electrical Type

Capacitor Start Induction Run

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.35

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

22

KVA Code

J

DEM Reference

MA#B315
