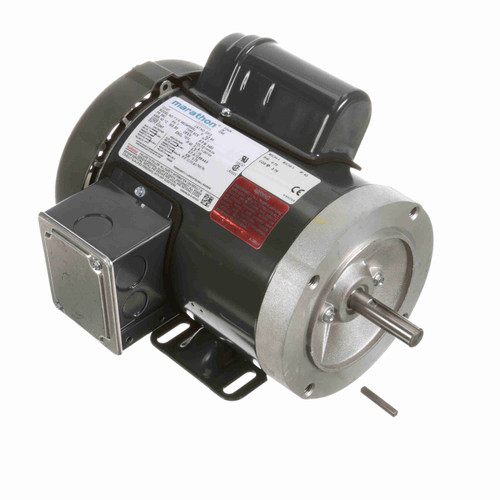

Marathon D313 1 HP 3600 RPM 115/208-230 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-D313 | UPC: 722856009418

(No reviews yet) Write a Review
$524.19
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon D313 Product Description

The Marathon D313 is a General Purpose Motor. Some of the specifications of the Marathon D313 General Purpose Motor include: Marathon D313 1 HP 3600 RPM 115/208-230 Volts 1 Phase 56C Frame TEFC. The warranty information for the Marathon D313 is the following: Marathon offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Marathon D313 Typically Ships Within 1 Business Day. Some additional keywords associated with the Marathon D313 include the following: D313,MA#D313

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon D313 Technical specifications

Brand

Marathon

Catalog Number

D313

Product Category

General Purpose NEMA General Purpose Single Phase Motors > Single Phase TEFC Motors

HP

1

Volts

115/208-230

Frequency

60

Amps

11.2/5.7-5.6

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3450

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Fan Cooled

Rotation

Selective Counterclockwise

Mounting Type

Bolt-on Base

Frame Type

56C

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

2.06 (in.)

Shaft Type

T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

12.31 (in.)

Electrical Type

Capacitor Start Induction Run

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

43

KVA Code

L

DEM Reference

MA#D313
