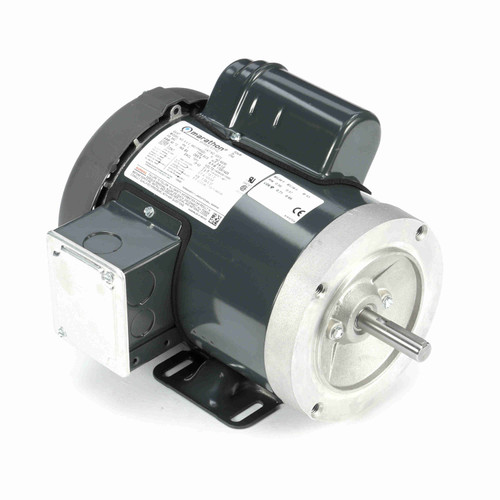

Marathon G572 3/4 HP 1800 RPM 115/208-230 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-G572 | UPC: 722856009470

(No reviews yet) Write a Review
$524.01
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marietta, GA (Atlanta)

1 units in stock

Marathon G572 Product Description

The Marathon G572 is a General Purpose Motor. Some of the specifications of the Marathon G572 General Purpose Motor include: Marathon G572 3/4 HP 1800 RPM 115/208-230 Volts 1 Phase 56C Frame TEFC. The warranty information for the Marathon G572 is the following: Marathon offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Marathon G572 Typically Ships Within 1 Business Day. Some additional keywords associated with the Marathon G572 include the following: G572,G572

Marathon G572 Technical specifications

Brand

Marathon

Catalog Number

G572

Product Category

General Purpose NEMA General Purpose Single Phase Motors > Single Phase TEFC Motors

HP

3/4

Volts

115/208-230

Frequency

60

Amps

11.0/5.4-5.5

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1725

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Fan Cooled

Rotation

Selective Counterclockwise

Mounting Type

Bolt-on Base

Frame Type

56C

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

2.06 (in.)

Shaft Type

NEMA 56

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

12.31 (in.)

Electrical Type

Capacitor Start Induction Run

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

43

KVA Code

L

DEM Reference

MA#G572
