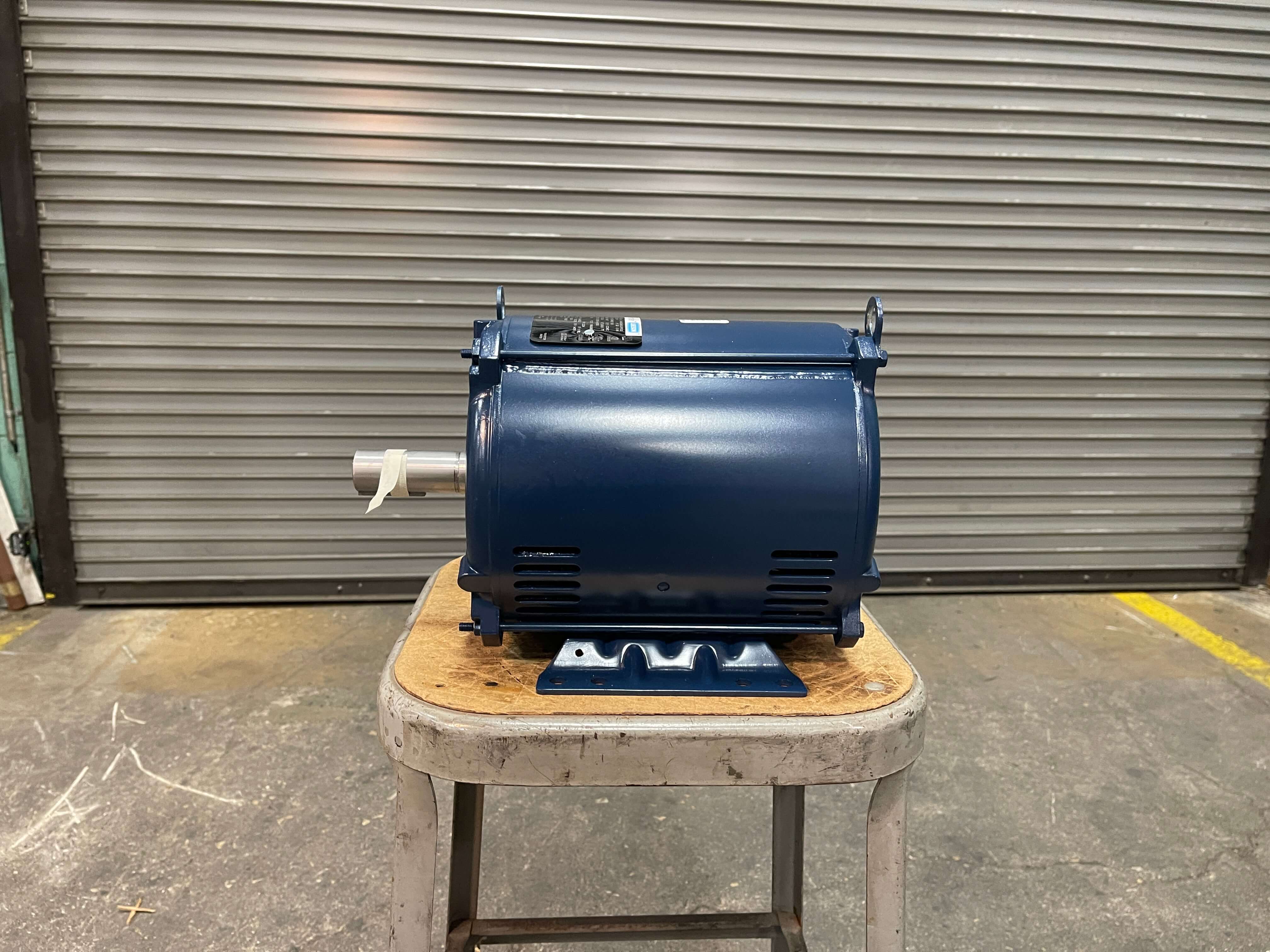

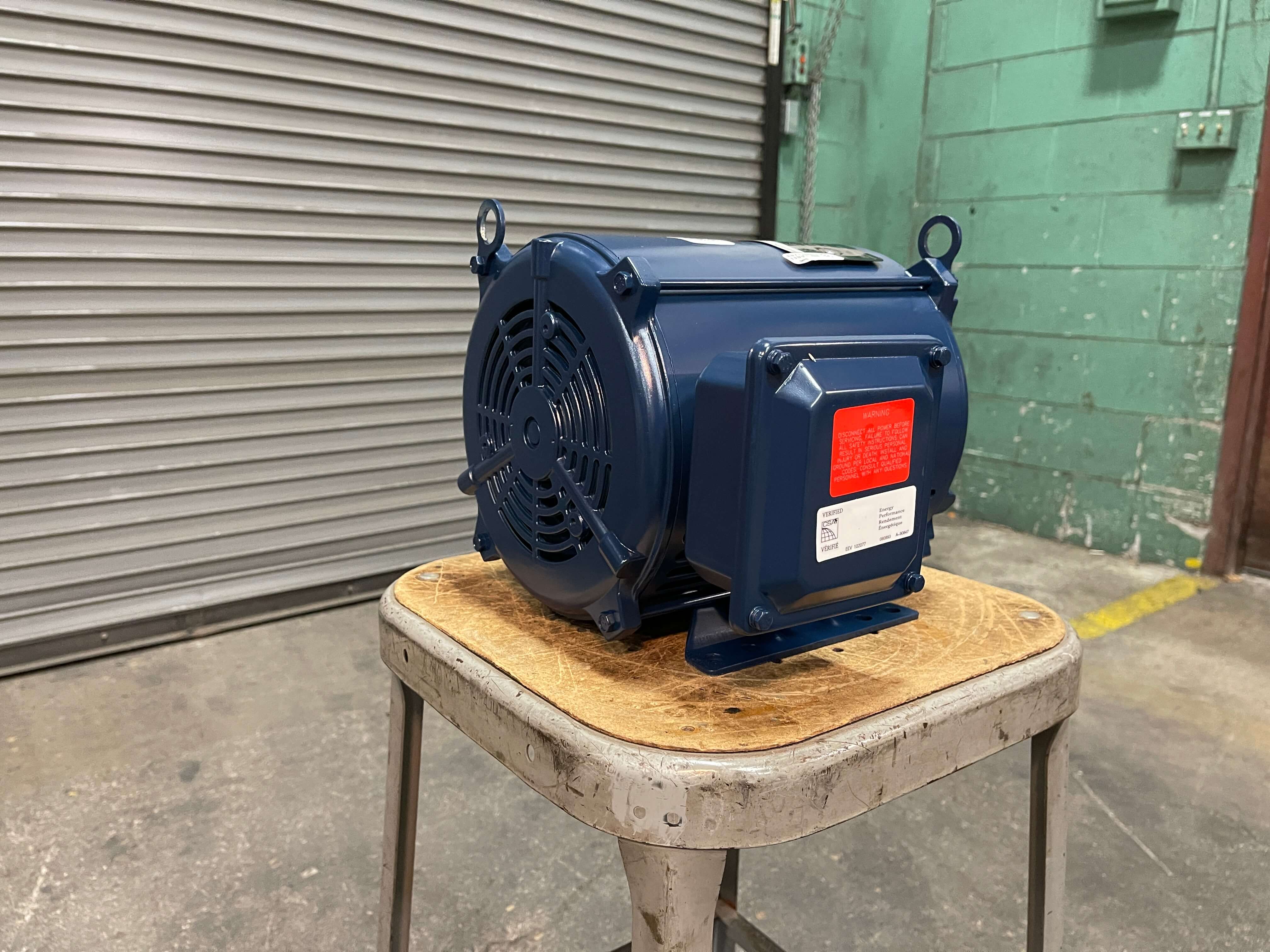

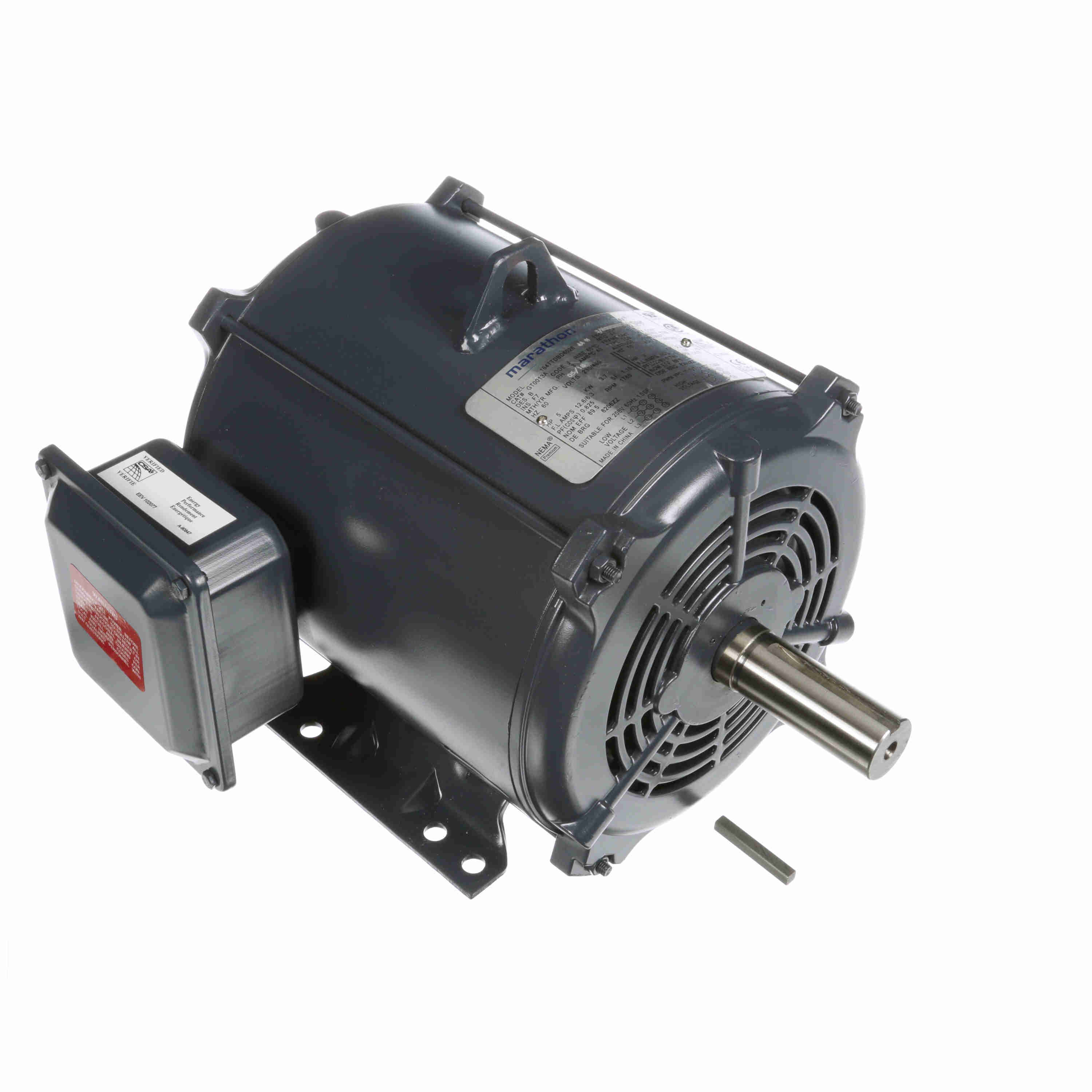

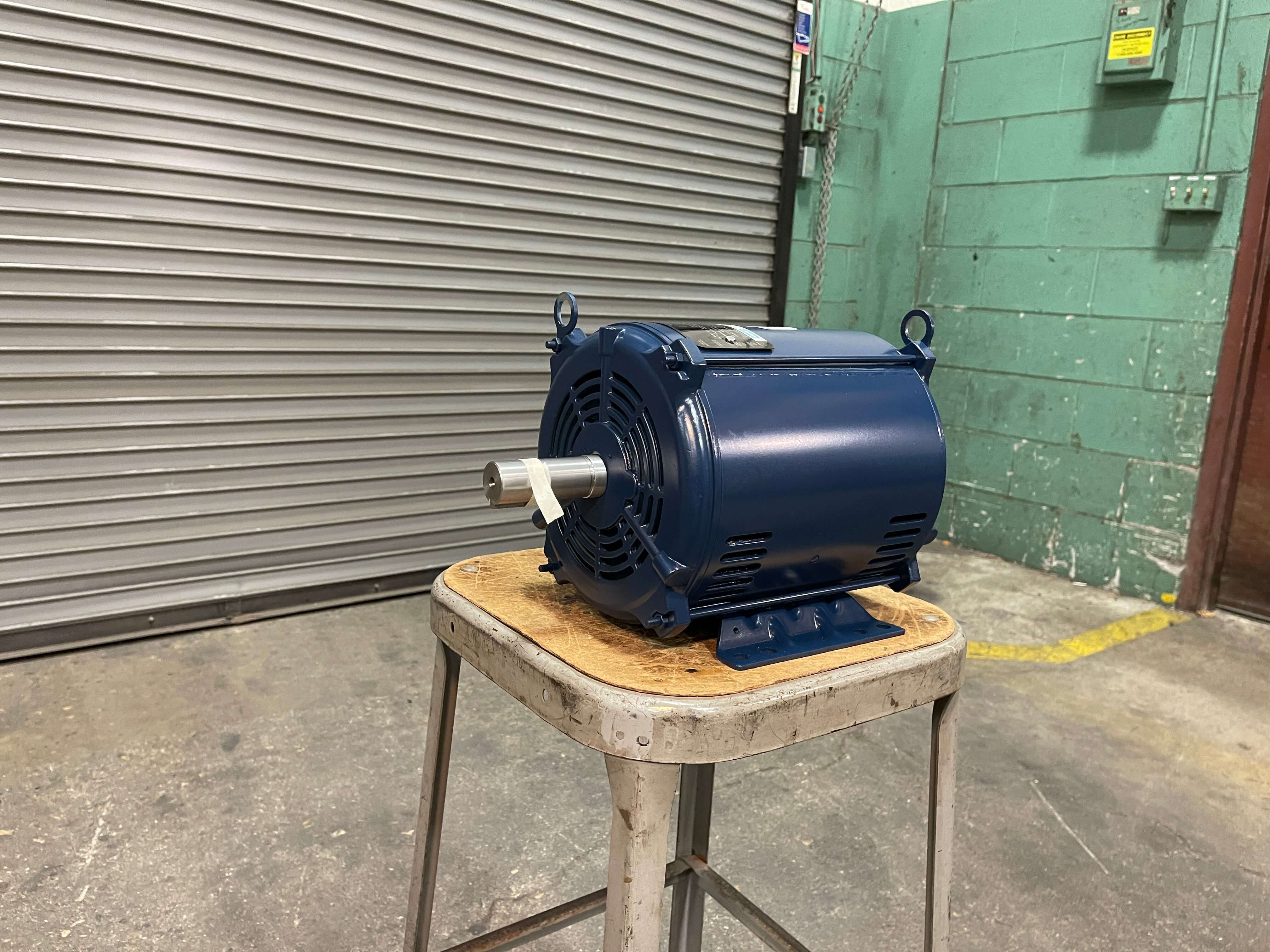

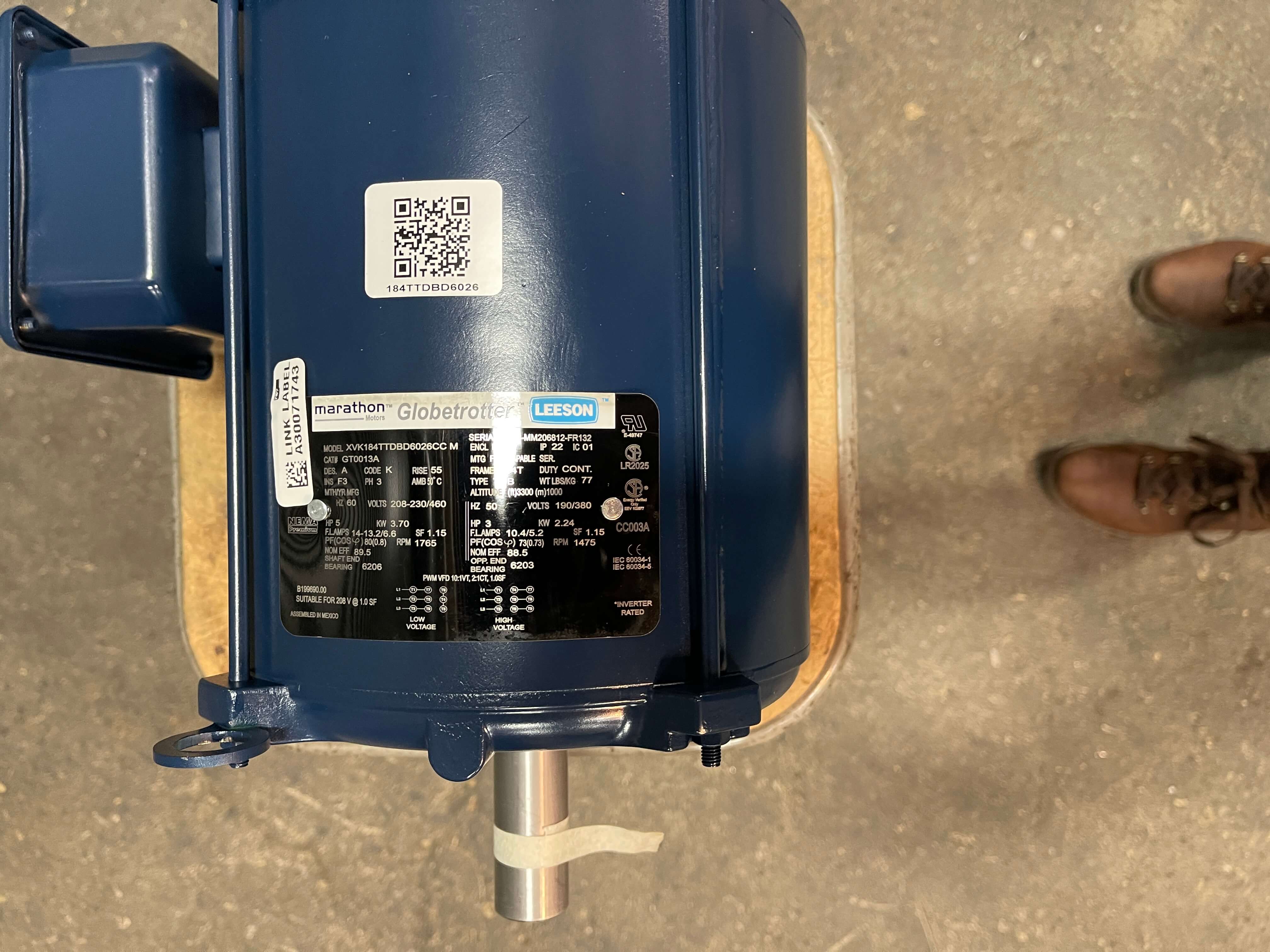

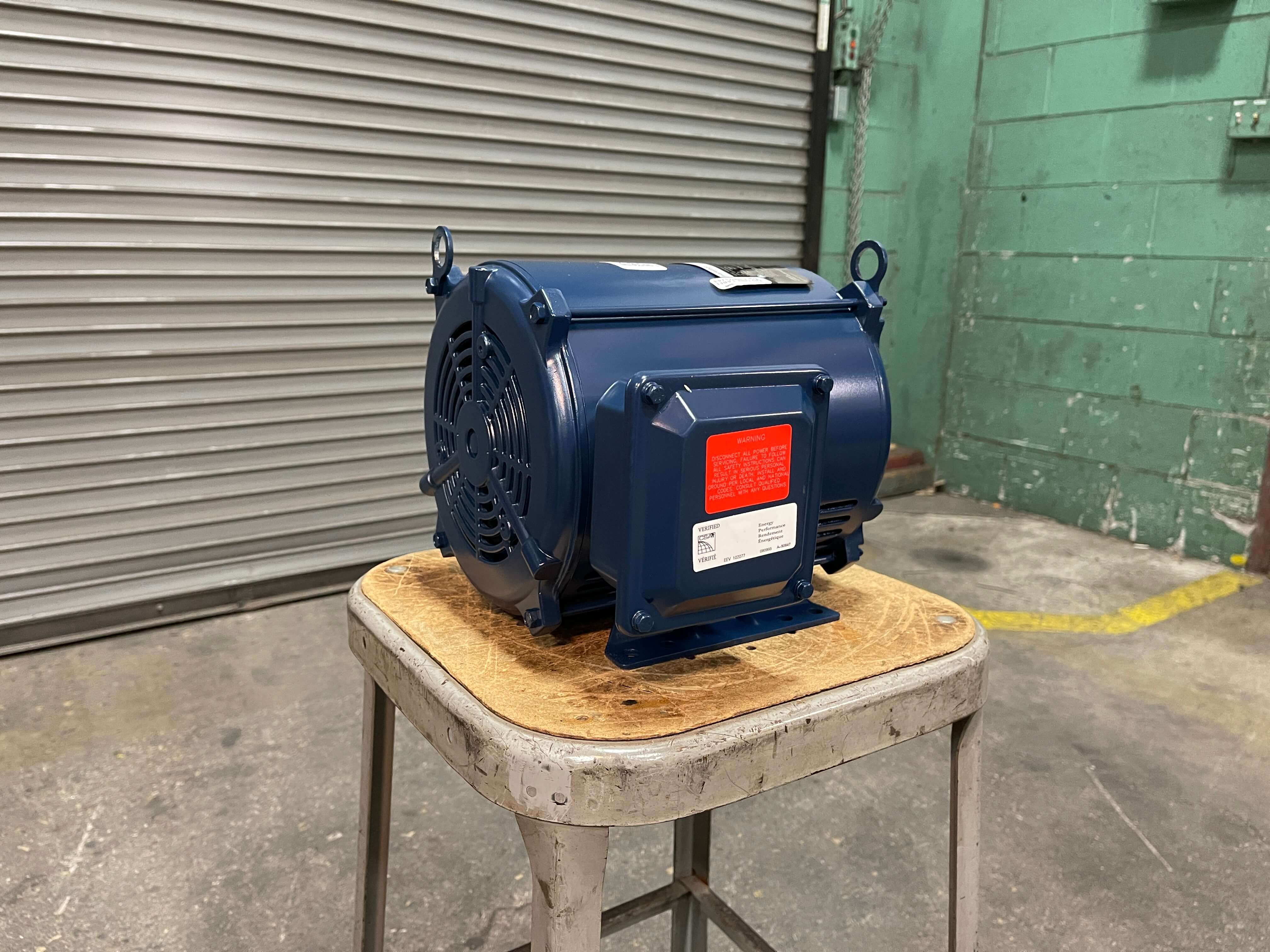

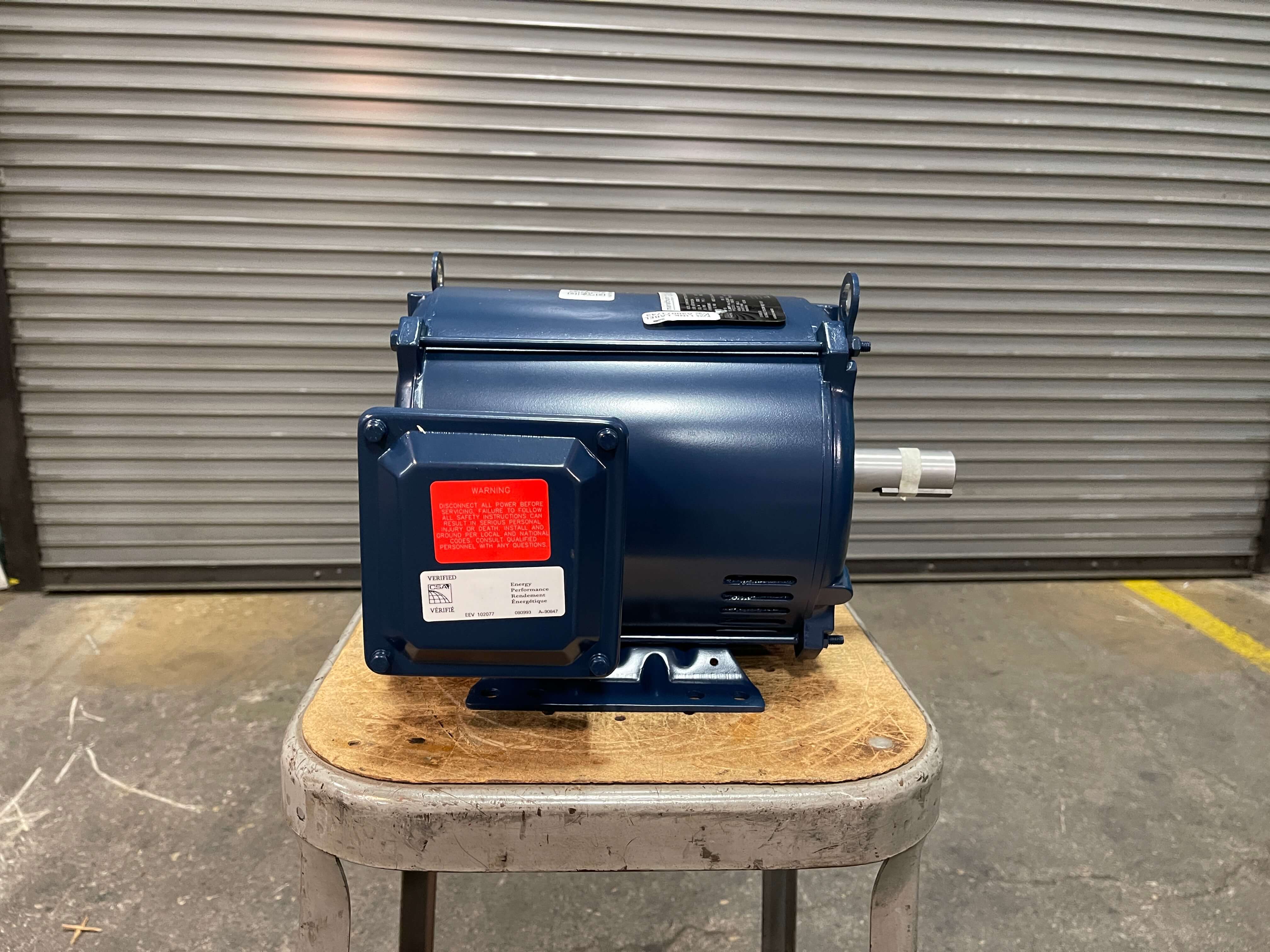

Marathon GT0013A 5 HP 1800 RPM 230/460 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-GT0013A | UPC: 722856068828

(No reviews yet) Write a Review
Marathon GT0013A 5 HP 1800 RPM 230/460 Volts General Purpose Motor
$796.21

Reliable general purpose motor

Top seller, trusted by many

Model number: 184TTDBD6026

Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Marathon GT0013A Product Description

The Marathon Globetrotter GT0013A is a powerful and versatile general purpose motor that is perfect for a variety of applications. This 5 HP motor is designed to meet the highest standards of quality and durability, so you can trust it to provide long-lasting performance. It features a 60 Hz frequency, 208-230/460 V voltage, 1800 RPM speed, and 184T frame size. With its many impressive features, the Marathon Globetrotter GT0013A is the perfect choice for your next project.

The Marathon GT0013A replaces the Marathon GT0013 motor.

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon GT0013A Technical specifications

Brand

Marathon

Catalog Number

GT0013A

Product Category

General Purpose NEMA General Purpose Three Phase Motors > Three Phase ODP Motors

HP

5

Volts

208-230/460

Frequency

60

Amps

14.0-13.2/6.6

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1765

Speeds

1

Phase

3

Enclosure Type

Drip Proof

Rotation

Reversible

Mounting Type

Rigid Base

Frame Type

184T

Frame Material

Rolled Steel

Shaft Diameter

1-1/8 (in.)

Shaft Extension

2.75 (in.)

Shaft Type

T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

13.25 (in.)

Electrical Type

Squirrel Cage Inverter Rated

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

F

Max Ambient

50°C

UL

Recognized

CE

Y

CSA

Y

IP Code

22

KVA Code

K

DEM Reference

NOHP
