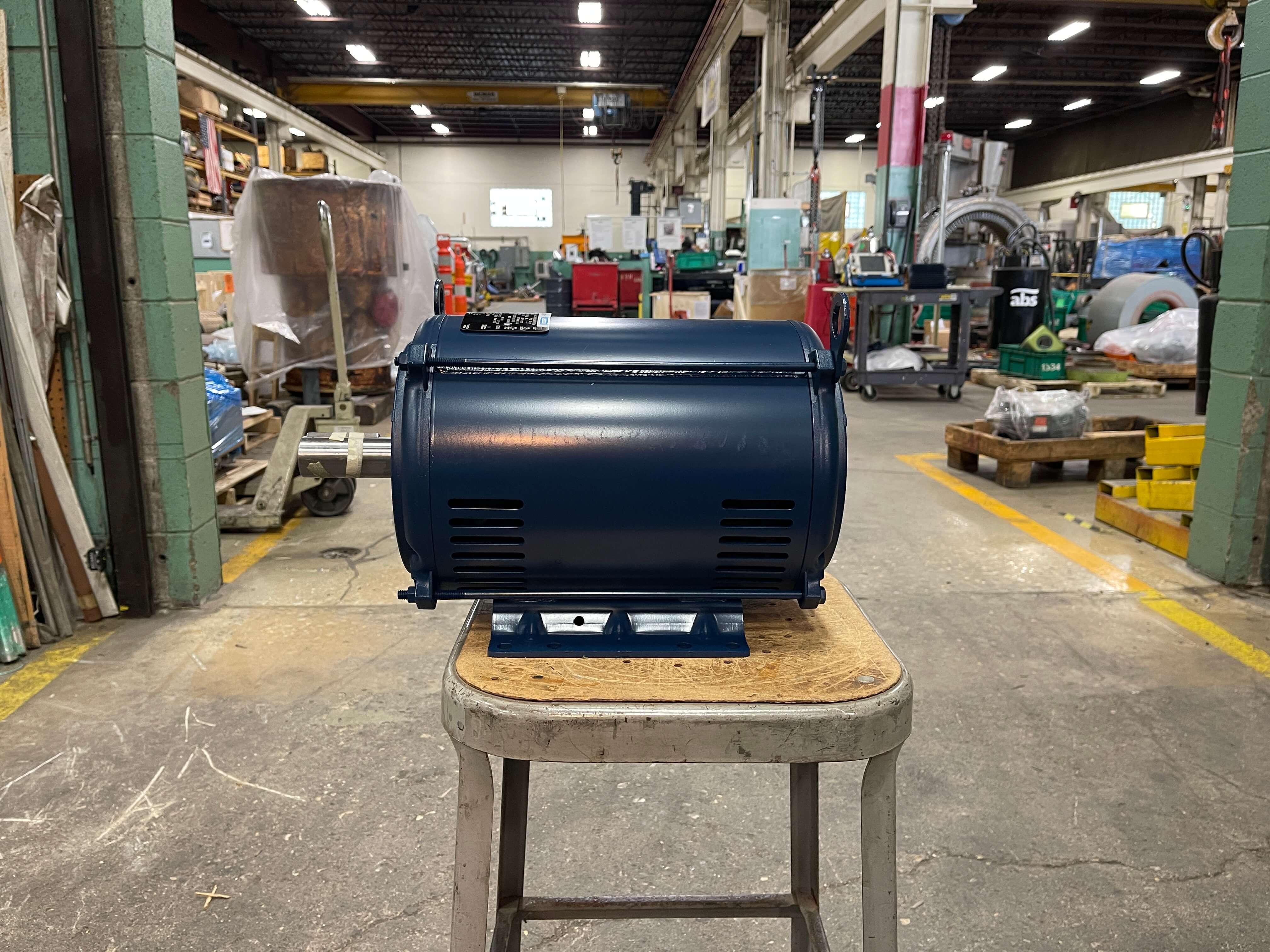

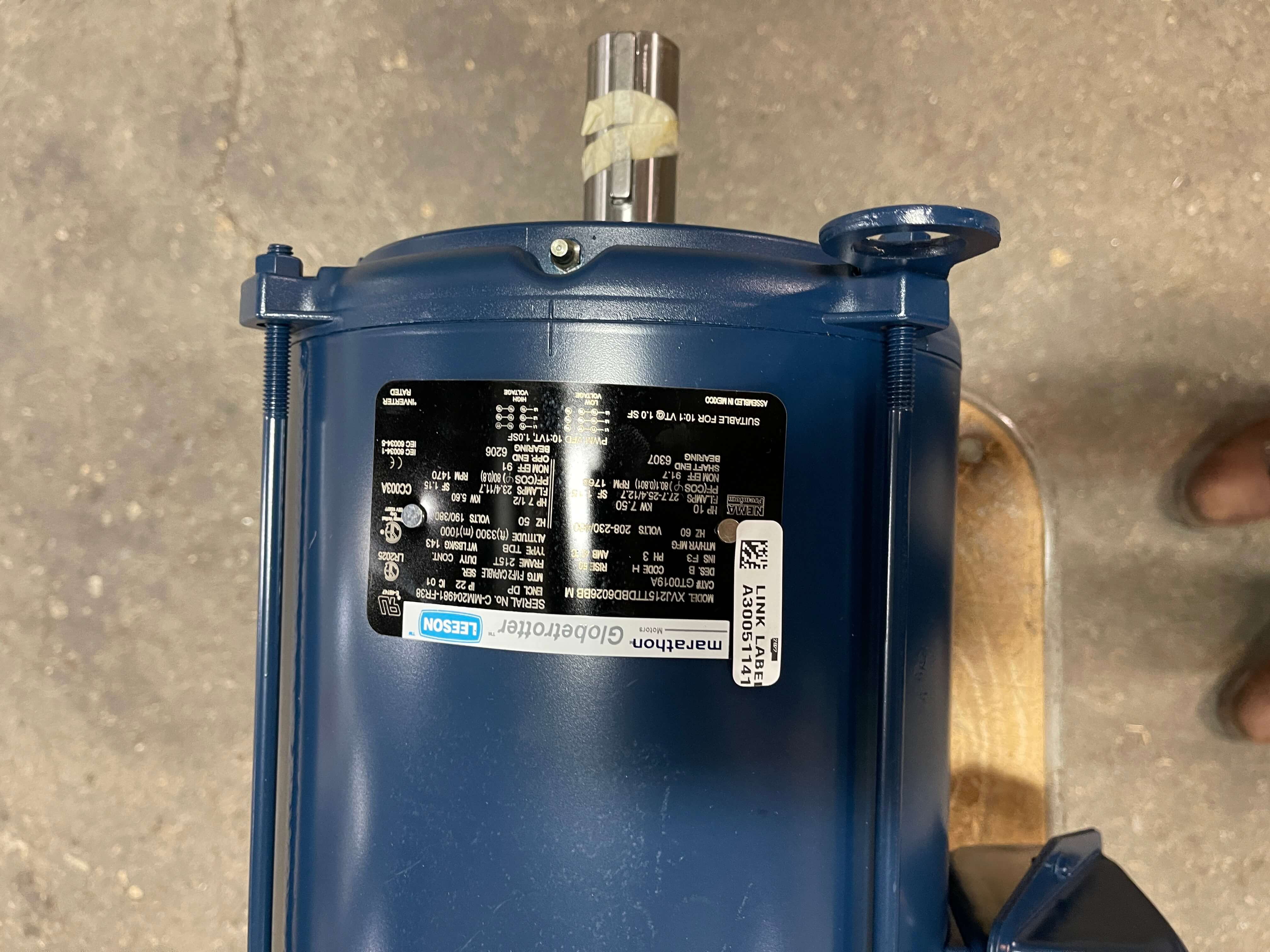

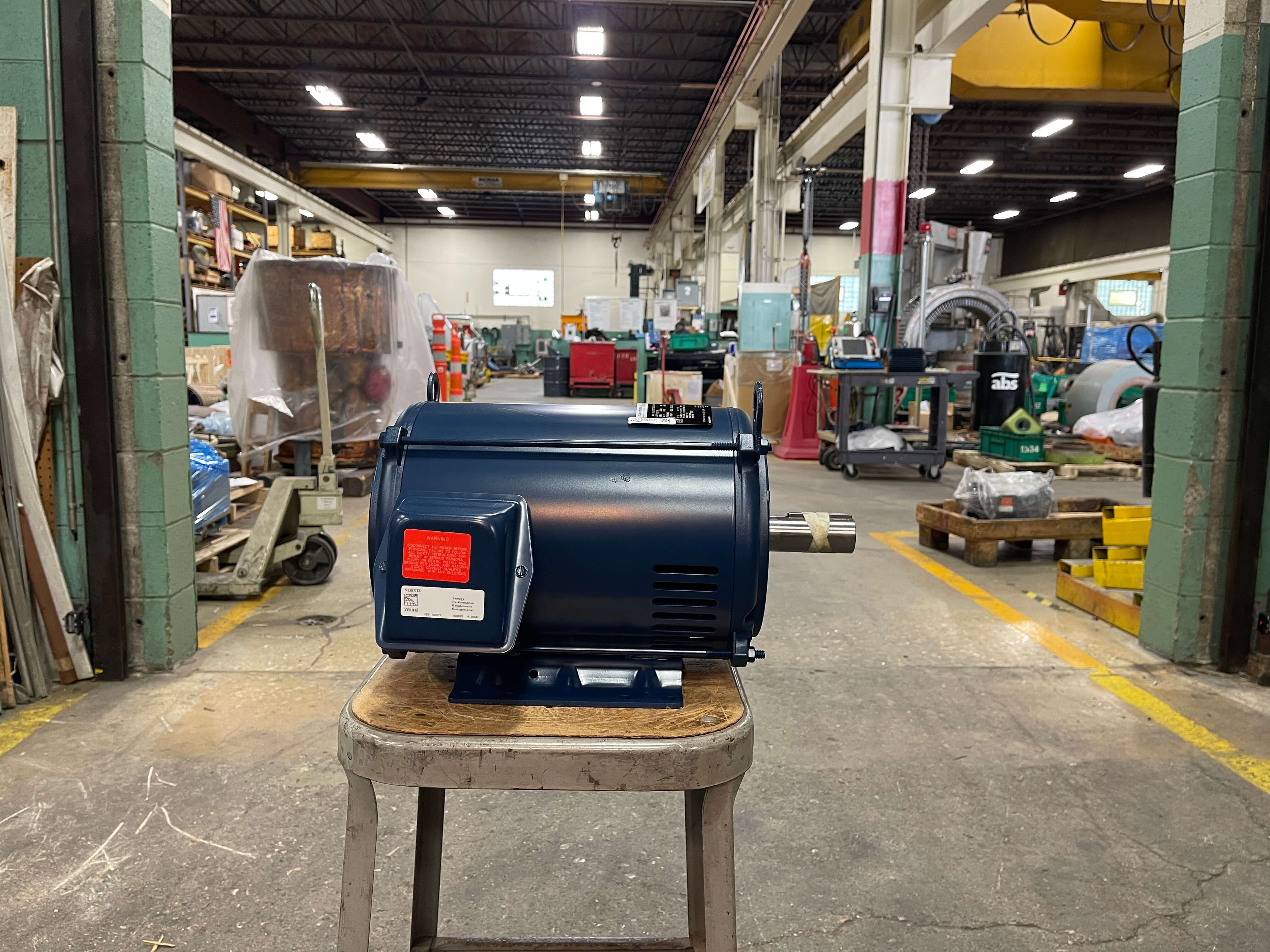

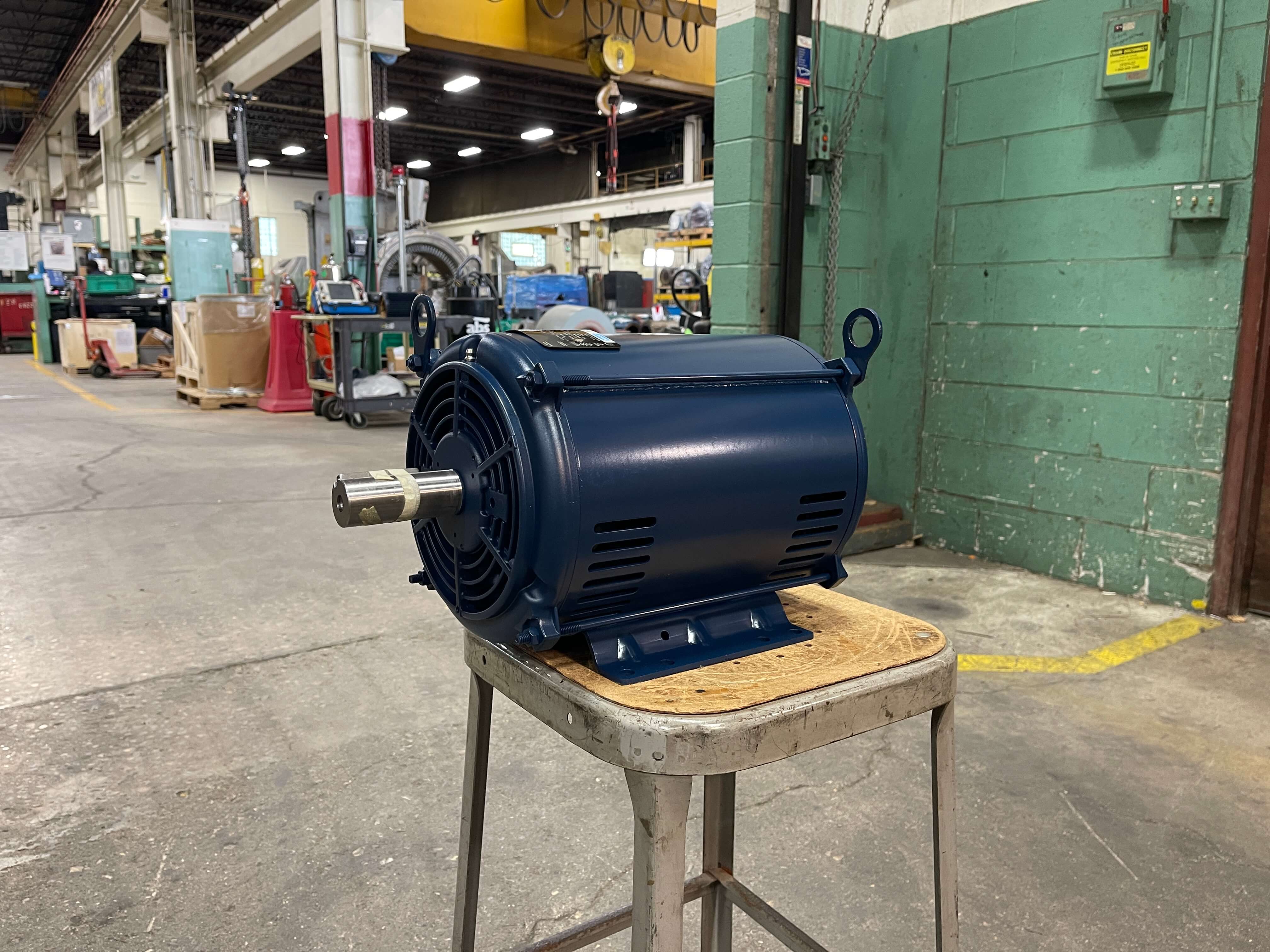

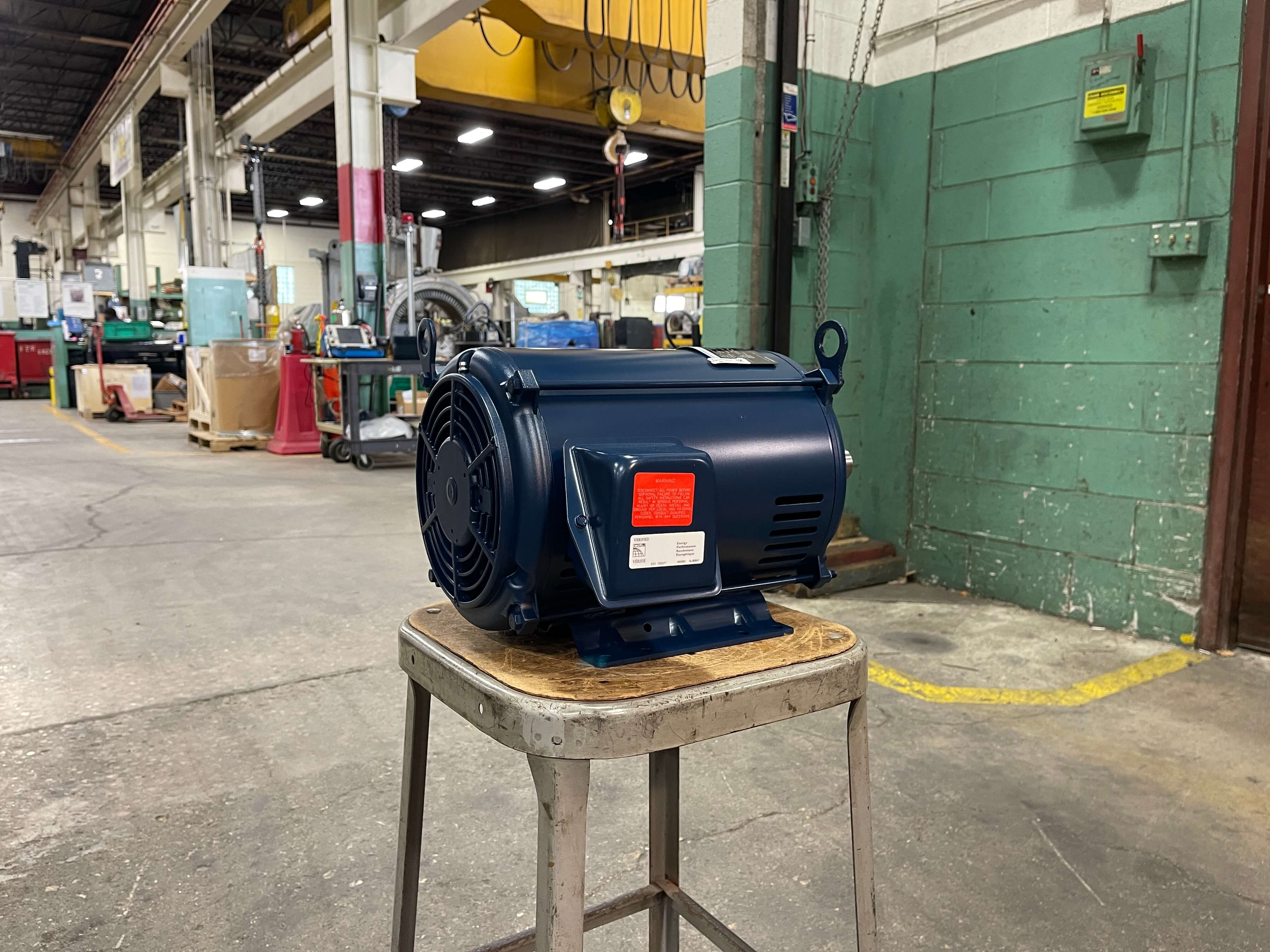

Marathon GT0019A 10 HP 1800 RPM 230/460 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-GT0019A | UPC: 722856060259

(No reviews yet) Write a Review
$934.74

Reliable general purpose motor

Top seller, trusted by many

Model number: 215TTDBD6026

Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marathon GT0019A Product Description

The Marathon Globetrotter GT0019A is a versatile and reliable general purpose motor that is trusted by many customers for a variety of applications. This 10 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 215T Frame motor is manufactured to the highest standards by Marathon, so you can be sure you are receiving a great quality product that will last for many years. The Marathon GT0019A replaces the GT0019 motor and is an excellent choice for your application. If you have any questions or need assistance making your decision, our team of motor experts is here to help. Contact us today and we'll be happy to assist you.

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon GT0019A Technical specifications

Brand

Marathon

Catalog Number

GT0019A

Product Category

General Purpose NEMA General Purpose Three Phase Motors > Three Phase ODP Motors

HP

10

Volts

208-230/460

Frequency

60

Amps

27.7-25.4/12.7

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1768

Speeds

1

Phase

3

Enclosure Type

Drip Proof

Rotation

Reversible

Mounting Type

Rigid Base

Frame Type

215T

Frame Material

Rolled Steel

Shaft Diameter

1-3/8 (in.)

Shaft Extension

3.38 (in.)

Shaft Type

T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

17.52 (in.)

Electrical Type

Squirrel Cage Inverter Rated

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

F

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

22

KVA Code

H

DEM Reference

MA#GT0019A
