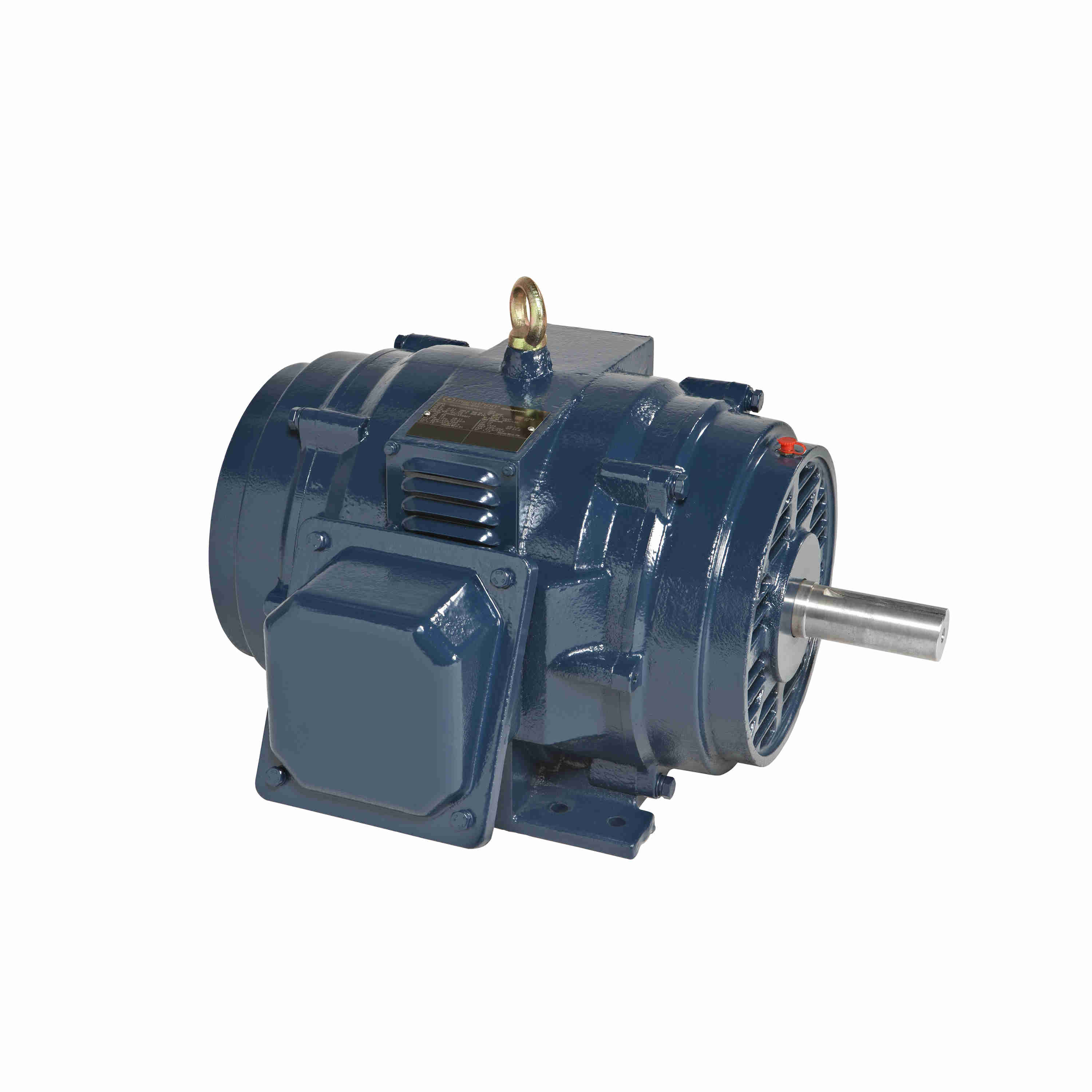

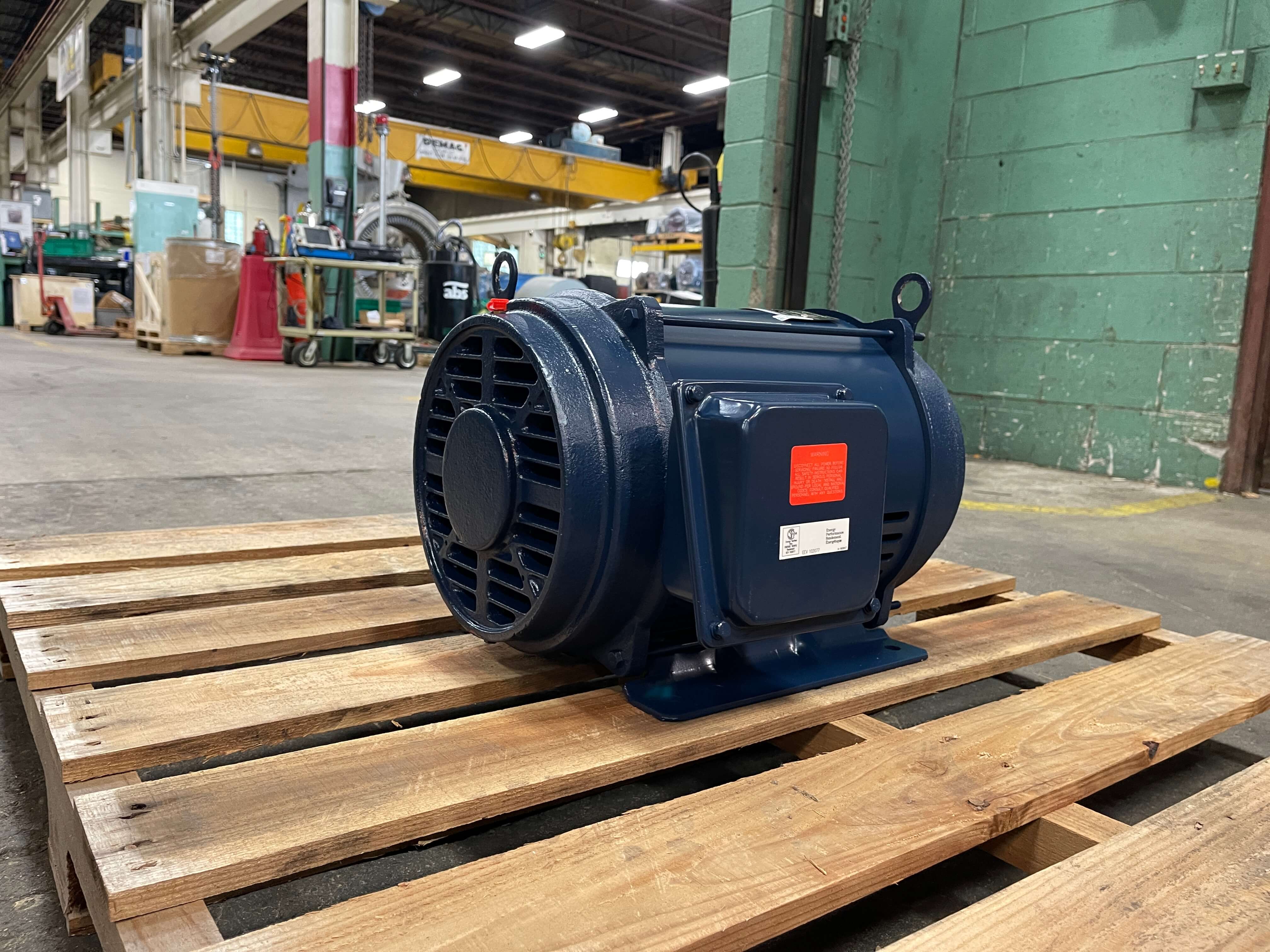

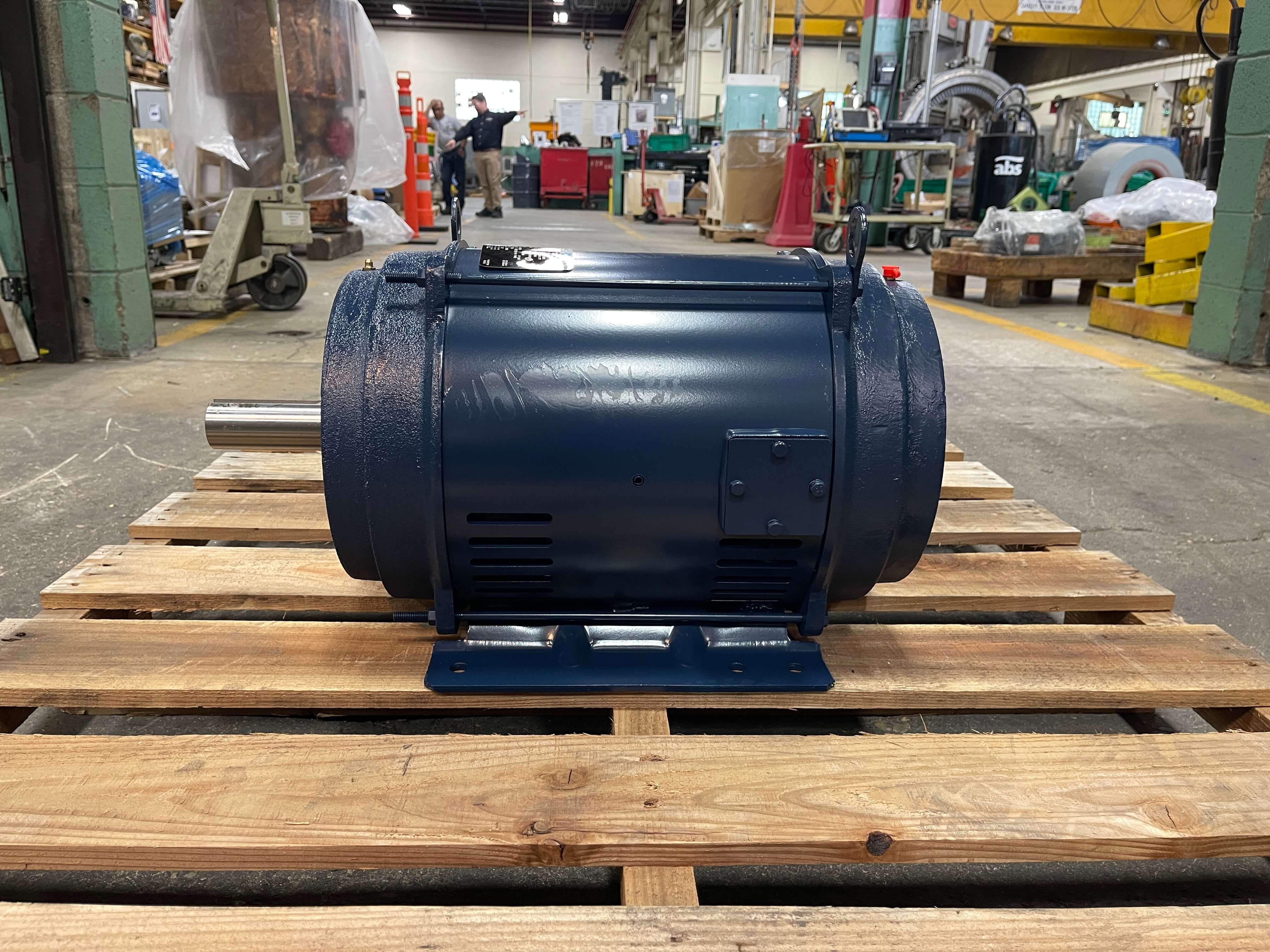

Marathon GT0059 15 HP 1800 RPM 230/460 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-GT0059 | UPC: 722856060402

(No reviews yet) Write a Review
$1,469.12

Reliable general purpose motor

Top seller, trusted by many

Model number: 254TTDBD6026

Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

13 units in stock

Marietta, GA (Atlanta)

6 units in stock

Alsip, IL

1 units in stock

Elk Grove Village, IL

1 units in stock

Crystal Lake, IL

2 units in stock

Marathon GT0059 Product Description

The Marathon Globetrotter GT0059 General Purpose Motor is a top quality, versatile product that can be trusted for a variety of applications. This 15 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 254T Frame motor is manufactured using the highest standards so that you can be sure it is durable and long lasting. We keep this motor in stock so that our customers will have minimal downtime. If you have any questions about whether or not this motor is the right choice for your application, our experts are always happy to help you make the best decision.

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon GT0059 Technical specifications

Brand

Marathon

Catalog Number

GT0059

Product Category

General Purpose NEMA General Purpose Three Phase Motors > Three Phase ODP Motors

HP

15

Volts

208-230/460

Frequency

60

Amps

40.5-37.5/18.8

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1774

Speeds

1

Phase

3

Enclosure Type

Drip Proof

Rotation

Selective Clockwise

Mounting Type

Rigid Base

Frame Type

254T

Frame Material

Rolled Steel

Shaft Diameter

1-5/8 (in.)

Shaft Extension

4 (in.)

Shaft Type

T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

22.64 (in.)

Electrical Type

Squirrel Cage Inverter Rated

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

No

Insulation Class

F

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

22

KVA Code

G

DEM Reference

MA#GT0059
