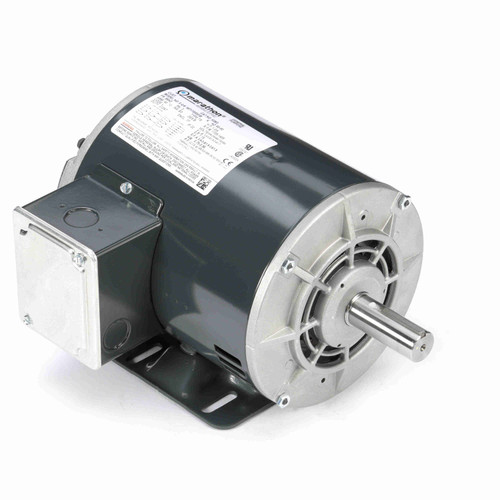

Marathon K063 1 HP 1800 RPM 208-230/460 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-K063 | UPC: 722856010230

(No reviews yet) Write a Review
$533.61
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

3 units in stock

Chicago, IL (Grand Ave.)

1 units in stock

Marietta, GA (Atlanta)

3 units in stock

Alsip, IL

1 units in stock

Elk Grove Village, IL

3 units in stock

Crystal Lake, IL

1 units in stock

Marathon K063 Product Description

The Marathon K063 is a General Purpose Motor. Some of the specifications of the Marathon K063 General Purpose Motor include: Marathon K063 1 HP 1800 RPM 208-230/460 Volts 3 Phase 56HZ Frame ODP. The warranty information for the Marathon K063 is the following: Marathon offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Marathon K063 Typically Ships Within 1 Business Day. Some additional keywords associated with the Marathon K063 include the following: K063,K063

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Marathon K063 Technical specifications

Brand

Marathon

Catalog Number

K063

Product Category

General Purpose NEMA General Purpose Three Phase Motors > Three Phase ODP Motors

HP

1

Volts

208-230/460

Frequency

60/50

Amps

3.4-3.6/1.8

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1725

Speeds

1

Phase

3

Enclosure Type

Drip Proof

Rotation

Reversible

Mounting Type

Rigid Base

Frame Type

56HZ

Frame Material

Rolled Steel

Shaft Diameter

5/8 (in.)

Shaft Extension

2.28 (in.)

Shaft Type

NEMA 145T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

10.99 (in.)

Electrical Type

Squirrel Cage Induction Run

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.15

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

22

KVA Code

L

DEM Reference

MA#K063
